Launchable projectiles and launchers for the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 5, 2015
Issued Date -
N/A
app pub date -
Mar 15, 2013
filing date -
Mar 15, 2013
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

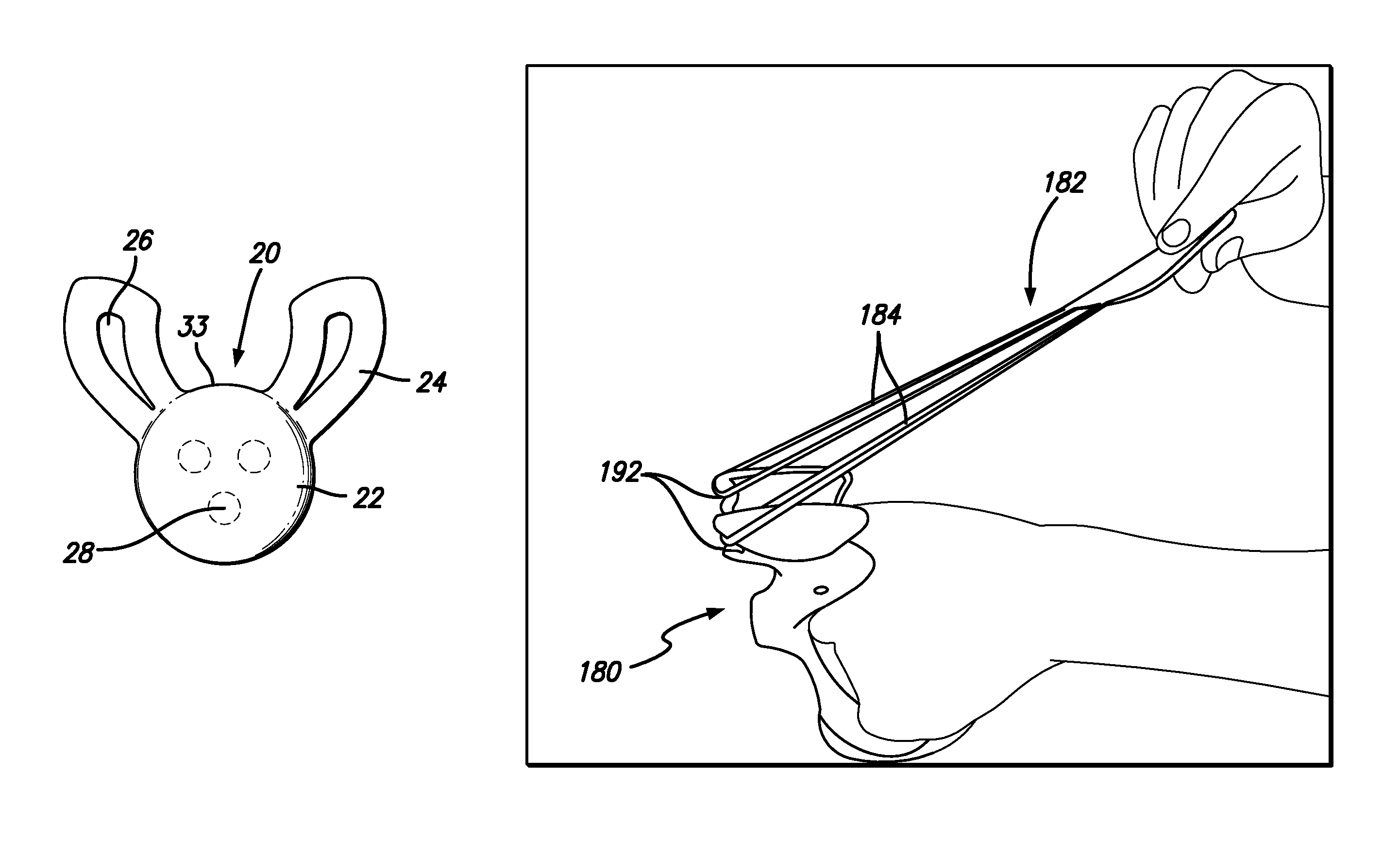

A projectile for launching through the air comprises a body and one or more projecting members integral therewith extending outwardly a distance from the body, which can be hollow or solid. The projectile is formed from an elastomeric material capable of being stretched to energize the projectile for launching. The projecting members are positioned a distance apart from one another and include openings disposed therethrough at distal ends for engaging sections of a launching device. The launching device includes a handle with the sections extending outwardly therefrom to accommodate placement of the projectile openings thereagainst for retaining the projectile before and during launch. The projectile is launched from the device by pulling the body away from the launching device to energize the projectile, and then releasing the energized projectile, causing it to be propelled from the launching device into the air and towards a desired target.
