Configurable actuation-orientation valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 28, 2015
Issued Date -
N/A
app pub date -
May 5, 2011
filing date -
May 5, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

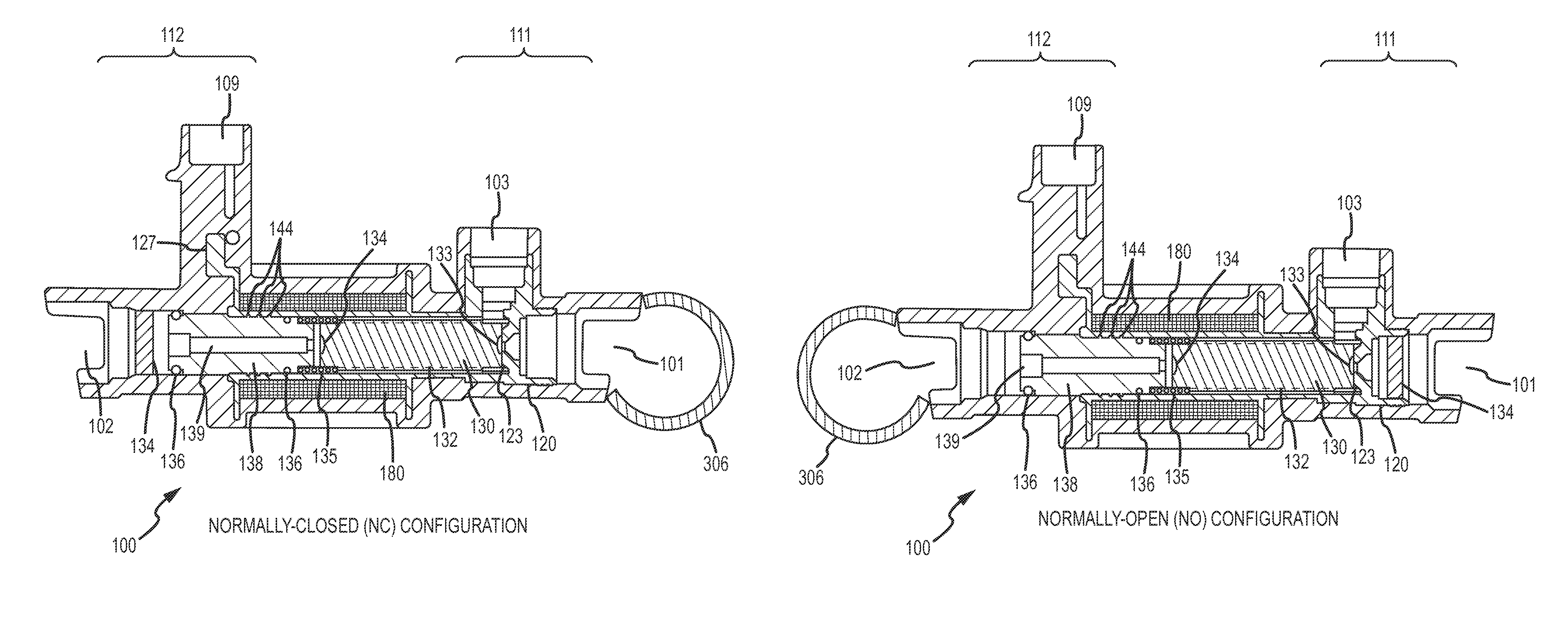

A configurable actuation-orientation valve (100) includes a valve body (120) including a valve bore (126) and a coil (180), a first port (101) and a third port (103) located at a first end (111) and a second port (102) located at a second end (112), a pole piece (138), an armature (130) configured to move in response to energization of the coil (180), and a biasing device (135) between the pole piece (138) and the armature (130). When the biasing device (135) is selected to provide a normally-closed biasing force to the armature (130) then the configurable actuation-orientation valve (100) comprises a normally-closed (NC) valve and when the biasing device (135) is selected to provide a normally-open biasing force to the armature (130) then the configurable actuation-orientation valve (100) comprises a normally-open (NO) valve.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16K Class
- 15.93 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 28, 2026 |
