MEMS electrostatic display
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 14, 2015
Grant Date -
N/A
app pub date -
Sep 20, 2012
filing date -
Sep 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

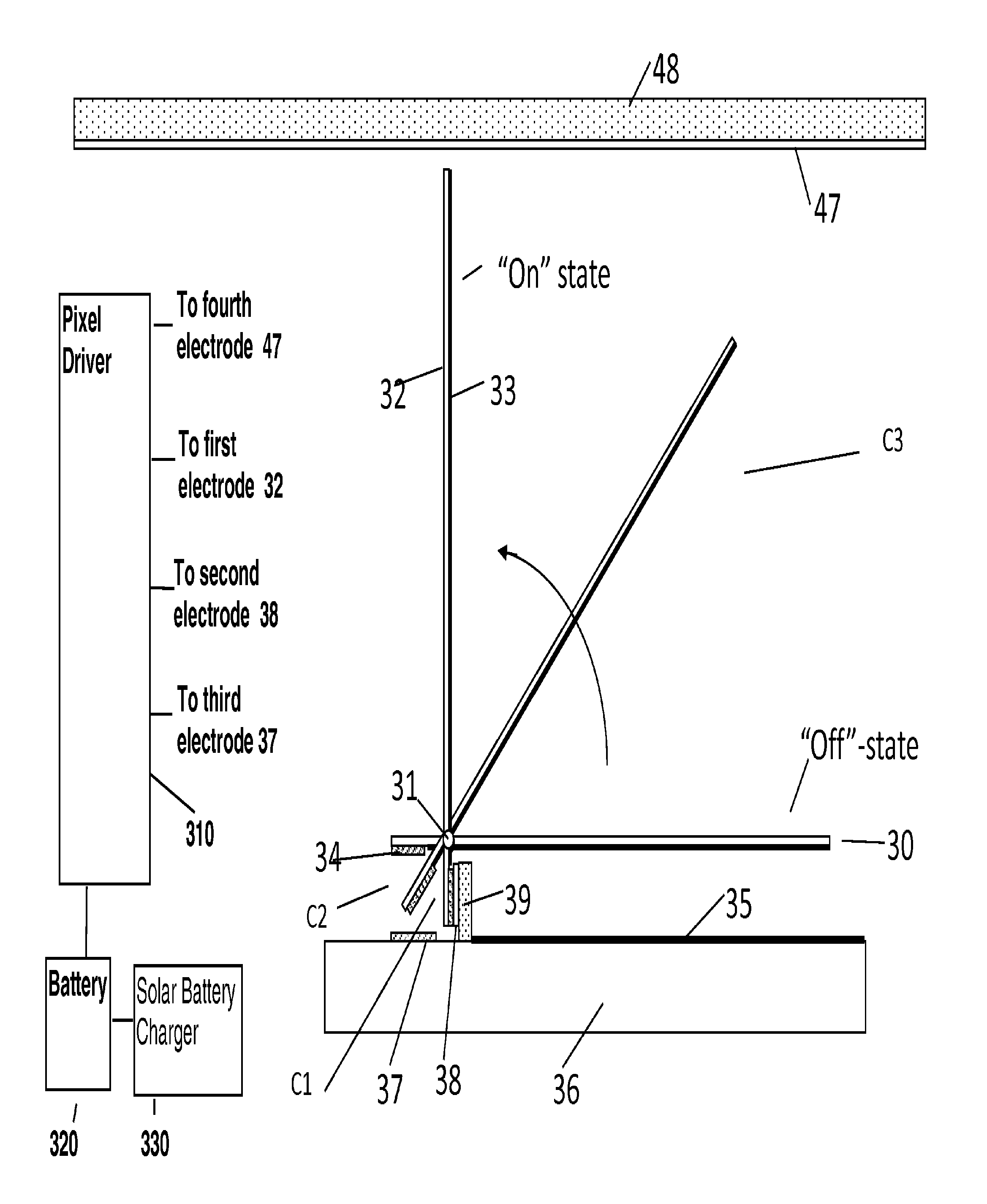

An electrostatic display employing MEMS (Micro-Electro-Mechanical System) technology is disclosed. The transition from white to black pixel color occurs as two cantilevers covering the pixel area are electrostatically turned from their position parallel to the substrate plane to the position normal to the substrate plane. Four electrode pixel control circuits are used to form row and column matrix. This matrix employs a bi-stability effect resulting from the difference in voltages needed to move the cantilever into an upright position and hold the cantilever in this position.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G09G Class
- 10.86 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 14, 2026 |
