Current source circuit with temperature compensation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 14, 2015
Grant Date -
Oct 10, 2013
app pub date -
Apr 5, 2013
filing date -
Apr 5, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

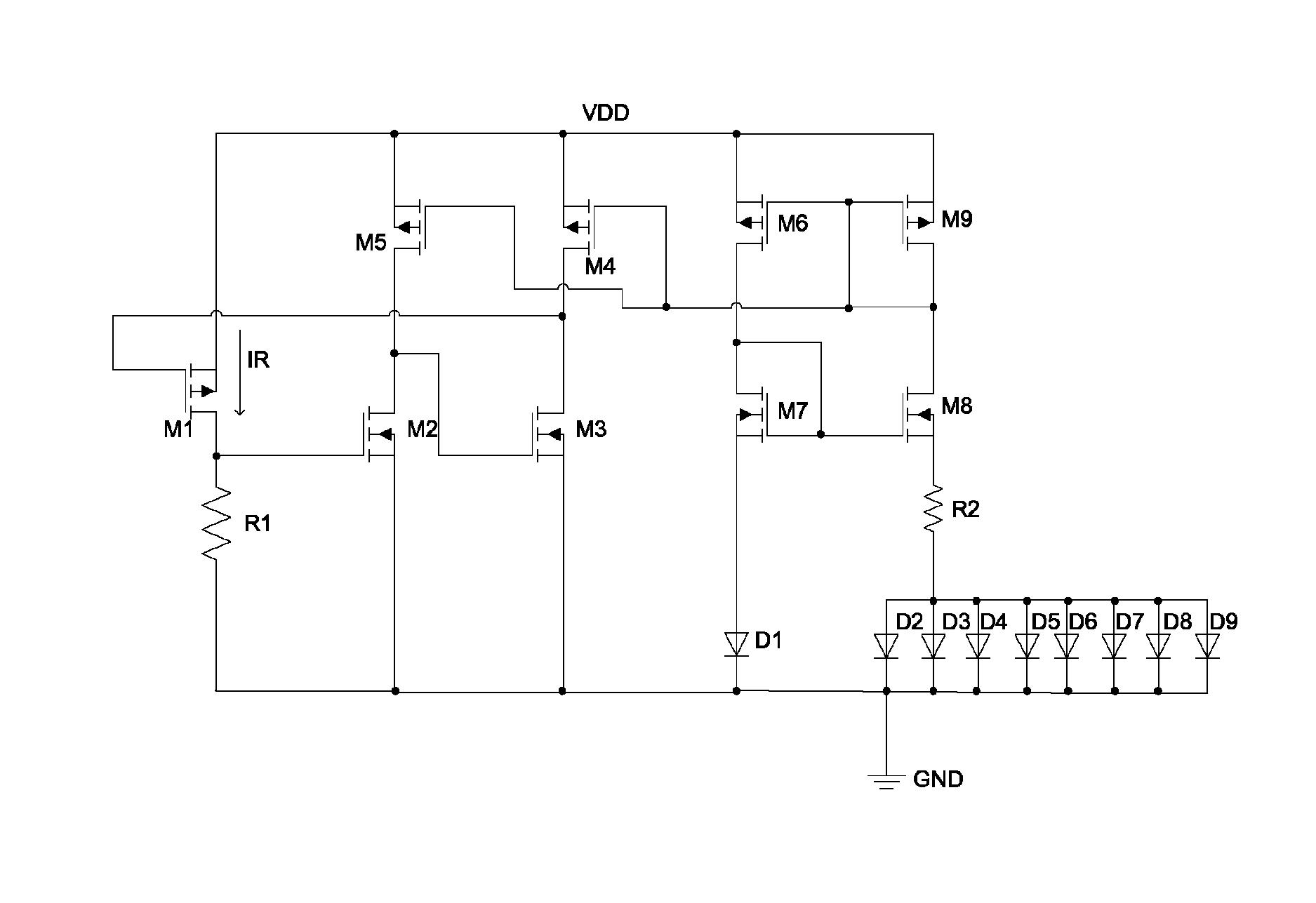

A current source circuit with temperature compensation includes a power supply terminal, a reference current source unit connected to the power supply terminal, a feedback control unit connected to the power supply terminal and the reference current source unit, a current source generating unit connected to the feedback control unit and a ground terminal connected to the current source generating unit. The reference current source unit is a current source connected to the power supply terminal. The feedback control unit includes a first switching element, connected to the current source, and an inverting amplifier, connected between the current source and the first switching element. The current source generating unit includes a second switching element, connected to the first switching element, the current source and the inverting amplifier, and a first resistor, connected to the first and the second switching elements and the ground terminal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G05F Class
- 1215 Applications Filed
- 1038 Patents Issued To-Date
- 85.44 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G05F Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 14, 2026 |
