Vessel having extensions for supporting swim platform and concealing outboard engines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 14, 2015
Grant Date -
Jun 27, 2013
app pub date -
Dec 19, 2012
filing date -
Dec 22, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

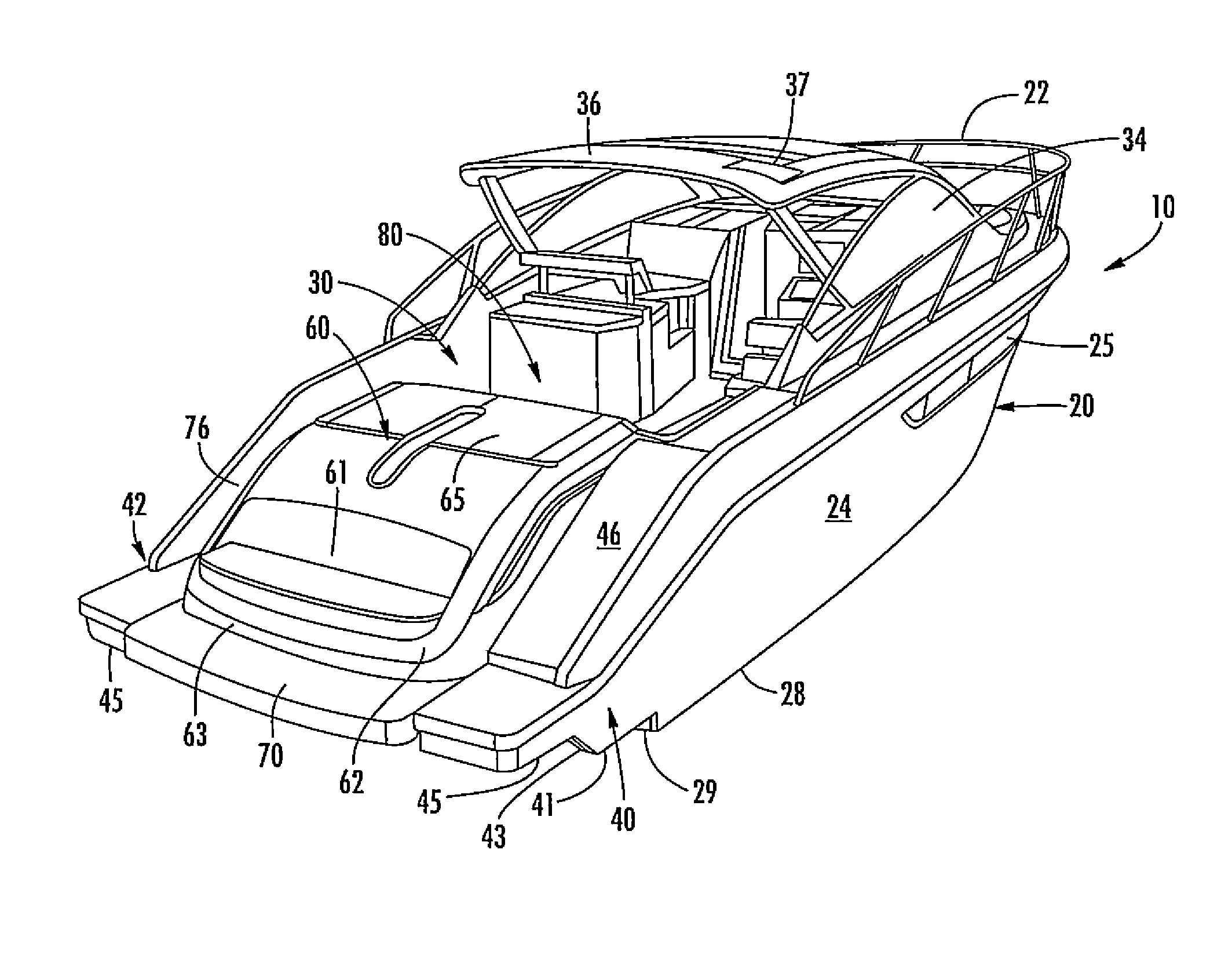

A vessel, including a transom for mounting outboard engines thereto, is spanned on opposite sides by aft-facing hull extensions which extend beyond the engines and allow a swim platform to be positioned between the hull extensions. The design allows the outboard engines to be covered with an engine cover, which provides an attractive vessel design in which the outboard engines can be concealed with a cover, which may serve other functions, such as a seat or the like. The cover houses an engine cowl mist shield which includes a support frame surrounding one or more outboard engines. The frame includes aperture(s) with edges spaced from the cowl and a flexible member extending from the edges to the cowl below the air intake of the cowl, such that spray and mist from the operation of the vessel does not reach the air intake of the cowl.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B63H Class
- 275 Applications Filed
- 232 Patents Issued To-Date
- 84.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 16 Citation Count
- B63H Class
- 88.58 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 14, 2026 |
