Cover structure of machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 14, 2015
Grant Date -
Aug 8, 2013
app pub date -
Nov 20, 2012
filing date -
Feb 2, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

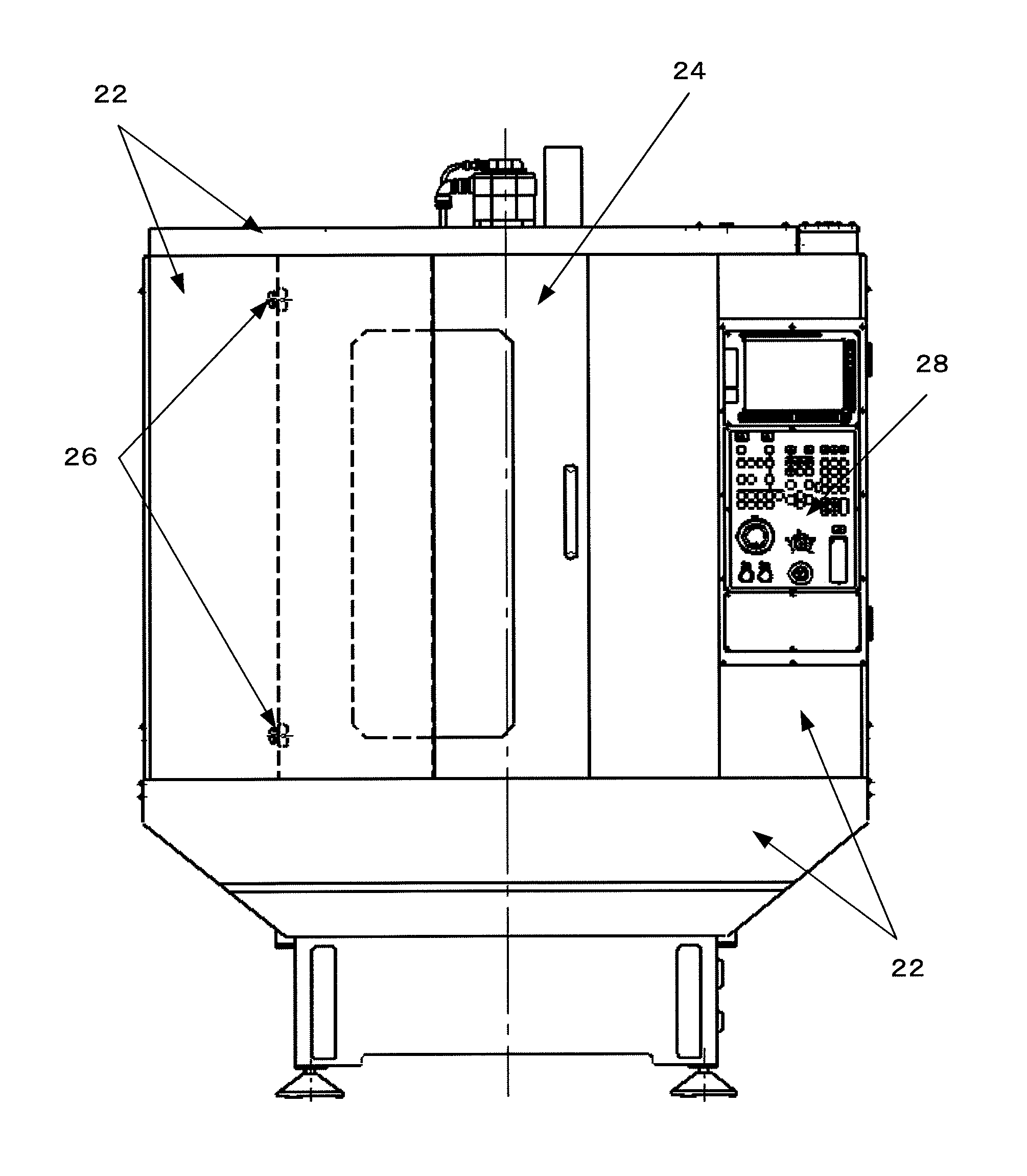

A cover structure of a machine tool, including a fixed cover for isolating the inside portion of the machine tool from the outside, the inside portion serving as a machining space, and a one-side opening type slide door for opening and closing an opening portion formed in the fixed cover, includes a stop structure portion for, when the slide door is closed, stopping the slide door at a predetermined distance away from the end surface of the opening portion of the fixed cover. The stop structure portion is provided on a portion of the slide door other than the closing-direction-side end surface of the slide door, or at a portion of the fixed cover other than the slide-door-closing-side end surface of the opening portion of the fixed cover.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F16P Class
- 39 Applications Filed
- 28 Patents Issued To-Date
- 71.80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16P Class
- 20 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 14, 2026 |
