Labelling machine for labels printed on pre-pasted continuous film
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 7, 2015
Grant Date -
Sep 20, 2012
app pub date -
Nov 24, 2010
filing date -
Dec 2, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

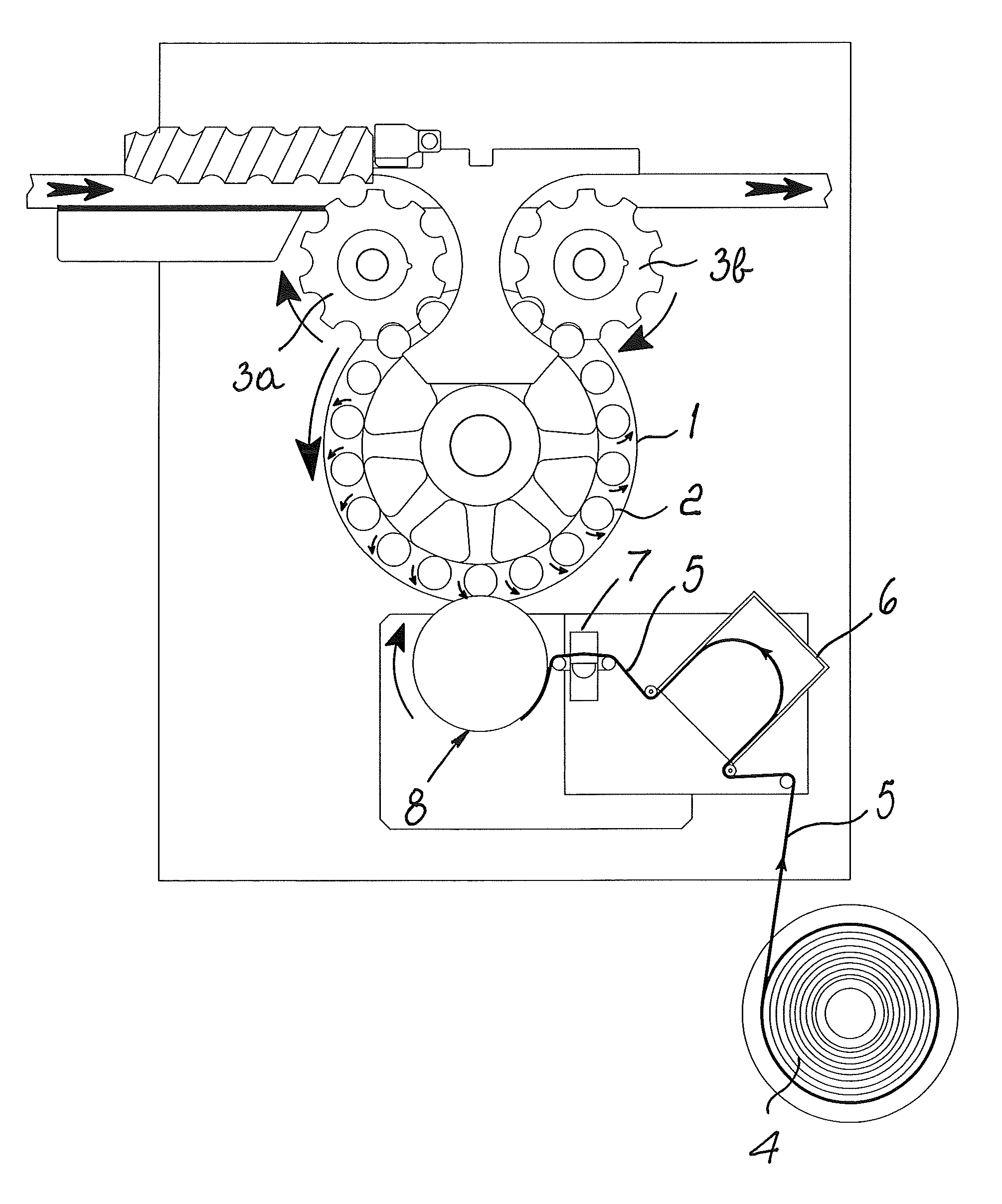

A labelling machine for labels printed on pre-pasted continuous film, comprising a rotating carousel provided with elements for supporting the individual containers to be labelled, adapted to turn such containers about their own axis, and alignment elements and tension adjustment elements for the film that unwinds from a reel and a cutting and transfer drum comprises a structure for supporting actuation elements for individual blades designed to cut the labels, the supporting structure being adapted to support a number of circumferential portions of peripheral shells provided with film retention elements and adapted to be inserted in the gaps formed by the blades that are present in each one of the groupings, so as to form a continuous cylindrical surface for supporting the film.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B65C Class
- 75 Applications Filed
- 50 Patents Issued To-Date
- 66.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65C Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 7, 2026 |
