Device for the flow-through treatment of web-shaped material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 7, 2015
Grant Date -
Jan 31, 2013
app pub date -
Mar 19, 2011
filing date -
Apr 15, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

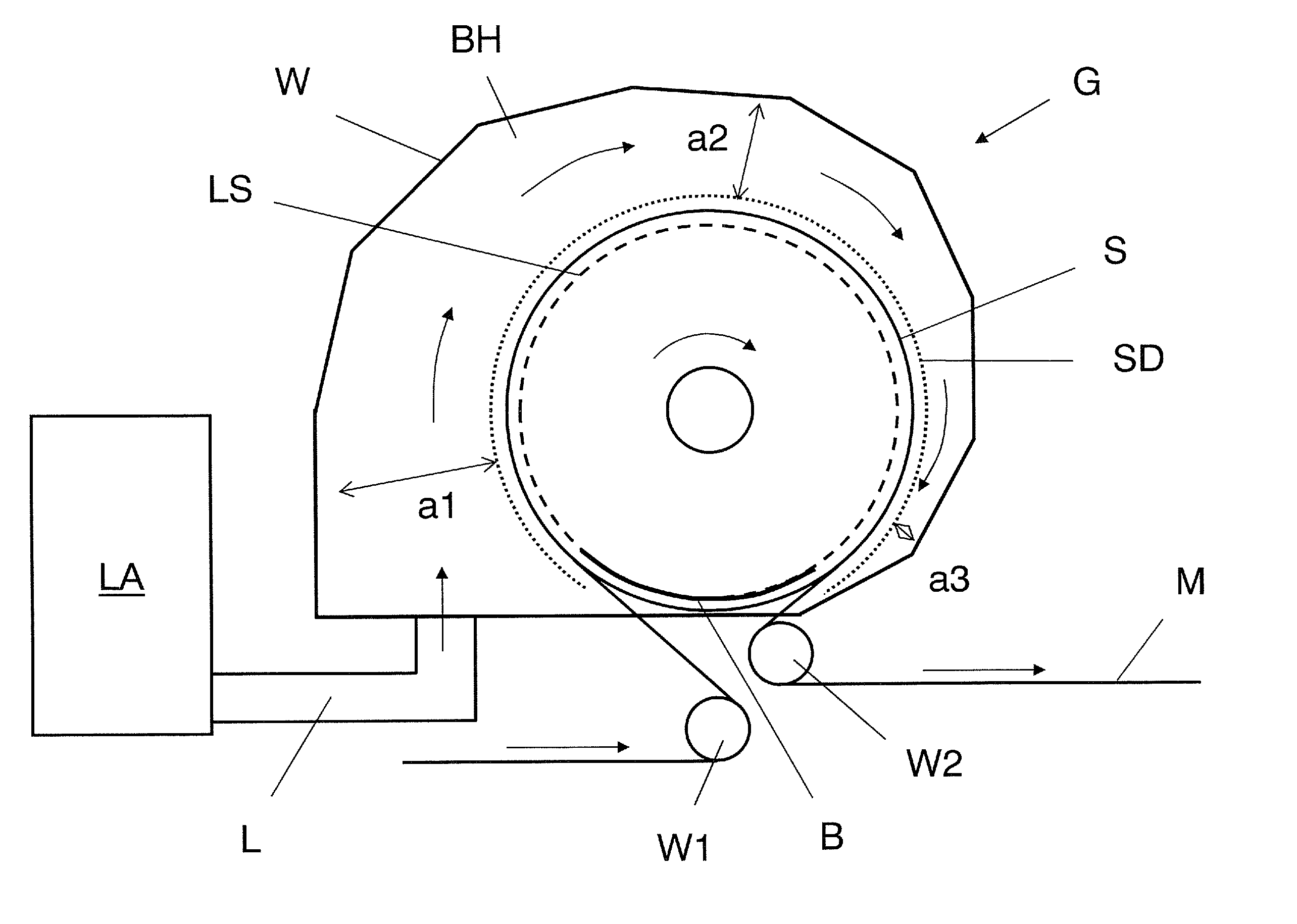

The invention relates to a device for the flow-through treatment of web-shaped, gas-permeable material, in particular for drying woven or non-woven fabrics, having the following characteristics:
- a sieving drum (5), which is rotatably supported and which is connected to a vacuum generator and which has a permeable outer circumference, wherein the material web (M) to be treated rotates around part of the outer circumference of the sieving drum (5);a treatment chamber (BH), which accommodates the sieving drum and to which the gas to be treated, preferably heated air, is supplied;inside the treatment chamber (BH), a sieving cover (SD) or corresponding flow-conducting elements, which surround the sieving drum (5) in the area around which the material web (M) is wound and by means of which the gas flowing into the treatment chamber (BH) is conducted in the direction of the sieving drum surface.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2011 Application Filing Year
- F26B Class
- 274 Applications Filed
- 210 Patents Issued To-Date
- 76.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F26B Class
- 24.49 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 7, 2026 |
