Extended-span and alternatively-shaped arch bridge and construction method therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 7, 2015
Grant Date -
Aug 14, 2014
app pub date -
Sep 30, 2011
filing date -
Sep 30, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

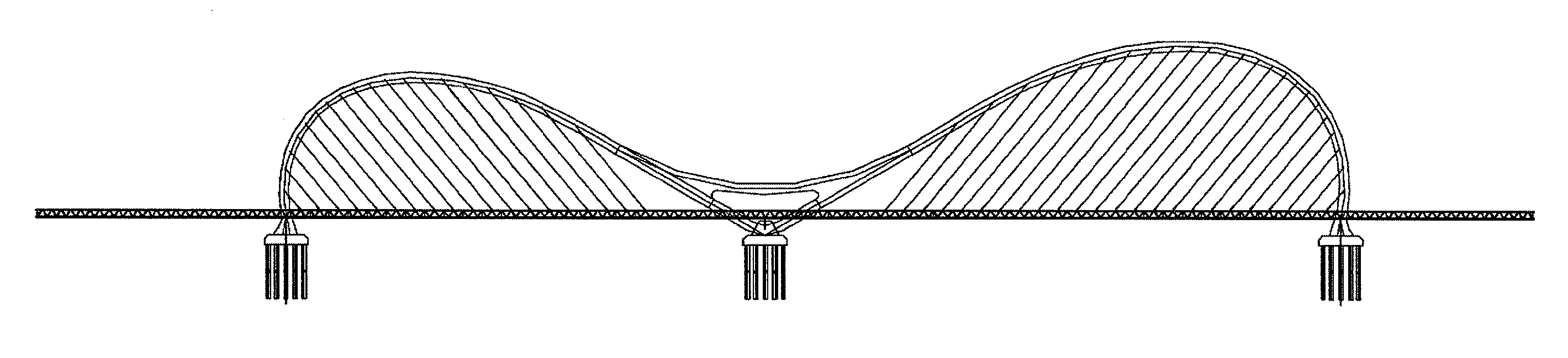

A large-span and special-shaped arch bridge, comprising a main girder (2), a center abutment (11) served as a central bearing point and two auxiliary abutments (12,13) served as bearing points at two ends, wherein further comprising an arch-axis combination (3) and two arch-axis bending beams (4,5) presented as arcs projected upwards, the arch-axis combination being built on the center abutment (11) with two ends connected to the inner ends of the two arch-axis bending beams (4,5), the outer ends of the two arch-axis bending beams (4,5) being built on the two auxiliary abutments (12,13), the two arch-axis bending beams (4,5) being connected to the main girder (2) via a plurality of inhaul cables. A method for constructing said arch bridge is also disclosed. Through the dual-arch axis of two arch-axis bending beams, the bending strength of the cross-section of the arch bridge is significantly increased, the bending moment of the cross-section of the arch at the central bearing point is decreased, the vertical displacement at the haunch of the arch is lesser, and the deformation of the main girder is reduced, thus the force of the entire bridge is more reasonable, the construction cost can effectively be reduced and the construction period can be shortened.
