Station for preparing orders comprising at least one shaft for vertically accumulating and sequentially dispensing containers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 31, 2015
Grant Date -
Feb 6, 2014
app pub date -
Feb 9, 2012
filing date -
Feb 11, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

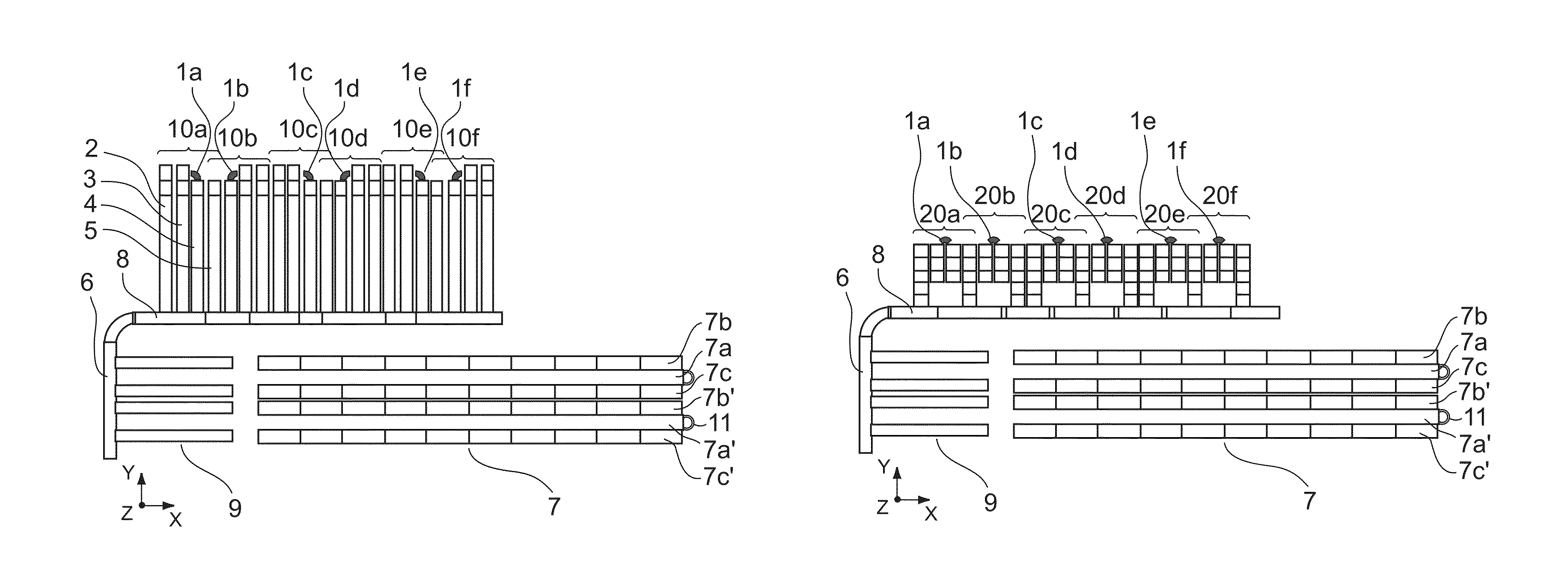

There is proposed a unit including a station for preparing orders, controlled by a control system. The station has a first circuit that includes a first outward conveyor, which receives containers for storing products, and an accumulator for accumulating a predetermined quantity of storage containers received on the first outward conveyor. The accumulator includes: at least one first shaft comprising superposed mobile positions that can each receive and downwardly move at least one storage container, the at least one first shaft vertically accumulating and sequentially dispensing storage containers previously placed in the positions; and at least one first elevator moving vertically along the at least one first chute up to each of the locations of the at least one first chute.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- G06F Class
- 8.54 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 30, 2026 |
