Materials, method, and apparatus for detecting neutrons and ionizing radiation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 31, 2015
Issued Date -
N/A
app pub date -
Mar 26, 2012
filing date -
Mar 25, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

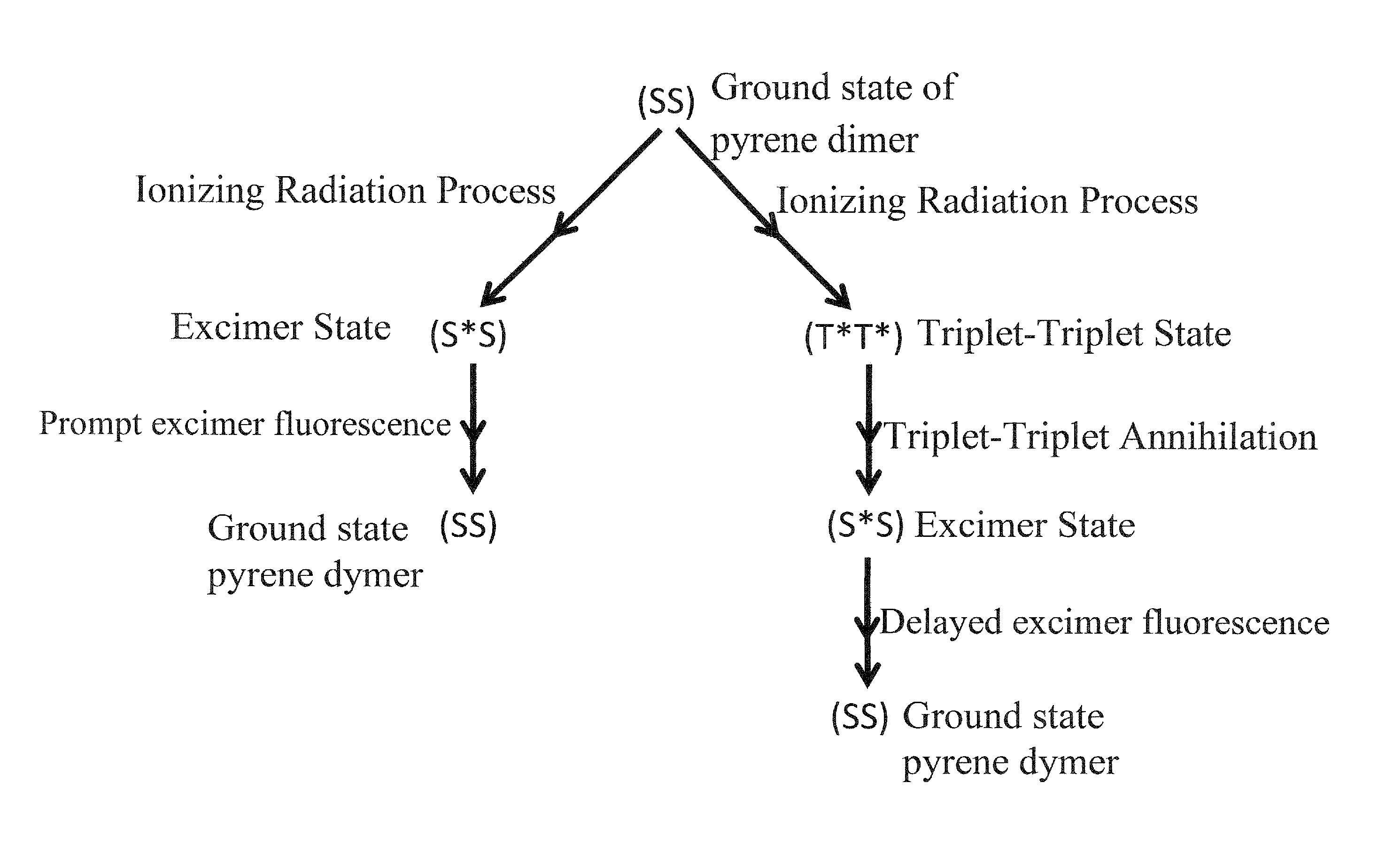

Embodiments of the invention provide a scintillator material, a scintillator system, and/or a method of detecting incident radiation using a scintillator material, or scintillator system, comprising a polymer material that comprises chromophores. Additional embodiments provide a scintillator material, scintillator system, and/or a method of detecting incident radiation using a scintillator material, or scintillator system, comprising a polymer material having one, two, three, or more, organic dyes dissolved therein wherein the polymer material having the one, two, three, or more dyes dissolved therein comprises chromophores. At least one of the dyes, termed the base dye, has a concentration in the range 0.5 to 3.5 mol/L. In a specific embodiment, the base dye has a concentration in the range 1.0 to 3.0 mol/L. This base dye concentration is high enough to achieve a substantial triplet-triplet state annihilation rate despite the negligible diffusion of the dye in the rigid polymer matrix.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- C09K Class
- 1833 Applications Filed
- 1451 Patents Issued To-Date
- 79.16 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- C09K Class
- 18.79 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 30, 2026 |
