Metal structure that serves as an internal support to a dental prosthesis
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 31, 2015
Grant Date -
Jul 4, 2013
app pub date -
Dec 31, 2012
filing date -
Dec 29, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

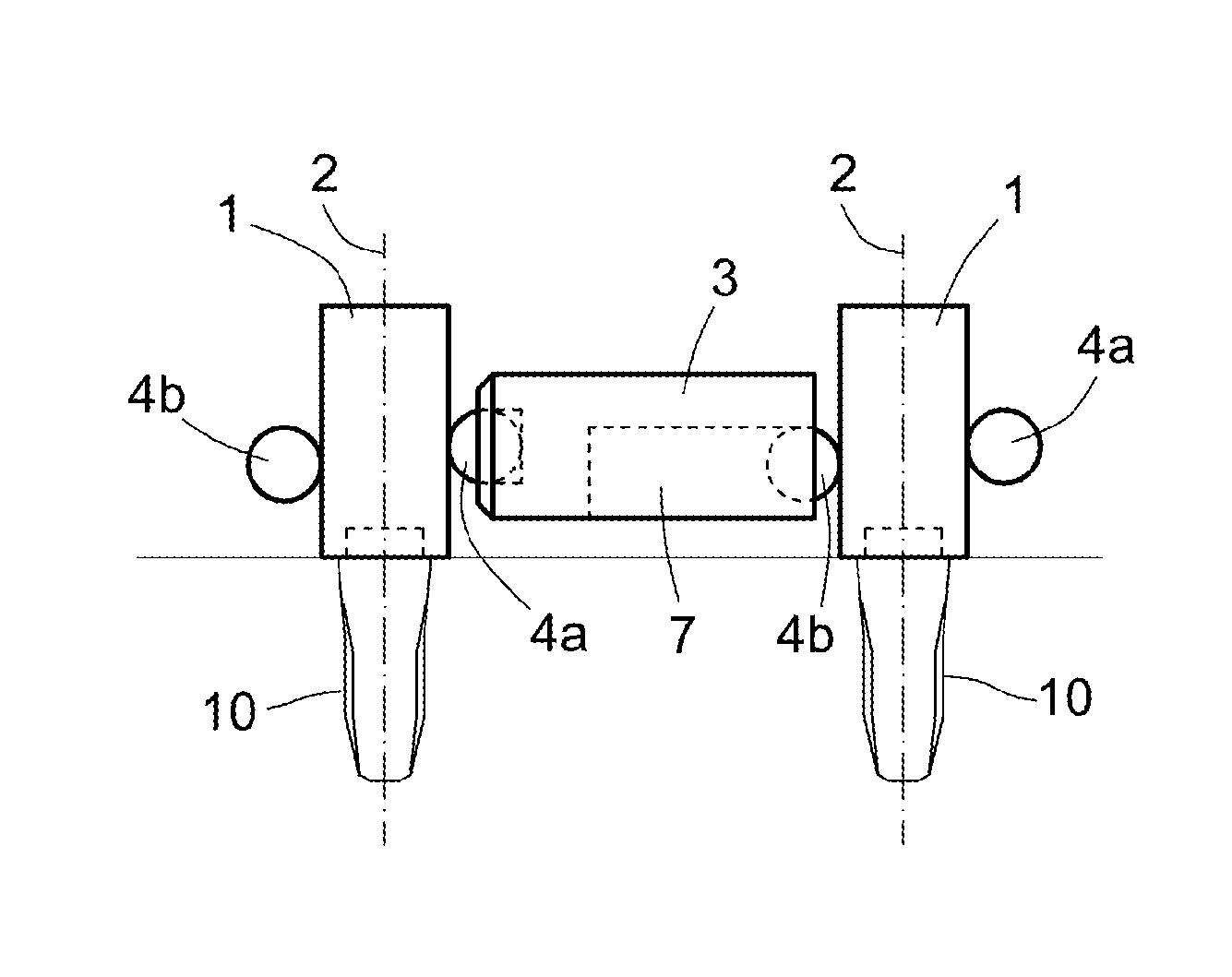

Metal structure that serves as an internal support to a dental prosthesis, comprising at least two support posts (1) designed to be attached on respective dental implants (10), and at least one rod (3) for connecting two adjacent support posts (1), where at least one support post (1) comprises at least one protruding element (4a, 4b) that projects from its side, and at least one rod (3) that comprises a first end (5) provided with a blind hole (6) designed to receive a first protruding element (4a) of a support post (1), thus providing an articulated connection that acts like a ball joint, and a longitudinal recess (7) designed to receive a second protruding element (4b) of the adjacent support post (1). This structure is easy to prepare and to assemble.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- A61C Class
- 599 Applications Filed
- 524 Patents Issued To-Date
- 87.48 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61C Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 30, 2026 |
