Stacker
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 31, 2015
Grant Date -
Nov 1, 2012
app pub date -
Mar 30, 2012
filing date -
Mar 31, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

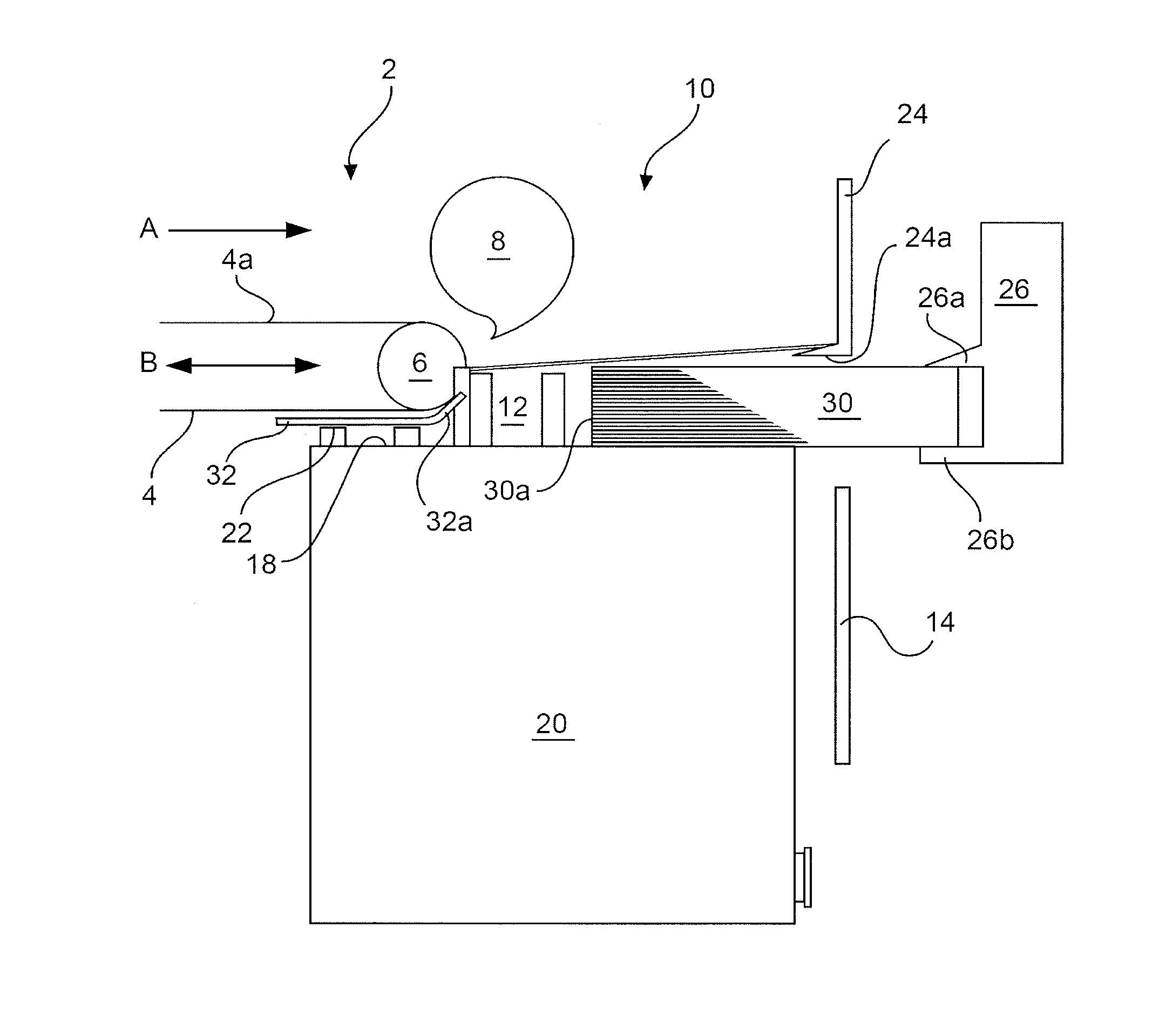

A stacker is described, in particular in an installation of the paper processing industry, for forming a stack of several flat parts to be fed in a transport direction, in particular film sheets or paper sheets, with a stack forming area and a support device for supporting the stack to be formed from the flat parts in the stack forming area. The special nature of the invention lies in that the support device has a plurality of discrete support elements that are at least arranged one behind the other seen in the transport direction of the flat parts and are supported in a moveable manner between a lower position and an upper position at an angle to the transport direction of the flat parts, preferably approximately at right angles to the transport direction A of the flat parts and/or approximately vertically.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65H Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 30, 2026 |
