Tree stand
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 31, 2015
Grant Date -
Apr 5, 2012
app pub date -
Oct 4, 2011
filing date -
Oct 4, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

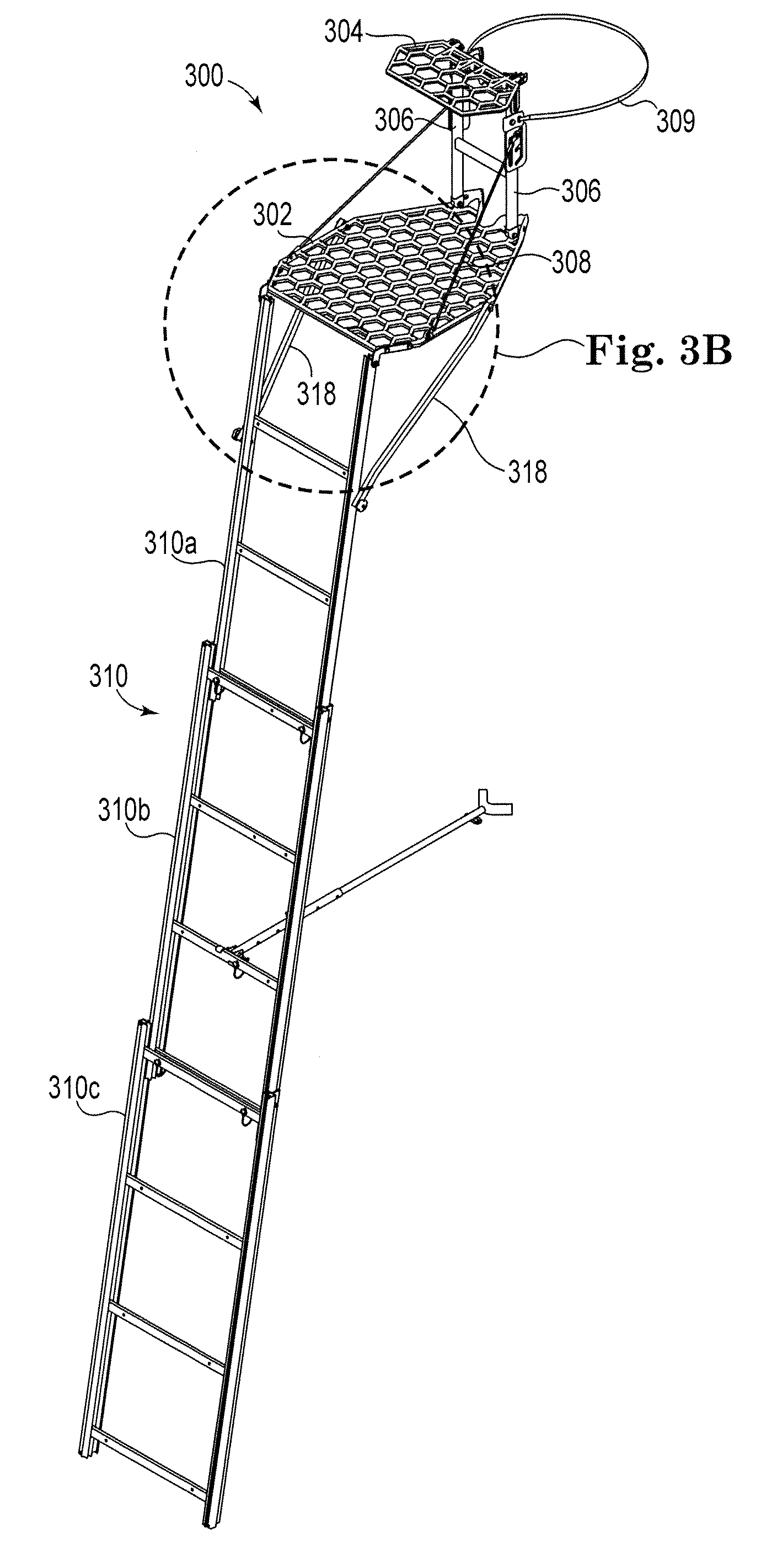

Tree stands are disclosed for providing an elevated standing location. The tree stand can include a support post, a seat rotatably coupled to the first end of the support post, and a platform rotatably coupled to the second end of the support post. The platform can rotate from a transport configuration to an operable configuration. The platform in the operable configuration is approximately perpendicular to the support post. The platform has a tree contact point positioned above a plane of the platform when the platform is in the horizontal position. The platform can comprise a plurality of hexagons with groups of three hexagons intersecting at a point and forming a honeycomb pattern defining a top standing surface on which a hunter can stand. The contact point is configured to create an over-center locking action. The tree stand can also include a stackable ladder coupled to the platform.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- A01M Class
- 177 Applications Filed
- 138 Patents Issued To-Date
- 77.97 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- A01M Class
- 79.75 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 30, 2026 |
