Parts carrier assembly for grinding machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 24, 2015
Grant Date -
Jun 6, 2013
app pub date -
Dec 6, 2011
filing date -
Dec 6, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

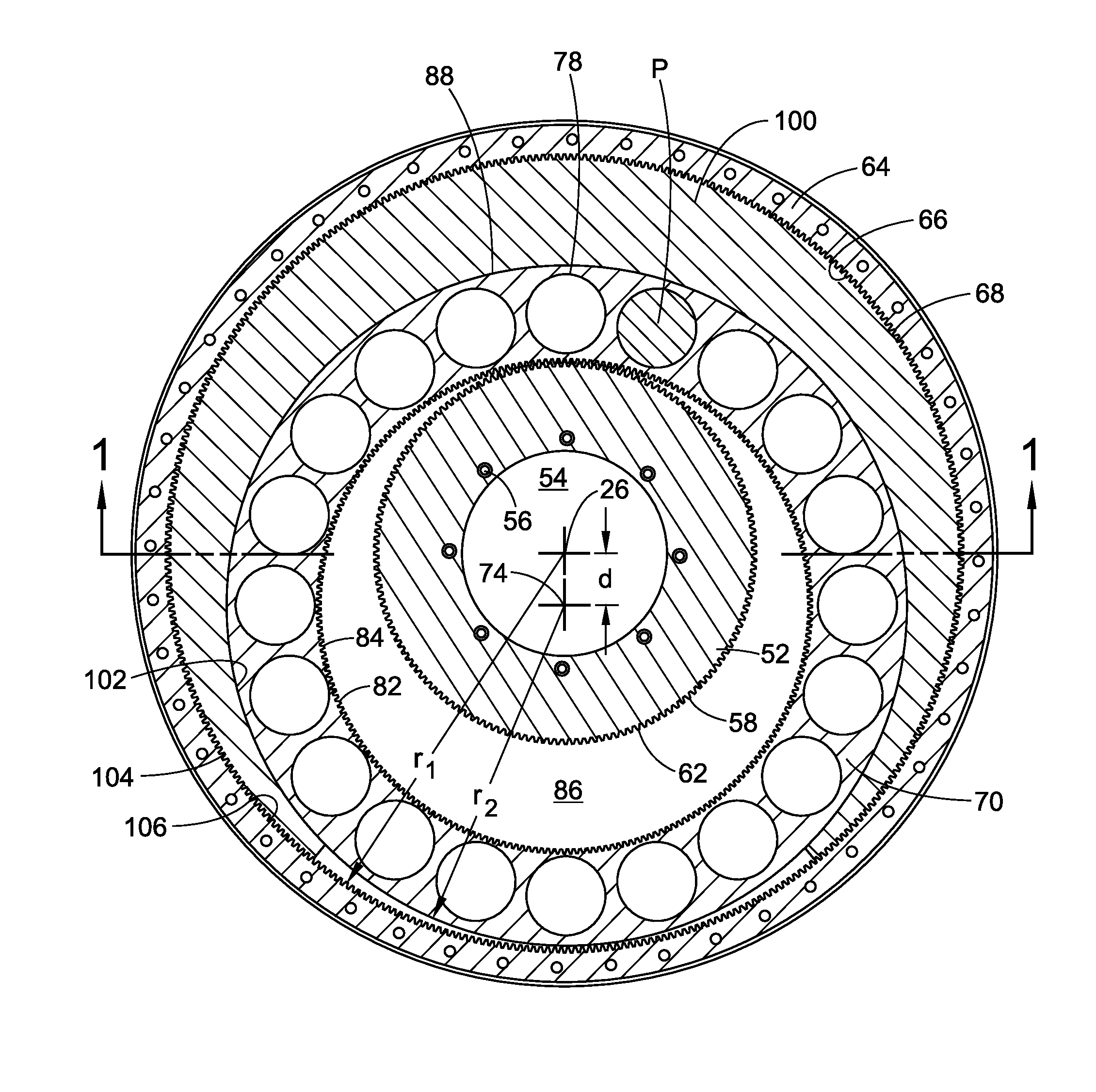

A parts carrier assembly for a grinding machine includes an annular parts carrier and a bearing insert. The annular parts carrier includes an upper surface, a lower surface, an inner edge, an outer edge, and a plurality of loading apertures. The inner edge is configured to engage a driving wheel of the grinding machine. The driving wheel rotates about a central axis resulting in rotation of the parts carrier about an offset axis, which is offset from the central axis. The loading apertures are configured to receive parts to be ground by the grinding machine. The bearing insert includes an inner bearing surface complementary in shape to the outer edge of the parts carrier. The outer surface the parts carrier bears against the inner bearing surface of the bearing insert as the parts carrier rotates about the offset axis.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2011 Application Filing Year
- B24B Class
- 523 Applications Filed
- 423 Patents Issued To-Date
- 80.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B24B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 24, 2026 |
