LED lamp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 10, 2015
Grant Date -
Jul 4, 2013
app pub date -
Dec 25, 2012
filing date -
Dec 28, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

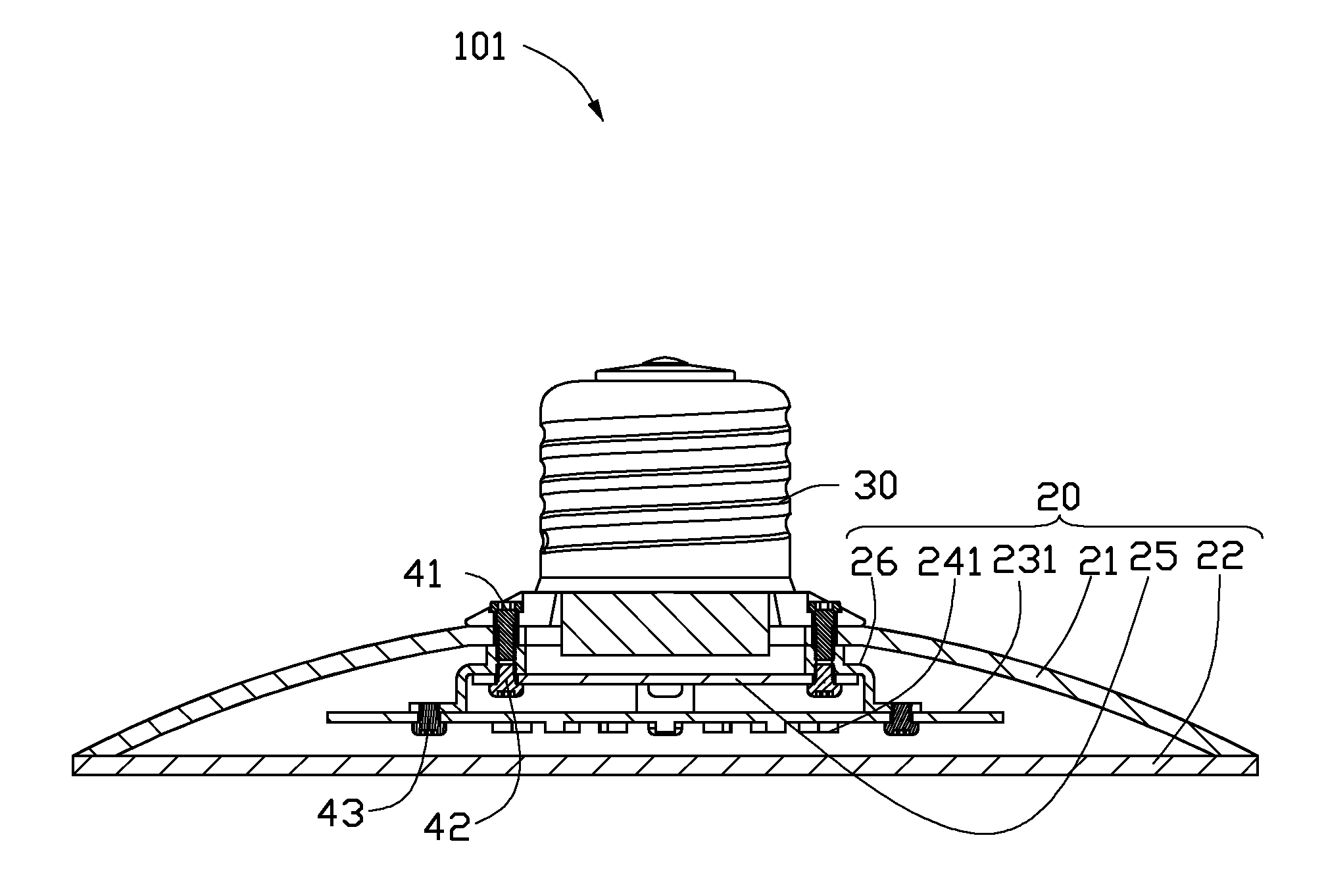

An LED lamp includes a socket and a shallow dish-shaped body detachably connected to the socket. The body includes a rear cover, a transparent front cover, a lamp board, a number of LED light sources, a driving circuit board, and a fixing member. The front cover has a honeycombed pattern including a plurality of cells. The LED light sources are mounted on the lamp board facing an inside of the front cover, and each LED light source is configured to emit a light beam toward the front cover so as to create a light spot in a corresponding cell on the front cover. The driving circuit board is electrically connected to the socket and the lamp board, and is configured for driving the LED light sources to emit light beams. The fixing member is configured for fixing the rear cover, the driving circuit board and the lamp board together.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F21V Class
- 2996 Applications Filed
- 2304 Patents Issued To-Date
- 76.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F21V Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 10, 2026 |
