Medical care units for power supply and/or data transmission
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 24, 2015
Issued Date -
N/A
app pub date -
Nov 7, 2008
filing date -
Nov 8, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

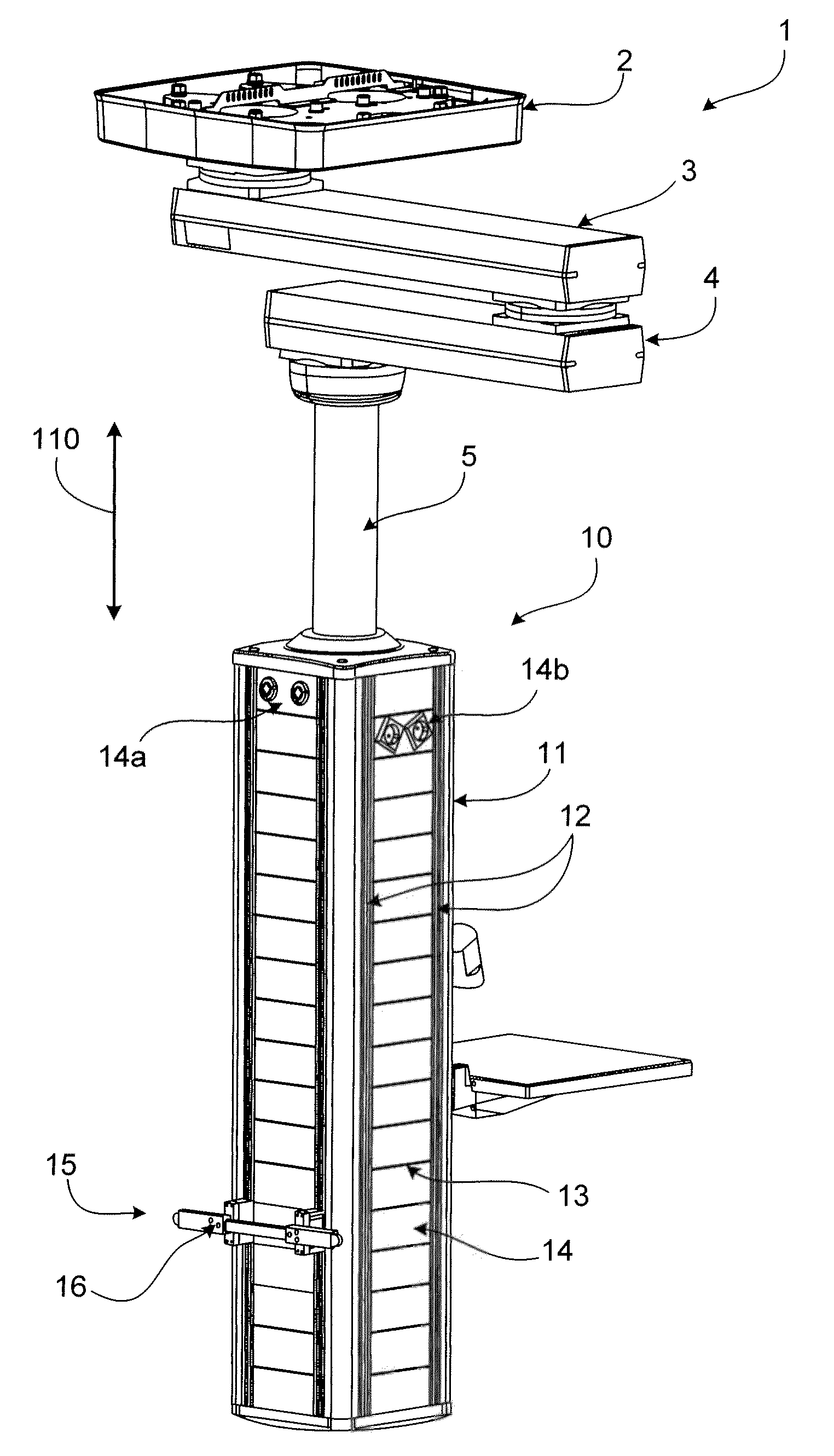

A medical care unit provides power supply or data transmission in medical apparatuses. In particular, current consumers and data transmission apparatuses are slidable along a coupling device of the medical care unit. The medical care unit includes an oblong support that includes the coupling device, which extend along the support and include at least two electrically insulated bus bars continuously extending in the coupling device. At least two bus bars are formed as power supply bus bars, at least one bus bar is formed as a data transmission bus bar, the coupling device as a hollow bar is formed with an opening along its longitudinal direction, and the power supply bus bars and the data transmission bus bars are arranged inside the hollow bar.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- H02B Class
- 191 Applications Filed
- 91 Patents Issued To-Date
- 47.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H02B Class
- 14.60 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 24, 2026 |
