Low bend loss optical fiber
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 10, 2015
Issued Date -
N/A
app pub date -
Nov 19, 2012
filing date -
Nov 30, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

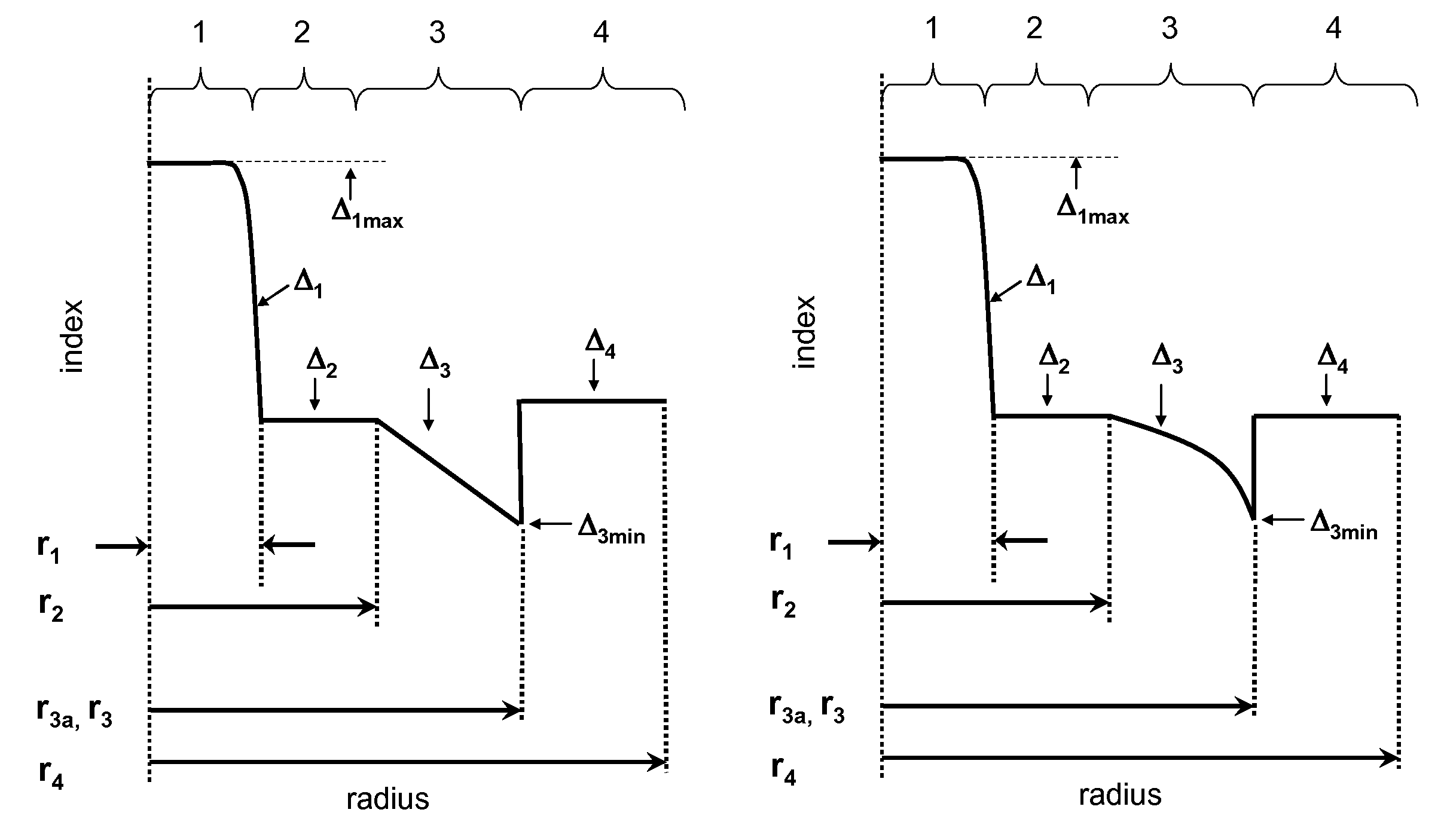

According to some embodiments a single mode fiber includes:
- a germania doped central core region having outer radius r1 and relative refractive index Δ1; anda cladding region comprising (i) a first inner cladding region having an outer radius r2>6 microns and relative refractive index Δ2 and 0.3≦r1/r2≦0.85; and (ii) a second inner cladding region having an outer radius r3>9 microns and comprising a minimum relative refractive index Δ3, wherein said second inner cladding region has at least one region with a relative refractive index delta that becomes more negative with increasing radius; and (iii) an outer cladding region surrounding the second inner cladding region and comprising relative refractive index Δ4, wherein Δ1>Δ2>Δ3, Δ3<Δ4.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 19 Citation Count
- G02B Class
- 75.57 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 10, 2026 |
