Method for fabricating sensor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 2, 2015
Grant Date -
Nov 13, 2014
app pub date -
Nov 16, 2012
filing date -
Nov 16, 2012
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

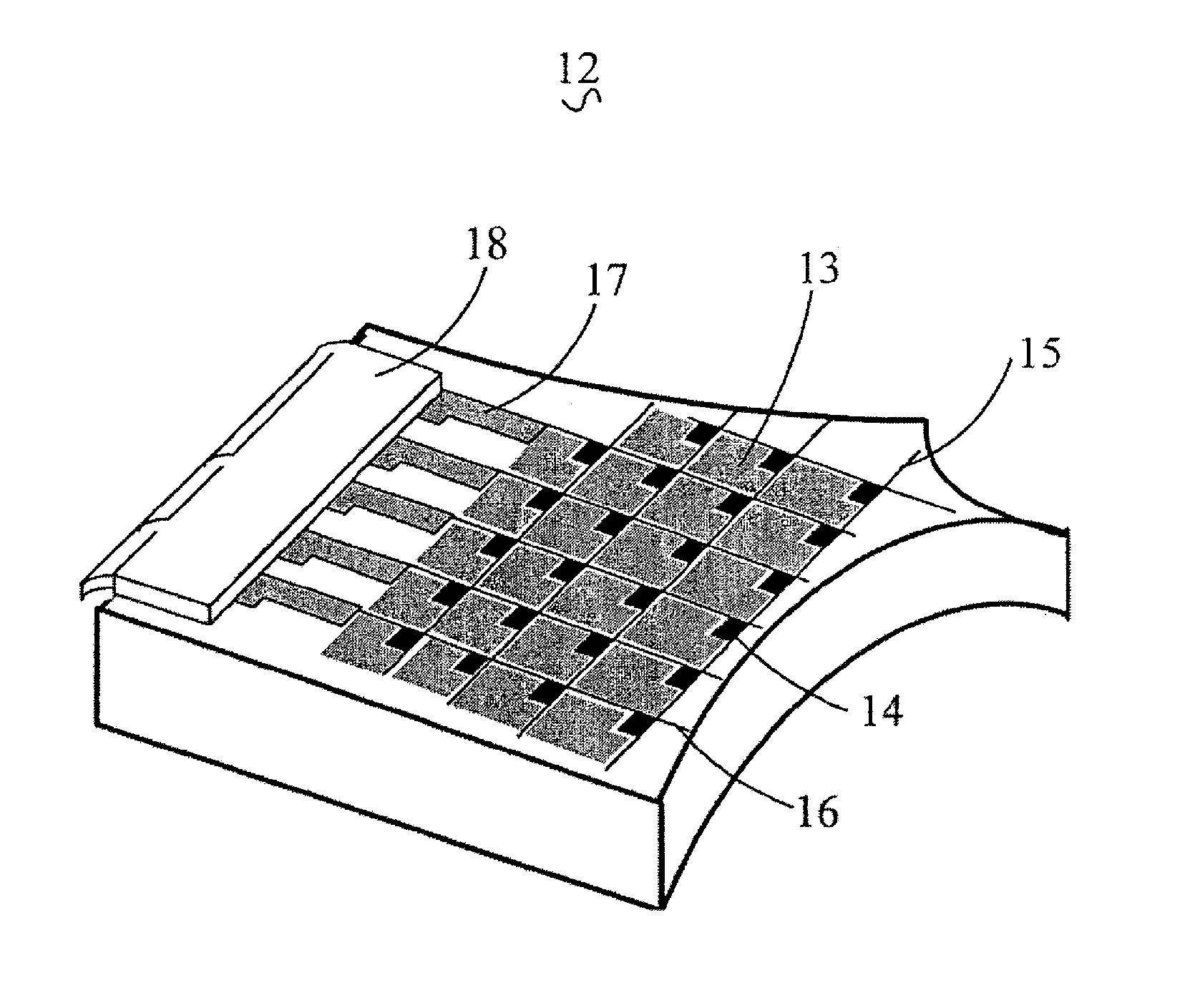

A method for fabricating a sensor includes: forming, on a base substrate, a pattern of a source electrode and a drain electrode, a pattern of a data line, a pattern of a receiving electrode, a pattern of a photodiode, and a pattern of a transparent electrode disposed by using a first patterning process; forming a pattern of an ohmic layer by using a second patterning process; forming a pattern of an active layer by using a third patterning process; forming a pattern of a gate insulating layer by using a fourth patterning process, wherein the gate insulating layer has a via hole above the transparent electrode; and forming a pattern of a gate electrode, a pattern of a gate line, and a pattern of a bias line connected to the transparent electrode via the via hole above the transparent electrode by using a fifth patterning process.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2012 Application Filing Year
- H01L Class
- 20465 Applications Filed
- 18077 Patents Issued To-Date
- 88.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 10, 2026 |
