System, methods, processes and apparatus for removing finely dispersed particulate matter from a fluid stream
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 3, 2015
Issued Date -
N/A
app pub date -
Jul 29, 2010
filing date -
Oct 27, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

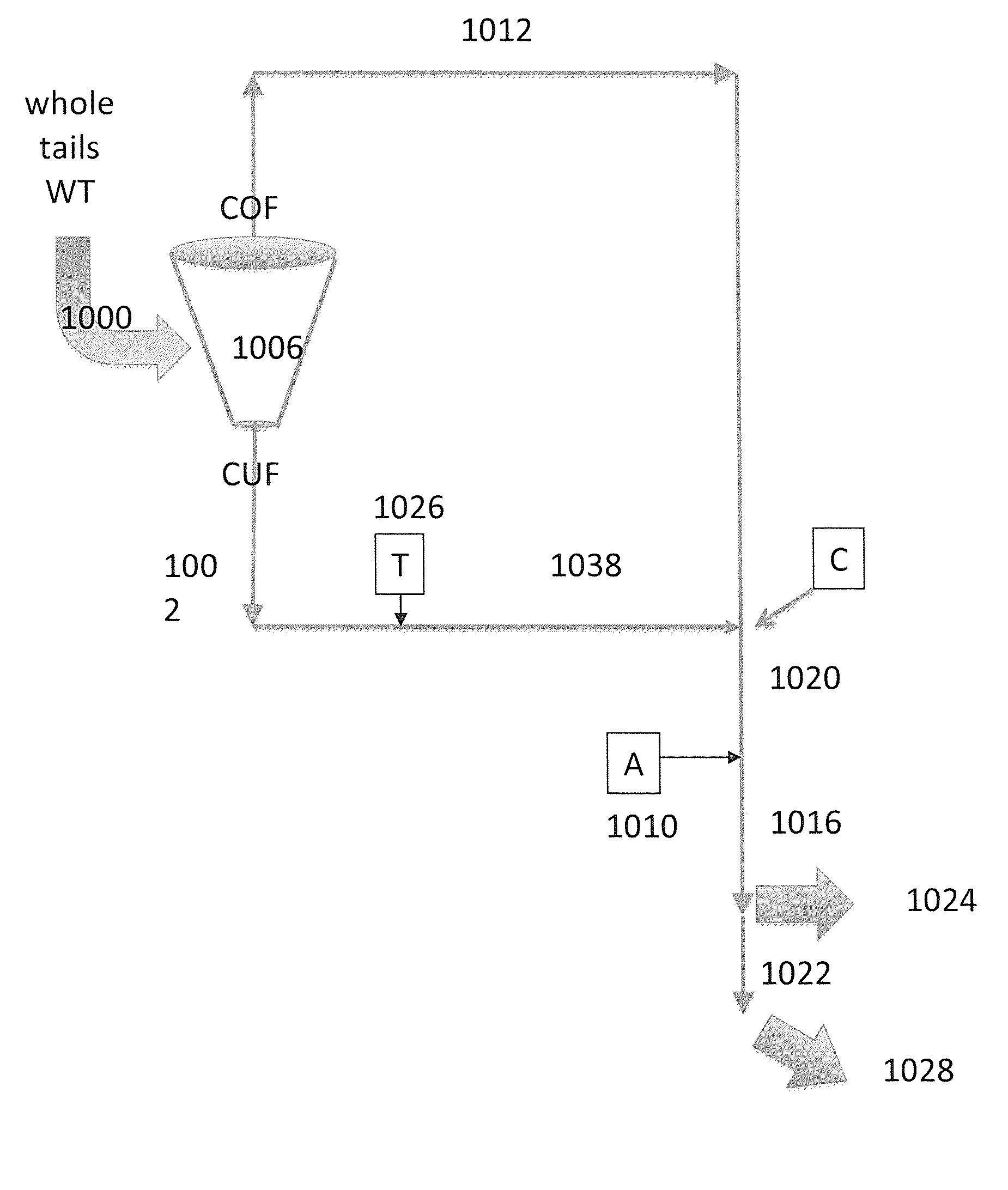

Disclosed herein are systems and methods for removing fine particulate matter from a fluid, comprising a separator that separates an inflow fluid stream into an overflow fluid path and an underflow fluid path, where the underflow fluid path is treated with a tethering material that attaches to the coarse particulate matter to form tether-bearing anchor particles and where the overflow fluid path is treated with an activating material so that the activating material interacts with the fine particulate matter to form activated particles. After these treatments, the underflow fluid path containing the tether-bearing anchor particles is commingled with the overflow fluid path containing the activated particles, so that a removable complex is produced that can be removed in a settling facility, thereby removing the fine particulate matter from the fluid. The systems and methods are particularly advantageous for removing particulate matter from a fluid waste stream following mining or ore processing operations, such as oil sands mining or processing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- C02F Class
- 850 Applications Filed
- 596 Patents Issued To-Date
- 70.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- C02F Class
- 19.24 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 3, 2026 |
