Biomass conveying and distributing system for a harvester
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 27, 2015
Issued Date -
N/A
app pub date -
Sep 27, 2010
filing date -
Sep 29, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

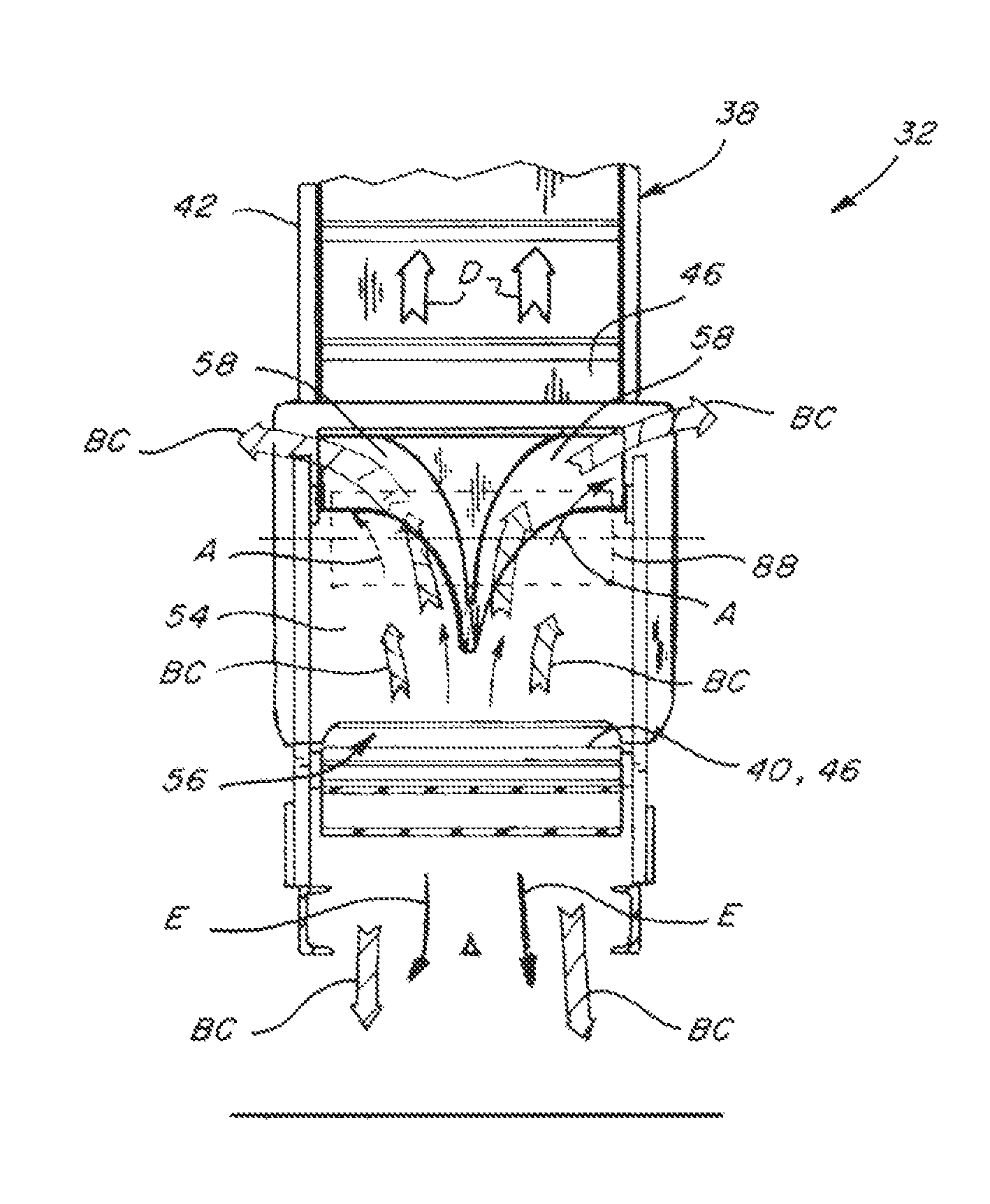

A biomass conveying and distributing system for separating and distributing lighter biomass residue from heavier or denser biomass, utilizing available air flow from the cleaning system of the harvester. The harvester will discharge a flow of heavier or denser biomass with an airborne flow of lighter biomass residue. The system includes a conveyor for receiving and conveying the heavier or denser biomass, and residue distributing apparatus disposed above the conveyor in a path of at least a portion of the airborne flow of lighter residue, including at least one deflector configured and operable for redirecting the airborne flow sidewardly away from the conveyor, above a passage through which the conveyor passes carrying the heavier biomass away from the harvester.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B02B Class
- 16 Applications Filed
- 12 Patents Issued To-Date
- 75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B02B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 27, 2026 |
