Slide hinge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 27, 2015
Issued Date -
N/A
app pub date -
Oct 2, 2013
filing date -
Oct 4, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance

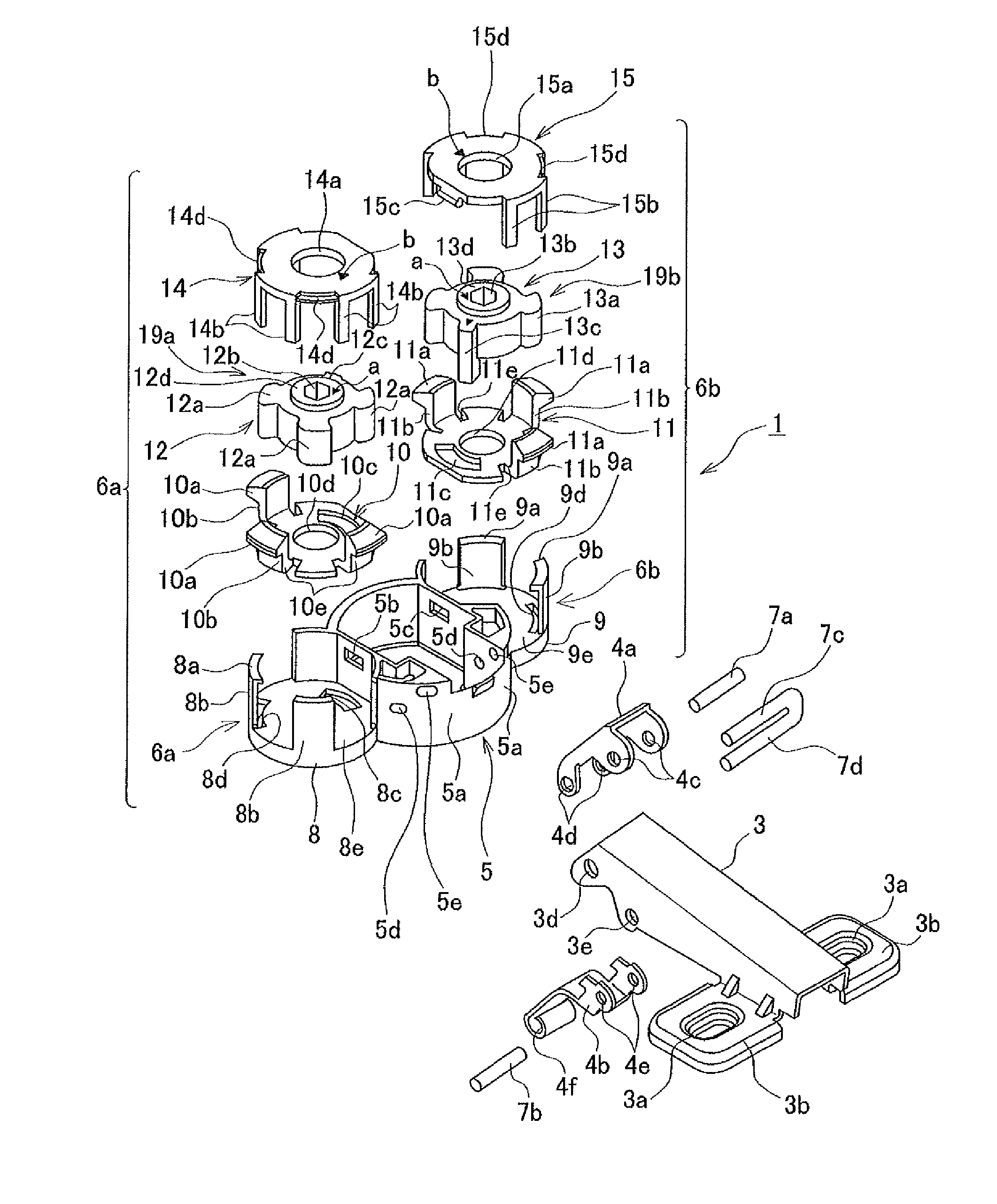

Abstract
To provide a slide hinge which can be easily attached to a door or a cabinet main body of honeycomb cardboard, on which attaching screws do not work well, and which is further devised to eliminate a risk of escape from the door after the fixation, fittings enabling a coupling case to be attached to the door even without attaching screws or nails are provided; furthermore, each of the fittings comprises an attaching case part integrally connected to each side portion of the coupling case, and an fitting for each attaching case part; then, this fitting comprises a locking plate housed into the attaching case part and a diameter expanding means pushing out craw portions of the locking plate; the diameter expanding means further comprises an operating plate with pressurizing portions protruding on an outer circumference and a cap locked by a locking plate on each attaching case part.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- E05D Class
- 323 Applications Filed
- 275 Patents Issued To-Date
- 85.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E05D Class
- 10.14 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 27, 2026 |
