Elongated cam, self-locking, board straightening device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 20, 2015
Grant Date -
Jul 22, 2010
app pub date -
Jan 14, 2010
filing date -
Jan 16, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance

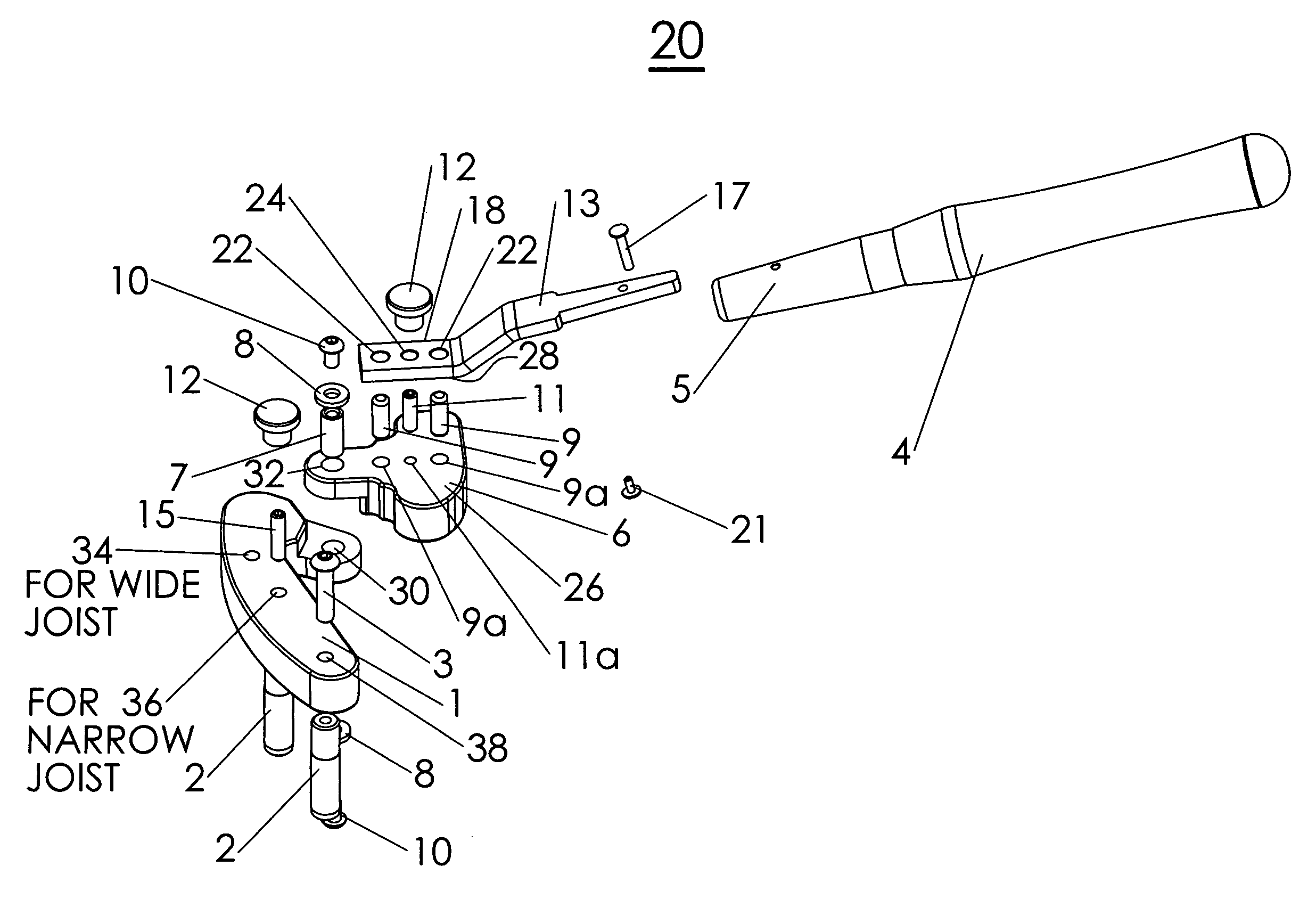

Abstract
A board straightening tool able to provide the force to straighten bent boards by simultaneously maintaining a grasping connection to both the joist being used to support the straightening device and the board being fastened to that joist, and maintaining a clearance between the straightening tool and board for the use of an Install the fastening device on the same joist that the tool is using for support is required to obtain the straightest installed boards possible and to maintain the maximum straightness of the deck board after the straightening device is released. The grasping pins are constructed either from a knurled metal for more grasp power or have a smooth surface providing for a reduction of marring of the joist. The tool also provides the force required to maintain consistently spaced gaps between the boards for a more desirable appearance.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B25B Class
- 566 Applications Filed
- 378 Patents Issued To-Date
- 66.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 20, 2026 |
