Set for producing a threaded connection for drilling and operating hydrocarbon wells, and resulting threaded connection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 6, 2015
Issued Date -
N/A
app pub date -
May 3, 2010
filing date -
May 12, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

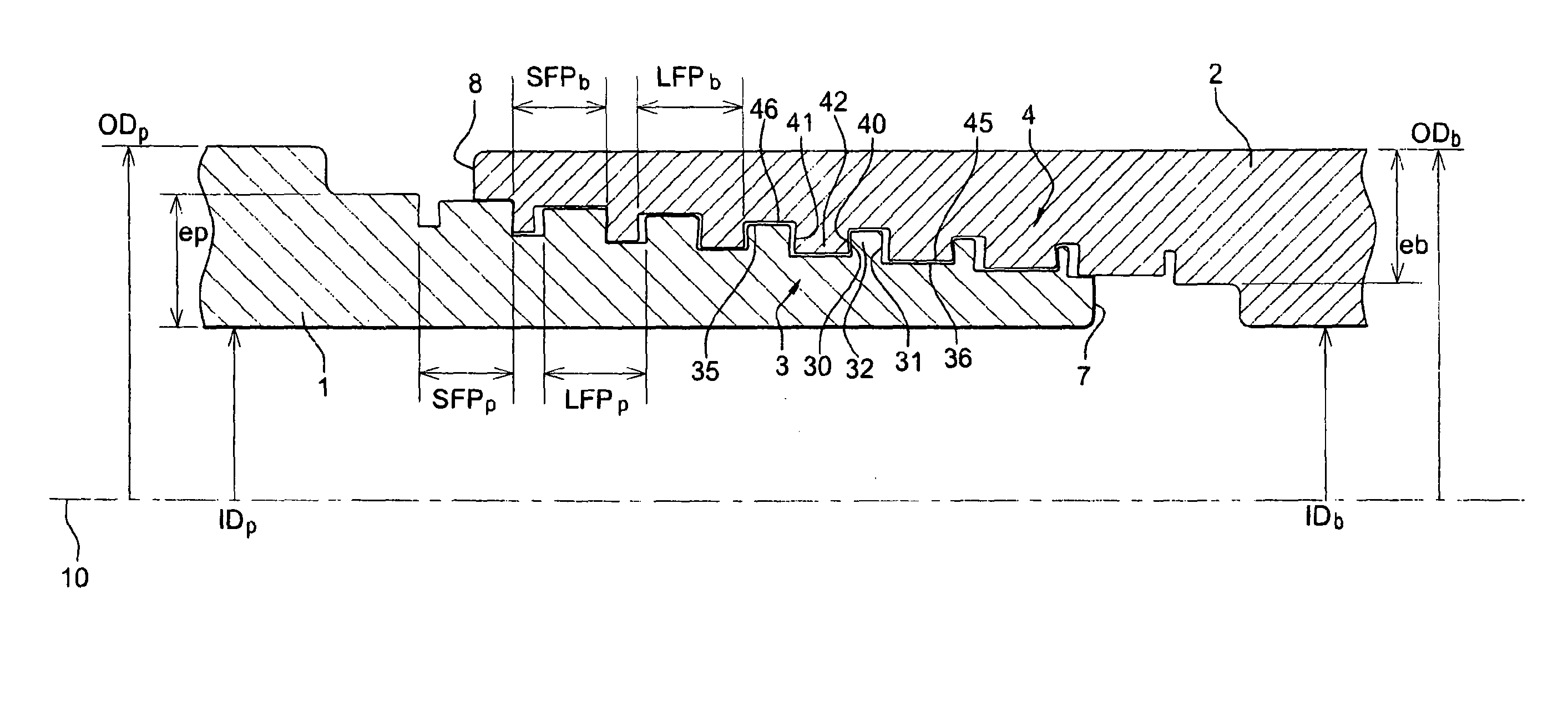

A threaded connection includes first and second tubular components each with an axis of revolution. The first component including a male threaded end, the second component including a female threaded end, and both the male and female threaded ends finishing in a terminal surface. The threaded zones include, over a portion defined as in a self-locking make-up, threads, which before the self-locking make-up and when viewed in a longitudinal section passing through the axis of revolution of the first and second components, each include: a thread crest, a thread root, a load flank, and a stabbing flank. A width of the thread crests of each component reducing in a direction of the terminal surface of the component under consideration, while a width of the thread roots increases. A lead of the male stabbing flanks and/or load flanks is different from a lead of the female stabbing flanks and/or load flanks.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- F16L Class
- 1178 Applications Filed
- 754 Patents Issued To-Date
- 64.01 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- F16L Class
- 16.56 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 6, 2026 |
