Corrosion protection utilizing a milled, bottom spin valve GMR sensor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 30, 2014
Issued Date -
N/A
app pub date -
Jun 6, 2006
filing date -
Jun 6, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

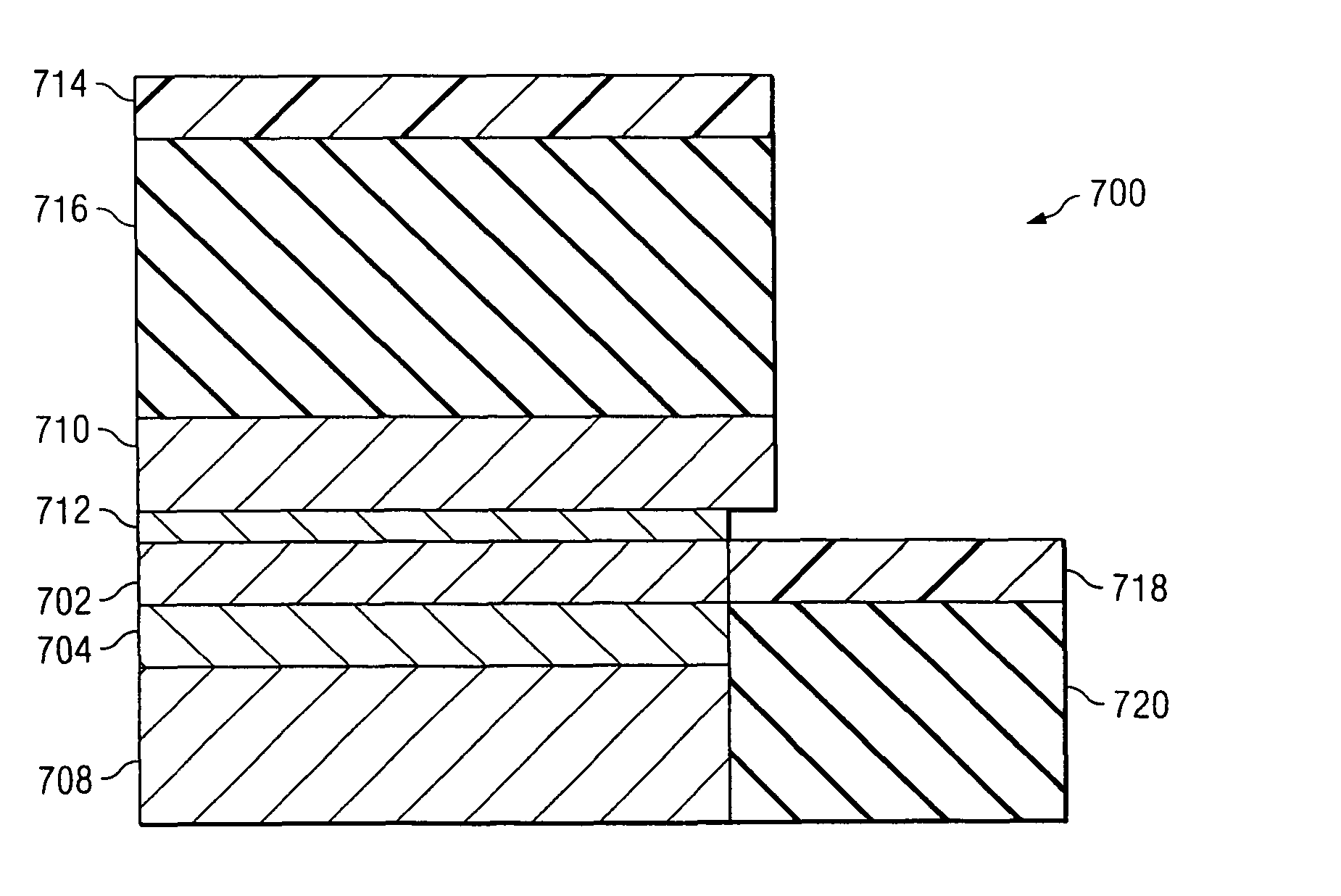

A magnetic sensor including a first layer that is a pinned layer, the first layer having a first edge. The magnetic sensor includes a second layer that is a non-magnetic metal layer, the second layer having a second edge corresponding to the first edge. The second layer is adjacent the first layer. The magnetic sensor includes a third layer that is a free layer, the third layer having a third edge corresponding to the first edge and the second edge. The third layer is adjacent the second layer. The magnetic sensor also includes a fourth layer that is a flux guide layer. The fourth layer is adjacent the third layer. The fourth layer extends outwardly from the third layer relative to the first layer and the second layer.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 30, 2026 |
