Marine barrier and gate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 30, 2014
Issued Date -
N/A
app pub date -
Aug 15, 2012
filing date -
Sep 1, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

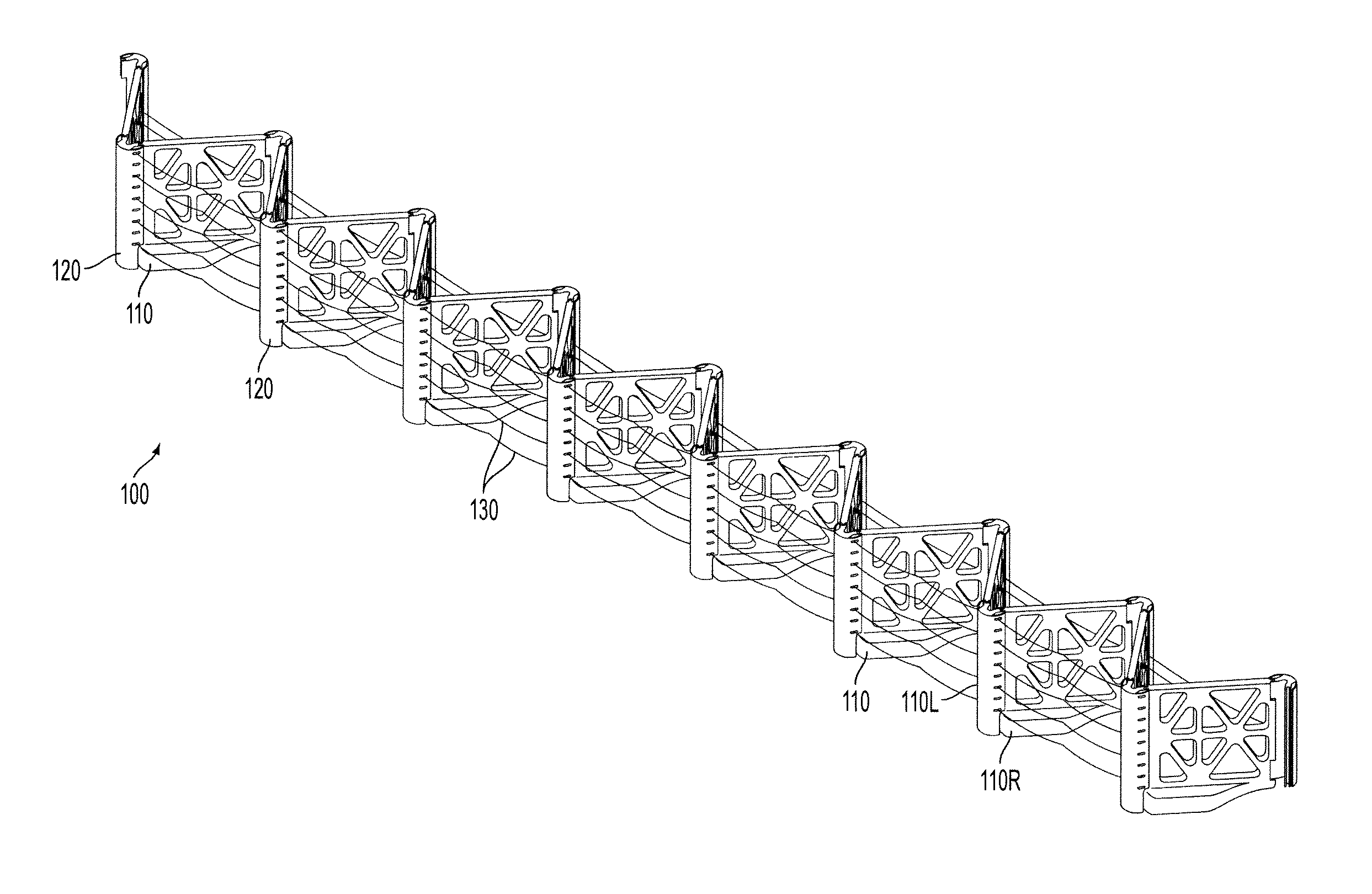

A marine barrier has substantially vertical panels, each having a buoyant portion, and a plurality of hinges, each hinge for elastically connecting a side of a first one of the panels to a side of an adjacent second one of the panels with an included angle therebetween, to form a buoyant continuous pleated row of panels, with the hinges arranged in first and second substantially parallel rows. An impact cable is attached to opposing ends of the pleated row of panels passing through each of the hinges in the first row of hinges. When the barrier is floating in water and a moving vessel impacts the impact cable, the impact cable deflects to transfer a force of the impact to one or more of the panels, which in turn engage the water to transfer the force of the impact to the water, to arrest the motion of the vessel.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F41H Class
- 232 Applications Filed
- 199 Patents Issued To-Date
- 85.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- F41H Class
- 8.11 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 30, 2026 |
