Method of producing alkoxysilanes and precipitated silicas from biogenic silicas

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 8916122
SERIAL NO

13737103

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

A method of producing alkoxysilanes and precipitated silicas from biogenic silicas is provided. In a first step, biogenically concentrated silica is mixed with a liquid polyol to obtain a mixture, and then the mixture is heated. In a second step, a base is added to obtain a reaction mixture. In a third step, the reaction mixture is filtered to remove the carbon enriched RHA or other undissolved biogenic silica and recover the solution of alkoxysilane and alcoholate. In a fourth step, alkoxysilane is purified by filtering, distilling, precipitating or extracting from the original reaction solution to precipitate various forms of silica. In a final step, residual base present in alkoxysilane is neutralized to eliminate the residual alkali metal base.

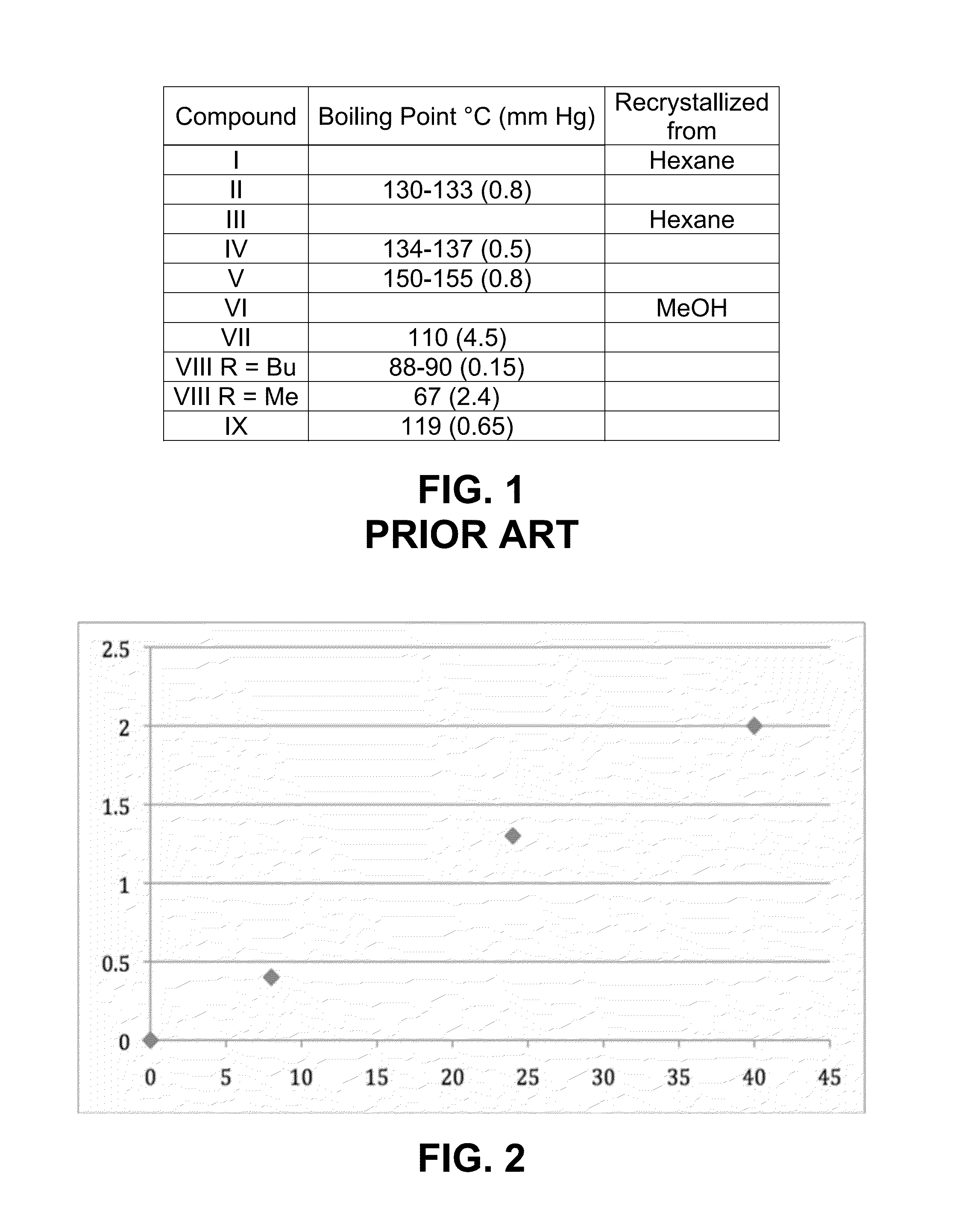

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
LAINE RICHARD M1375 FOLKSTONE CT ANN ARBOR MI 48105

International Classification(s)

  • [Classification Symbol]
  • [Patents Count]

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Krug, David J Ann Arbor, US 13 46
Laine, Richard M Ann Arbor, US 54 1106
Marchal, Julien C Ann Arbor, US 4 8
Popova, Vera Ann Arbor, US 5 18

Cited Art Landscape

Load Citation

Patent Citation Ranking

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
11.5 Year Payment $7400.00 $3700.00 $1850.00 Jun 23, 2026
Fee Large entity fee small entity fee micro entity fee
Surcharge - 11.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge after expiration - Late payment is unavoidable $700.00 $350.00 $175.00
Surcharge after expiration - Late payment is unintentional $1,640.00 $820.00 $410.00
