Softcapture cradle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 16, 2014
Grant Date -
N/A
app pub date -
May 18, 2011
filing date -
May 18, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

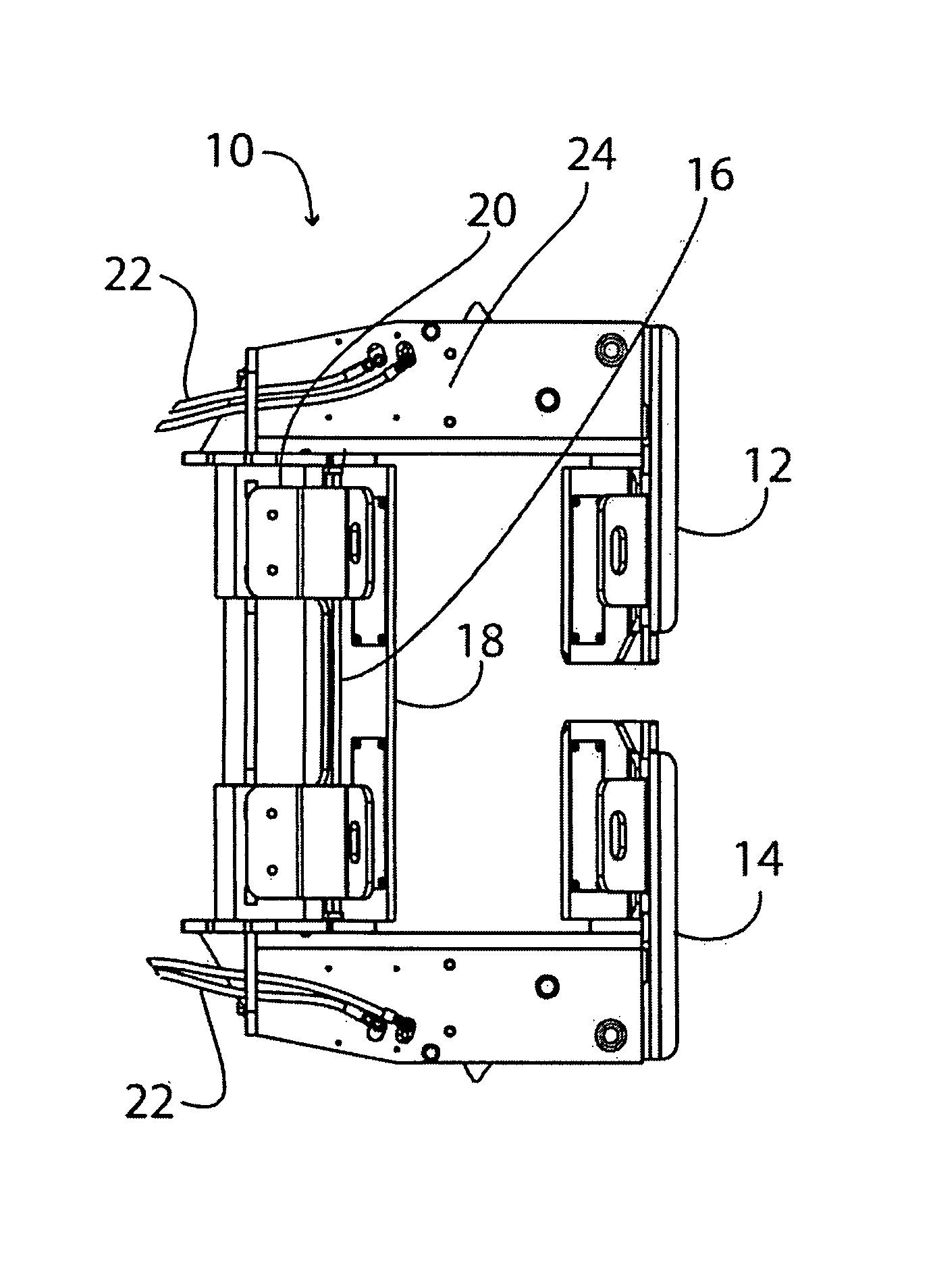

This soft capture cradle is useful for moving an aircraft having a nose-wheel without contacting the strut, oleo or landing gear, only contacting the nose landing gear tire or wheel. The cradle comprises a front left capture gate; a front right capture gate; a forward motion safety bar; and a rear capture plate. A forward motion safety switch is connected to the forward motion safety bar. The switch is configured to disengage the throttle of an aircraft tug porter when the forward motion safety bar contacts the aircraft nose-wheel. The cradle also includes a means for moving the front left capture gate and front right capture gate between a cradle open position and a cradle closed position. The cradle further includes a means for moving the cradle between a cradle up position and a cradle down position. Still further, the cradle also has a gate lock and cradle locator safety switch configured to locate the cradle, configure to stop the “cradle down” movement when the cradle is lowered to the ground, and configured to prevent “cradle open” movement when the cradle is in the up position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B60B Class
- 236 Applications Filed
- 165 Patents Issued To-Date
- 69.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B60B Class
- 9.14 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 16, 2026 |
