Drill pipe handling assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 9, 2014
Issued Date -
N/A
app pub date -
Sep 3, 2009
filing date -
Sep 3, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance

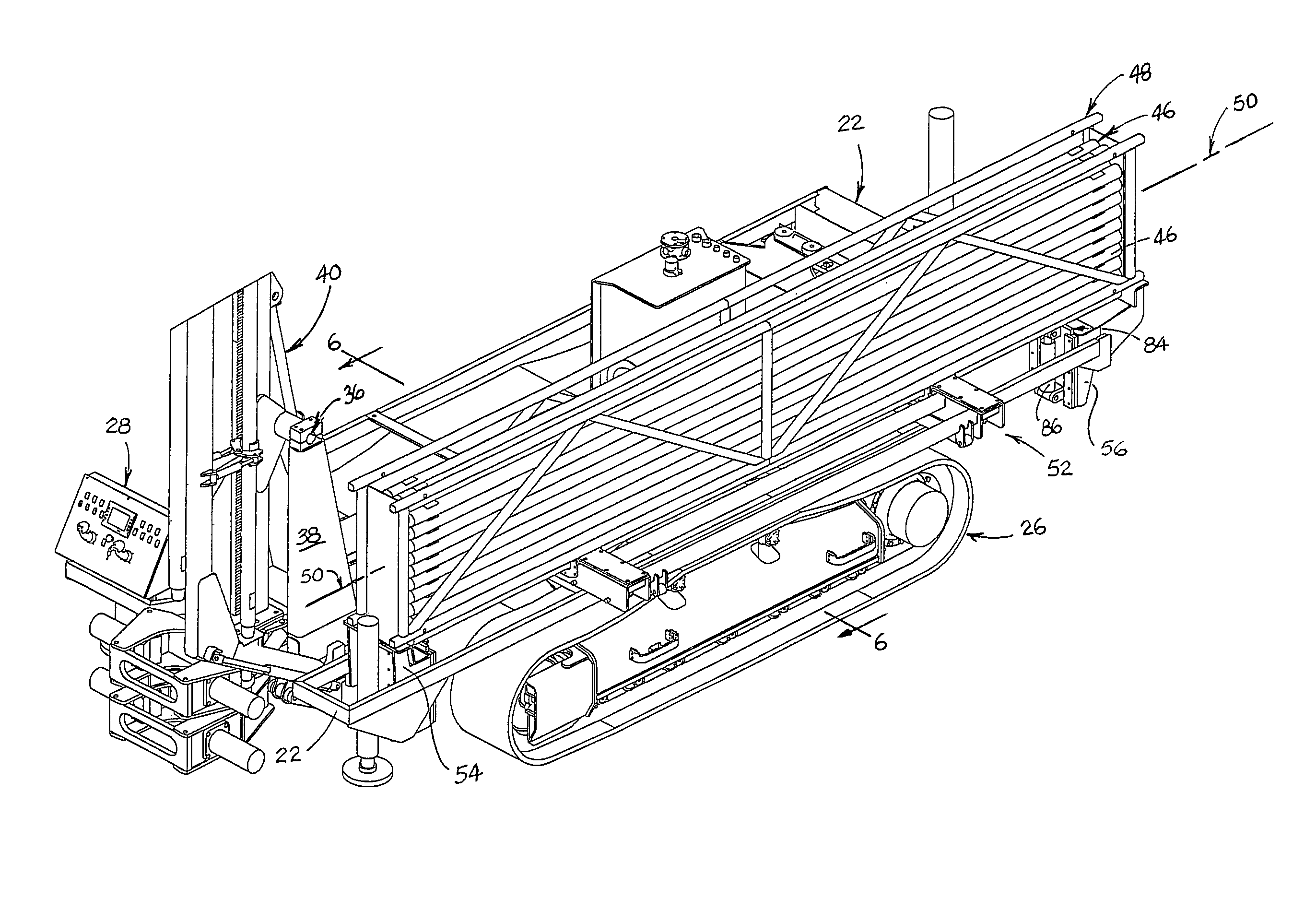

Abstract
An assembly for handling drill pipes includes a basket for drill pipes arranged in rows and columns, and a support table that has a drill pipe receiver. The support table moves laterally with respect to the drill pipe basket between a plurality of column alignment positions and an external position which locates the drill pipe receiver laterally outside of the basket. The support table also moves between the plurality of column alignment positions and the external position. The drill pipe handling assembly also includes a drill pipe elevator assembly and a loader arm assembly comprising a loader arm having a pipe gripper. The loader arm moves between a table alignment position in which the pipe gripper may grab or release a drill pipe when the support table is in the external position and a drilling alignment position in which the pipe gripper may grab or release a drill pipe.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- E21B Class
- 5.02 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 9, 2026 |
