Thermally responsive switch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 2, 2014
Issued Date -
N/A
app pub date -
Aug 8, 2007
filing date -
Aug 10, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

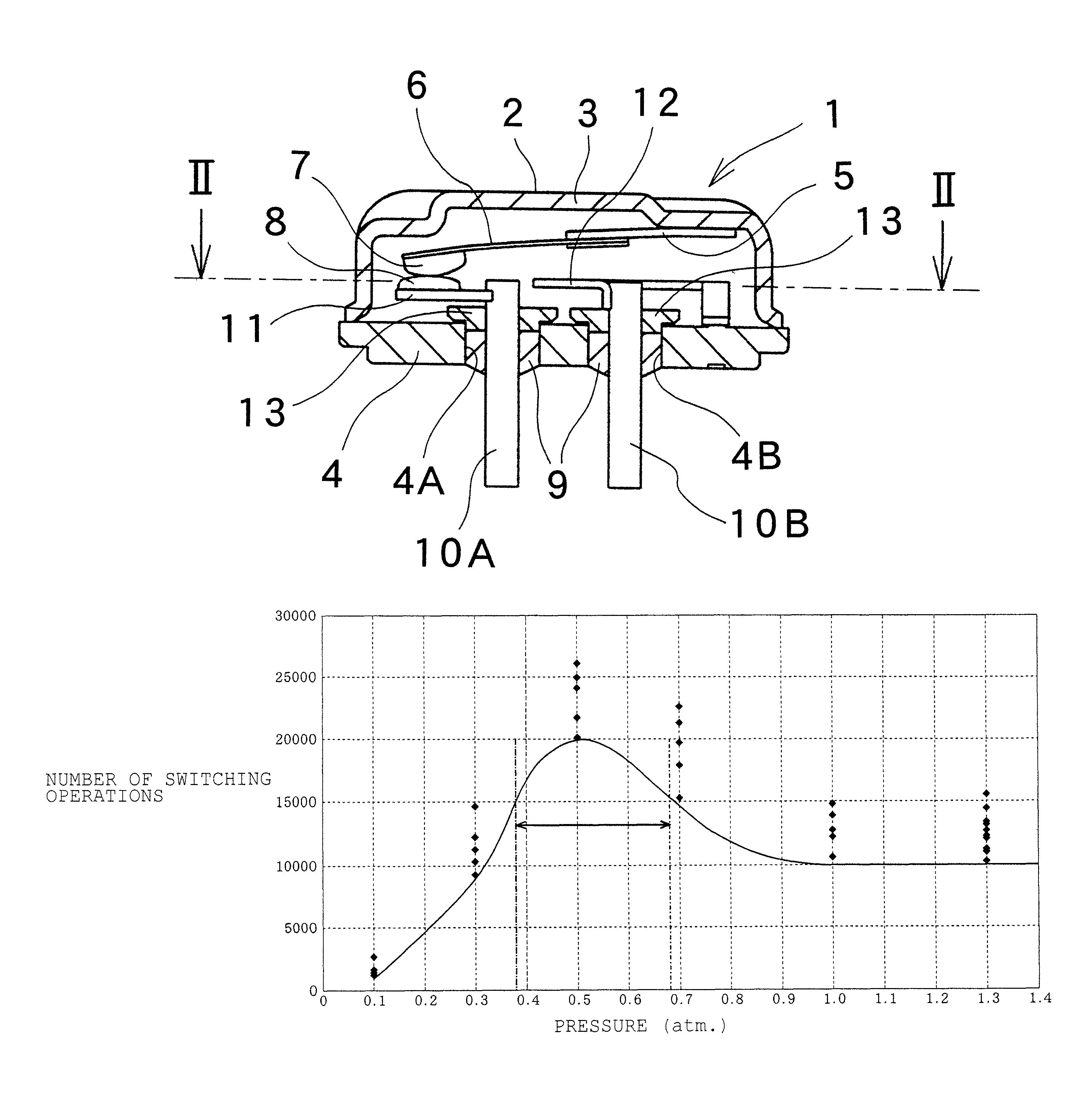

A thermally responsive switch includes a container including a metal housing and a header plate, at least one conductive terminal pin inserted through a hole of the header plate, a fixed contact fixed to the terminal pin, a thermally responsive plate having one of two ends conductively connected via a support to an inner surface of the container and reversing a direction of curvature at a predetermined temperature, and at least one movable contact electrically conductively secured directly to the other end of the thermally responsive plate. Each contact is comprised of a silver-cadmium oxide system contact. The container is filled with a gas containing helium ranging from 50% to 95% so that an internal pressure of the container ranges from 0.38 atmosphere to 0.68 atmosphere at room temperature such that arc generated during opening of the contacts moves on surfaces of the contacts without spreading from the contacts.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2007 Application Filing Year
- H01H Class
- 1197 Applications Filed
- 739 Patents Issued To-Date
- 61.74 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01H Class
- 10.35 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 2, 2026 |
