Evacuation sled
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 2, 2014
Issued Date -
N/A
app pub date -
Apr 20, 2012
filing date -
Apr 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

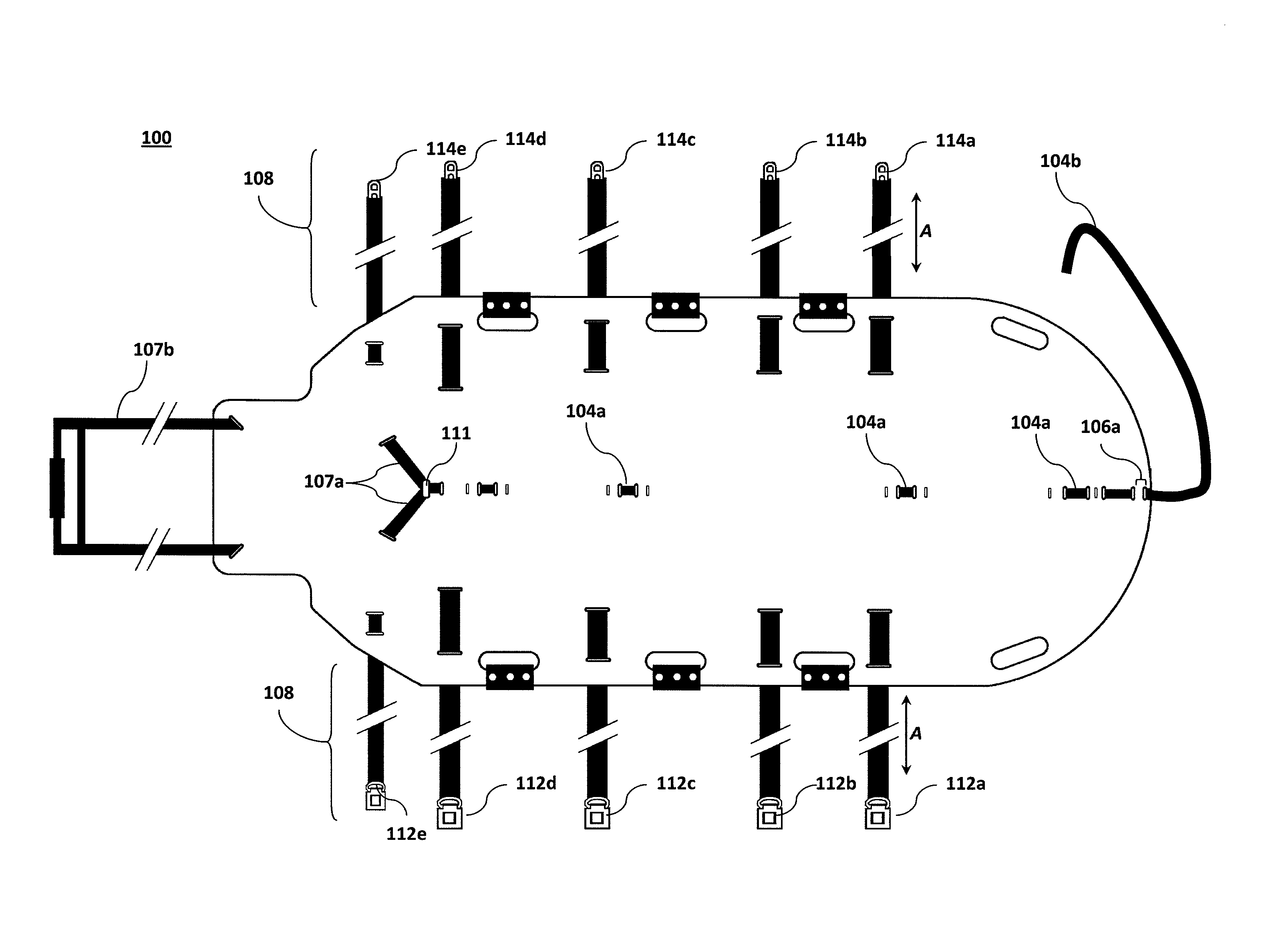

An evacuation sled for non-ambulatory patients preferably including a sheet having a plurality of handholds disposed about the left and right side edges of the sheet, each handhold comprising an opening with a reinforcement above the opening. A plurality of patient retention straps are coupled to the sheet and are configured to secure a patient in the sheet when the sheet is curved upward about the patient. A pull strap is coupled through a head of the sheet and is configured to permit a person to drag the patient strapped to the sheet. Preferably, a foot strap is affixed to the head pull strap and coupled to the foot of the sheet. The foot strap is configured to cause, when tension is applied to the head pull strap, at least one portion of the plastic sheet foot to raise upward and at least partially enclose the feet of the patient.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2012 Application Filing Year
- A61G Class
- 438 Applications Filed
- 348 Patents Issued To-Date
- 79.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 12 Citation Count
- A61G Class
- 60.27 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 2, 2026 |
