Folded merchandising unit and blank
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 25, 2014
Issued Date -
N/A
app pub date -
Dec 31, 2012
filing date -
Dec 30, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

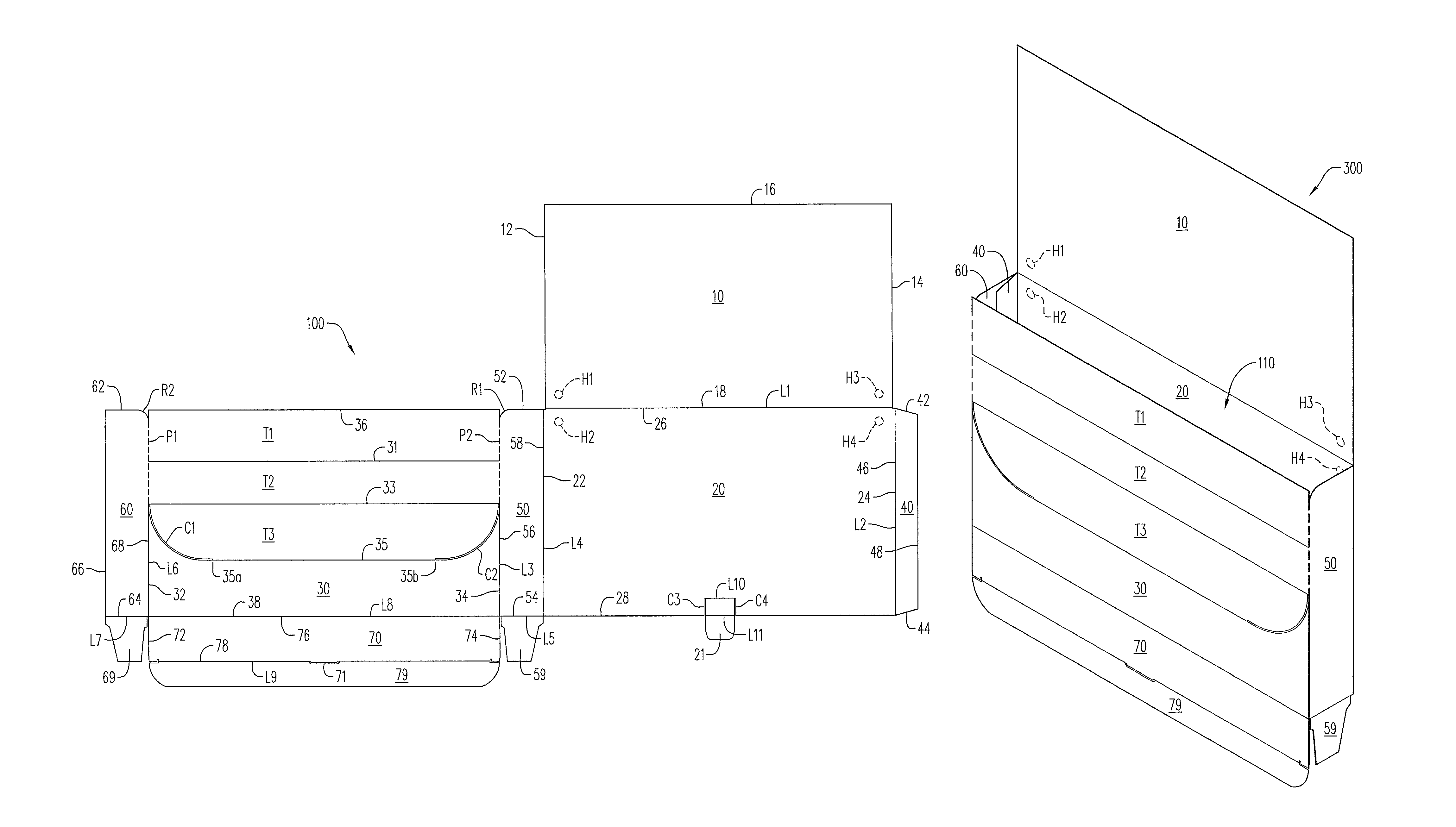

A display unit including a front panel, an outer back panel, a bottom panel and side panels; first, second and third connected reinforcing panel sections folded into superposing relation to the outer back panel, the bottom panel and the front panel, respectively, such that a double-panel reinforcement is established on a portion of the display unit; wherein the first, second and third connected reinforcing panel sections are also connected with the front panel along a first fold line defined between the front panel and the third reinforcing panel section; an inner back panel is connected and folded into superposing relation with the outer back panel along a second fold line; and wherein a depth of the display unit is defined between the front panel and the outer back panel and the second connected reinforcing panel section extends an entirety of the depth between the front panel and the outer back panel.
