Clutch assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 25, 2014
Issued Date -
N/A
app pub date -
Feb 22, 2011
filing date -
Apr 1, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

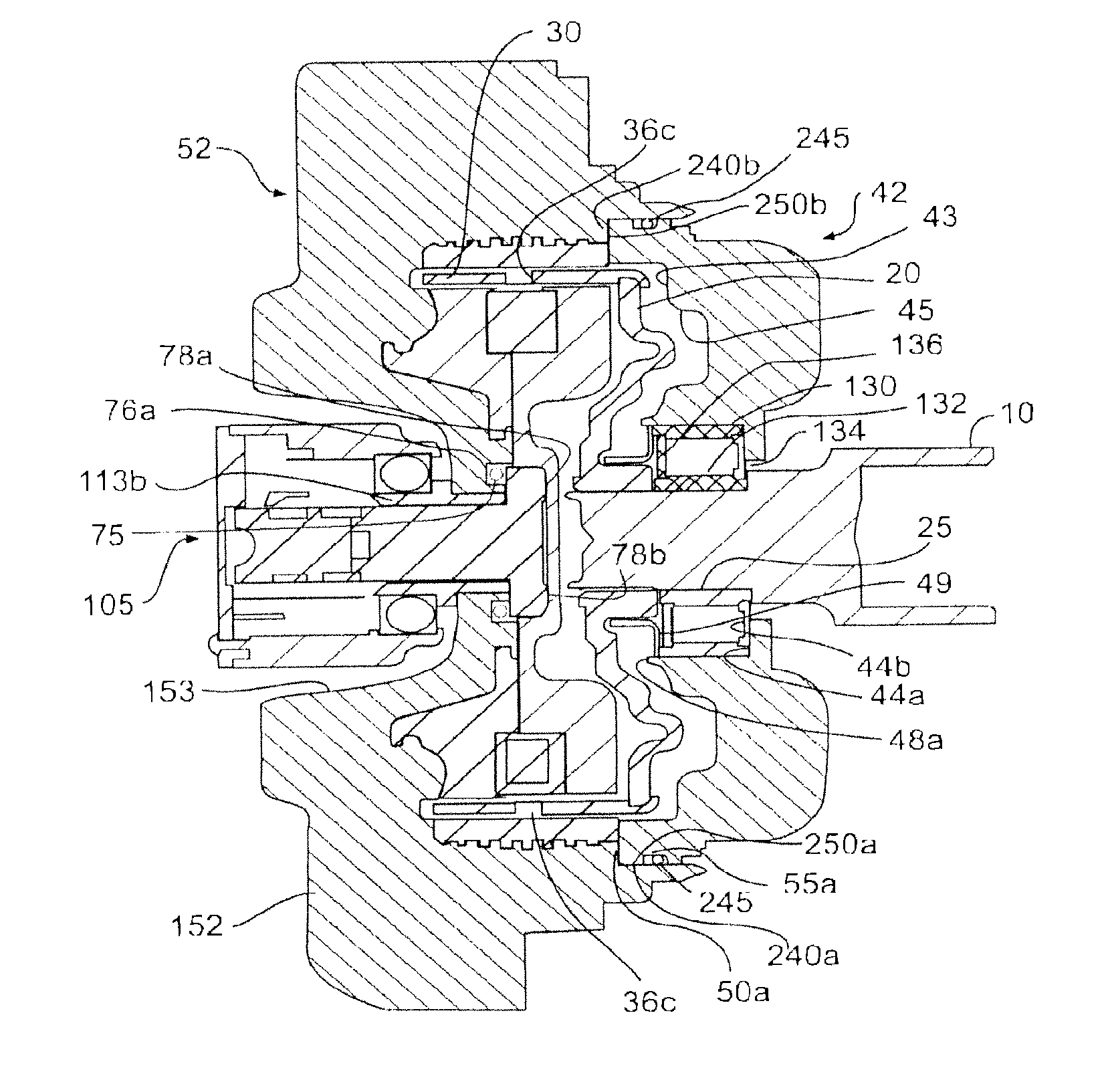

A viscous fluid clutch for use as a clutch for a cooling fan for a vehicle, the clutch includes an input shaft, a rotor assembly, a first housing portion, a second housing portion, a coil assembly, and a brush box. The rotor assembly is coupled to the input shaft. The first housing portion is coupled to the second housing portion and the second housing portion is rotatably disposed on the input shaft. The first and second housing portions define a fluid reservoir for receiving the rotor assembly and a viscous fluid, preferably of the magnetorheological type. The coil assembly is coupled to the first housing portion. The brush box is operably coupled to the coil assembly. When the coil assembly is energized by the brush box, a magnetic field is created that acts upon the magnetorheological fluid to vary the torque transfer of the input shaft to the housing and the fan connected thereto.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- F16D Class
- 12.28 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 25, 2026 |
