Invisible sliding door link structure

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 8893436
SERIAL NO

13933863

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

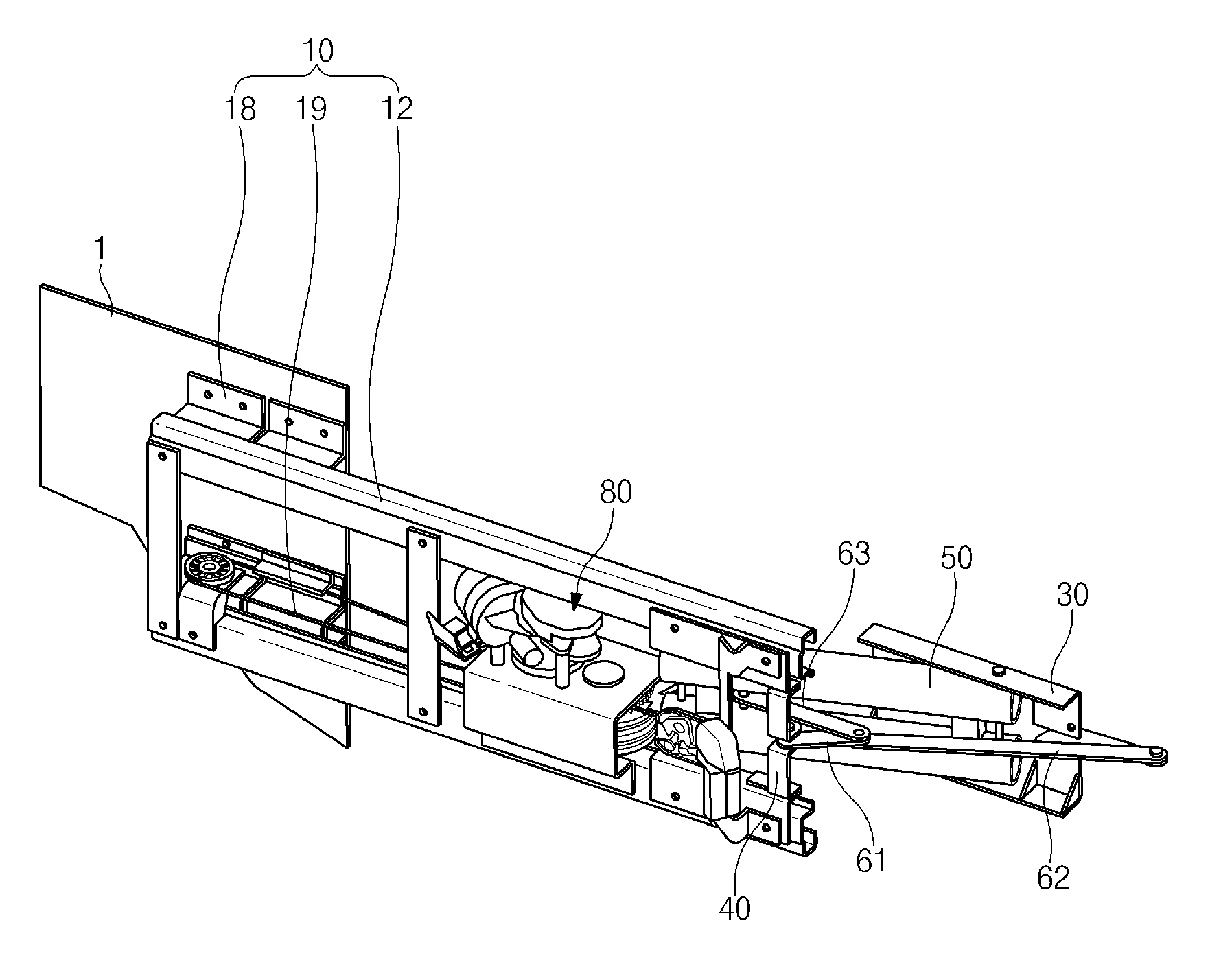

An invisible sliding door link structure includes a door bracket disposed at an inner surface of a door sliding part of a vehicle body to open or close, a body bracket provided in an invisible slider to slide the door, a main arm with one end connected to one side of the door bracket and the other end connected to one side of the body bracket, a first link having one end rotatably connected to the other side of the body bracket, a second link having one end rotatably connected to the other end of the first link and the other end connected to the other side of the door bracket, and a third link having one end rotatably connected to one side of the main arm and the other end connected to a hinge point at which the first and second links are connected to each other.
