Differential mobility spectrometer and methods thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 18, 2014
Issued Date -
N/A
app pub date -
Nov 21, 2012
filing date -
Nov 29, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

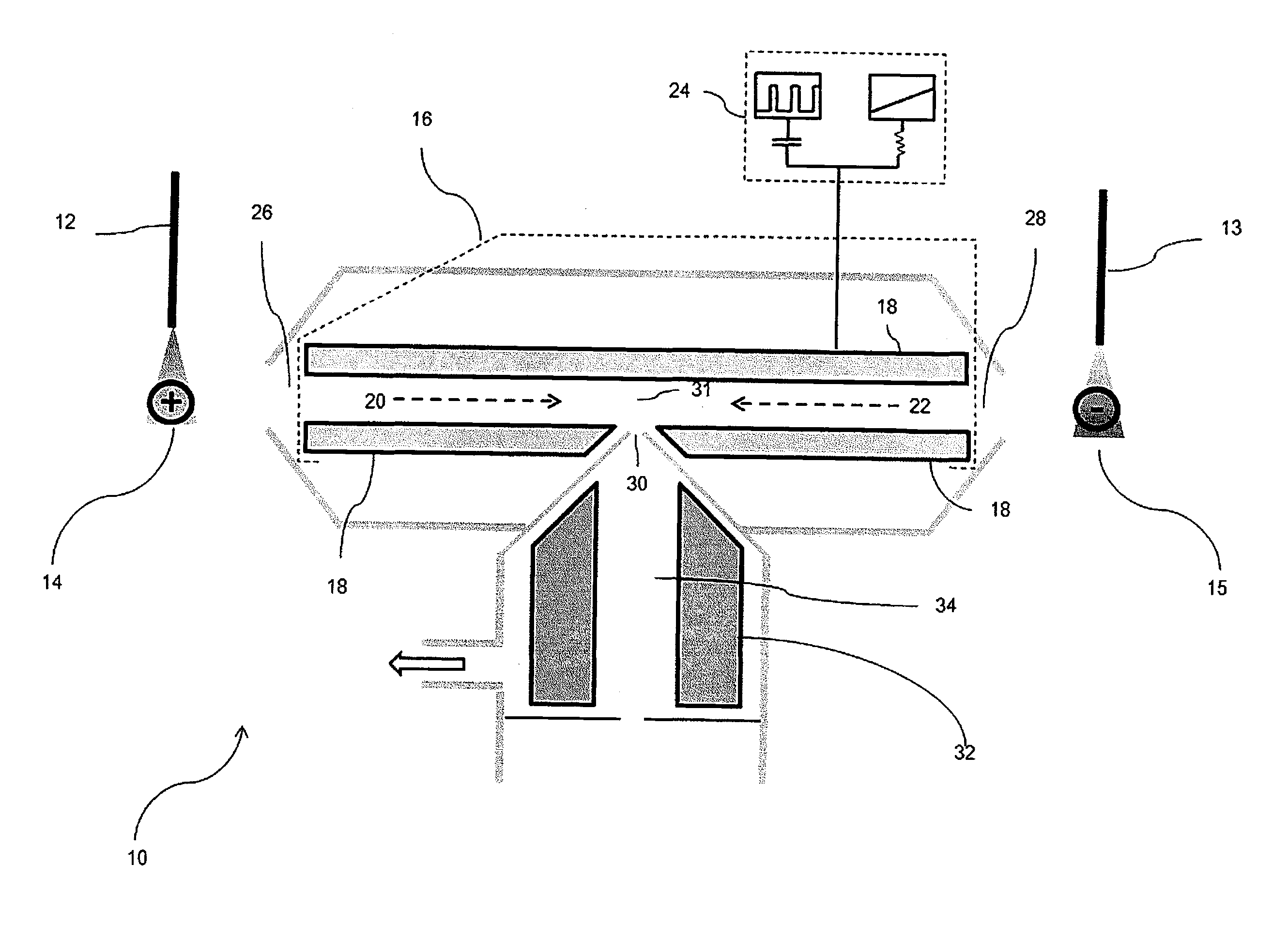

An apparatus and method are provided for analyzing samples of molecules. The apparatus comprises a mass analysis system including a differential mobility spectrometer, which includes at least three filter electrodes defining two ion flow paths where the filter electrodes generate electric fields for passing through selected portions of the sample ions based on the mobility characteristics of the sample ions. The differential mobility spectrometer also includes a voltage source that provides DC and RF voltages to at least one of the filter electrodes to generate the electric field, a first and a second ion inlet that receive sample ions, and an ion outlet that outputs the selected portion of the sample ions. A mass spectrometer receives some or all of the selected portion of the sample ions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- H01J Class
- 2054 Applications Filed
- 1685 Patents Issued To-Date
- 82.04 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01J Class
- 10.83 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 18, 2026 |
