LED omni-strip lighting system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 11, 2014
Issued Date -
N/A
app pub date -
Mar 20, 2012
filing date -
Mar 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

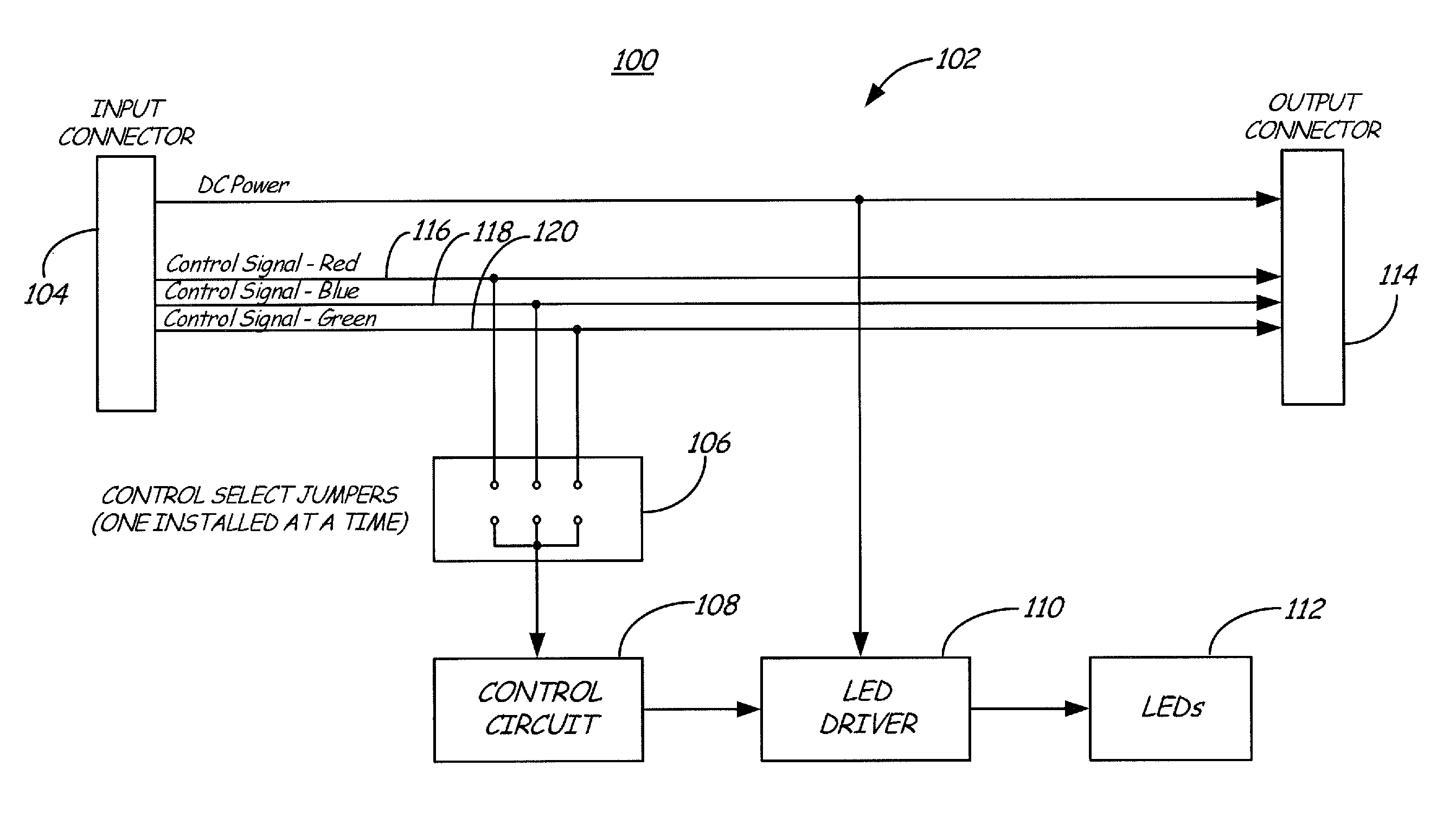

An LED-based lighting system is provided for aquariums, habitats, farms, terrariums, and/or enclosures for keeping animals and/or plant life and/or other enclosures. In one embodiment, the LED-based lighting system includes an LED circuit board or strip adapted to provide a particular wavelength of light, such as, red, blue, or green light. Several circuit boards or strips may be strung together end-to-end or side-to-side and, while each circuit board or strip may be adapted for providing a particular wavelength of light, the several circuit boards or strips may be adapted to provide several wavelengths of light, e.g. a mixture of spectrum. The several circuit boards, while providing different wavelengths of light, may be substantially the same in most respects except for the LED's positioned on the strip and a jumper selectively connected to provide a control signal line adapted for controlling the particular wavelength LED installed on the respective strip.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F21V Class
- 6 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 11, 2026 |
