Sliding door handle with pivot pins
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 4, 2014
Grant Date -
N/A
app pub date -
Oct 15, 2012
filing date -
Oct 14, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

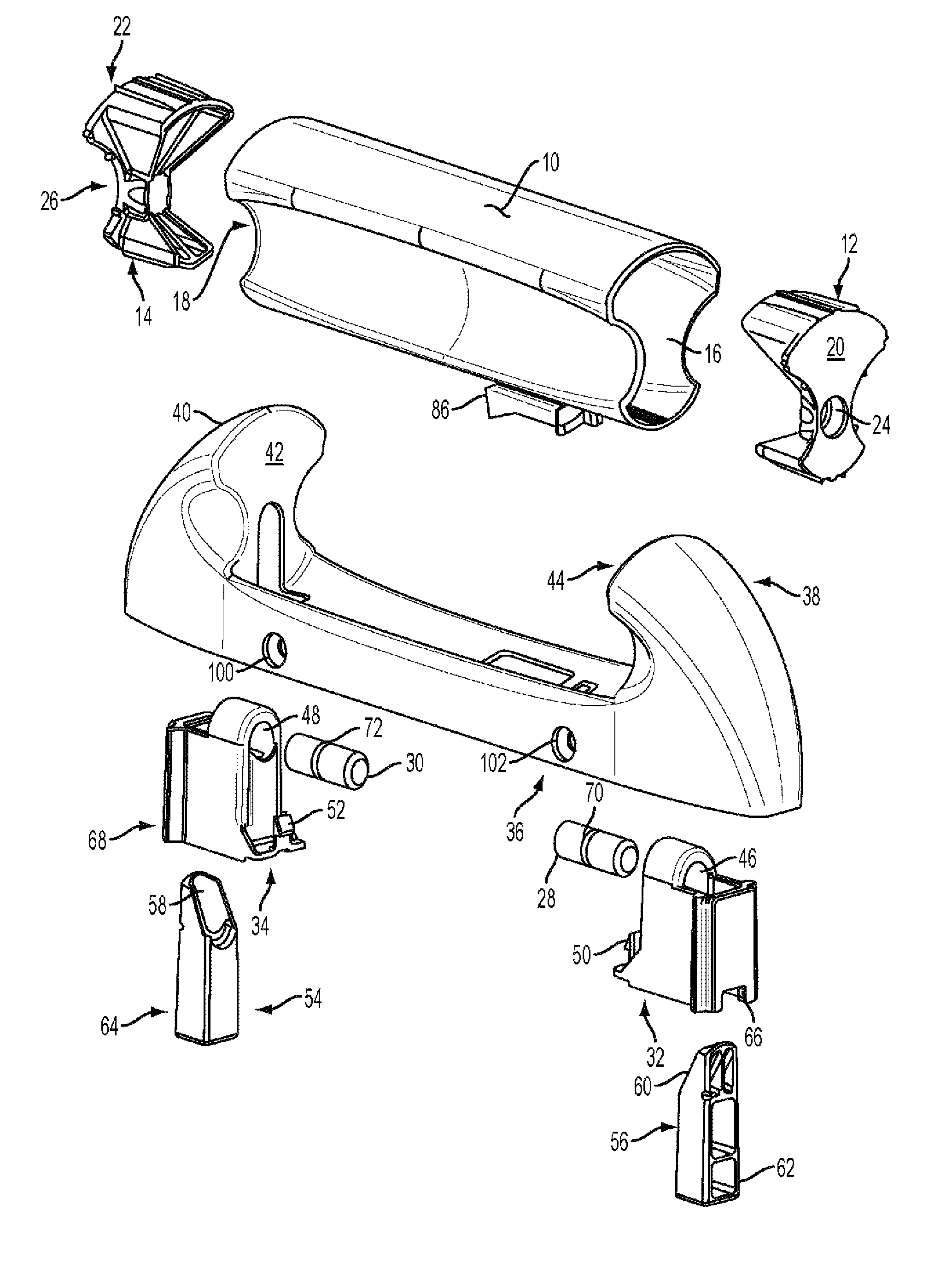

A door handle for a sliding door having a handle and a handle base having a pair of opposed arms. The arms are provided with corresponding clips, each clip having an opening that receives a corresponding pivot pin. The handle pivots between the arms on the pivot pins. The pins are axially aligned and slidably installed in the clips for sliding motion to extend towards and retract away from each other, into and out of engagement with the handle. With the pins extended, they engage the handle, preferably with each pin engaging a corresponding insert in each end of the handle. With the pins retracted, the handle may be removed from between the arms of the handle base. The pins are preferably held in the extended position with corresponding wedges that snap into the corresponding clips behind the pins.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2012 Application Filing Year
- E05B Class
- 532 Applications Filed
- 445 Patents Issued To-Date
- 83.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- E05B Class
- 5.28 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 4, 2026 |
