Spraying member, spraying device comprising such a member and spraying installation comprising such a device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 7, 2014
Grant Date -
Aug 5, 2010
app pub date -
Apr 22, 2008
filing date -
Apr 23, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

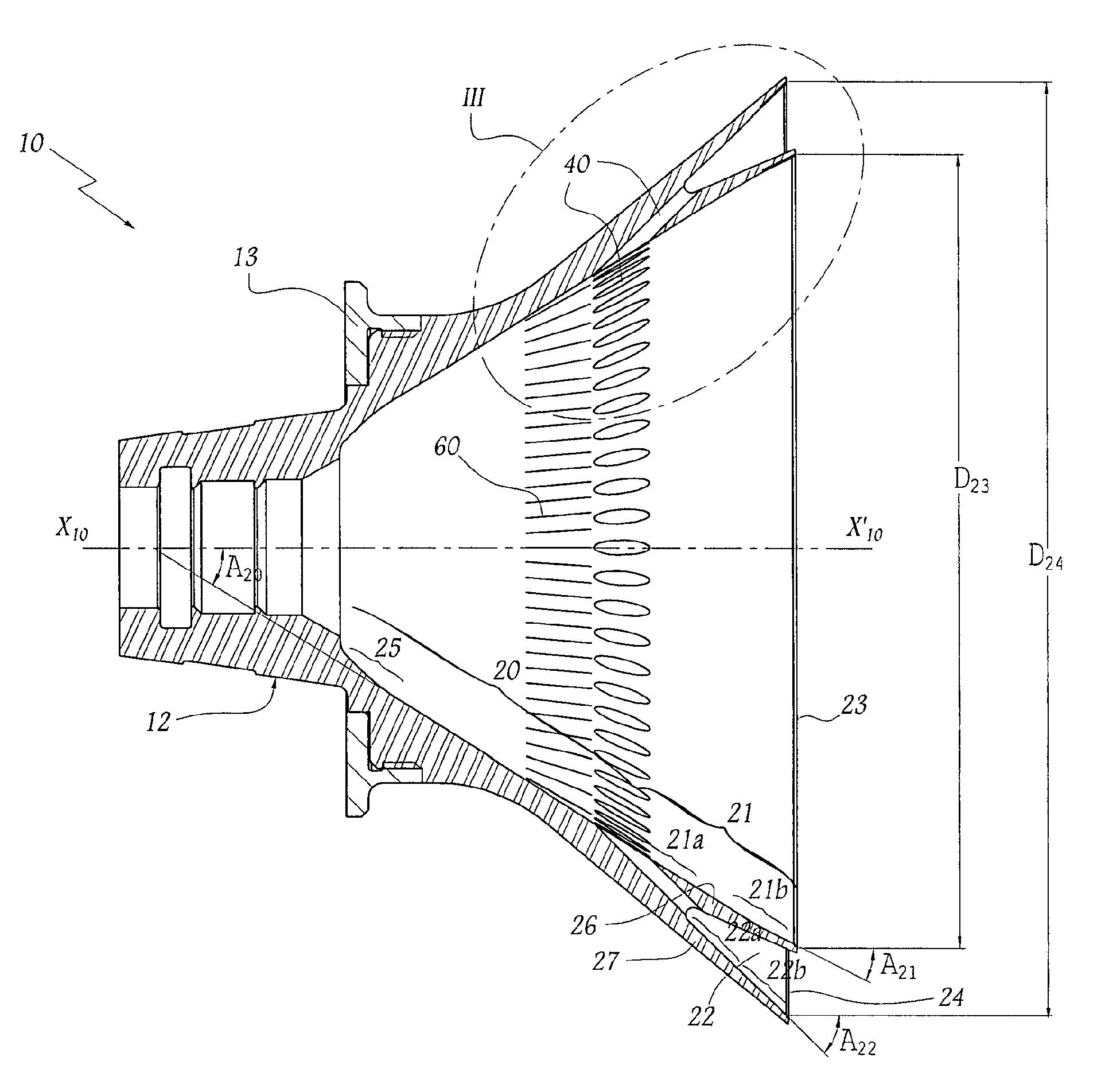

The invention relates to a member (10) for spraying a coating product comprising a primary surface (20) for spreading the product and at least two secondary, inner (21) and outer (22) surfaces for spreading the product that extend downstream of the primary surface (20), the primary (20) and secondary (21, 22) surfaces being coaxial (X10-X10), the downstream portions of the secondary surfaces (21, 22) defining an inner spraying edge (23) and an outer spraying edge (24). The downstream portions (21b, 22b) of the secondary surfaces (21, 22) have, relative to one another, directions (A21, A22) that are overall divergent towards the downstream direction. The inner edge (23) has a diameter substantially smaller than the diameter of the outer edge (24).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- B05B Class
- 674 Applications Filed
- 389 Patents Issued To-Date
- 57.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05B Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 7, 2026 |
