Hopper car gate assembly with a door having vertically spaced sections
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 7, 2014
Grant Date -
Sep 12, 2013
app pub date -
Mar 9, 2012
filing date -
Mar 9, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

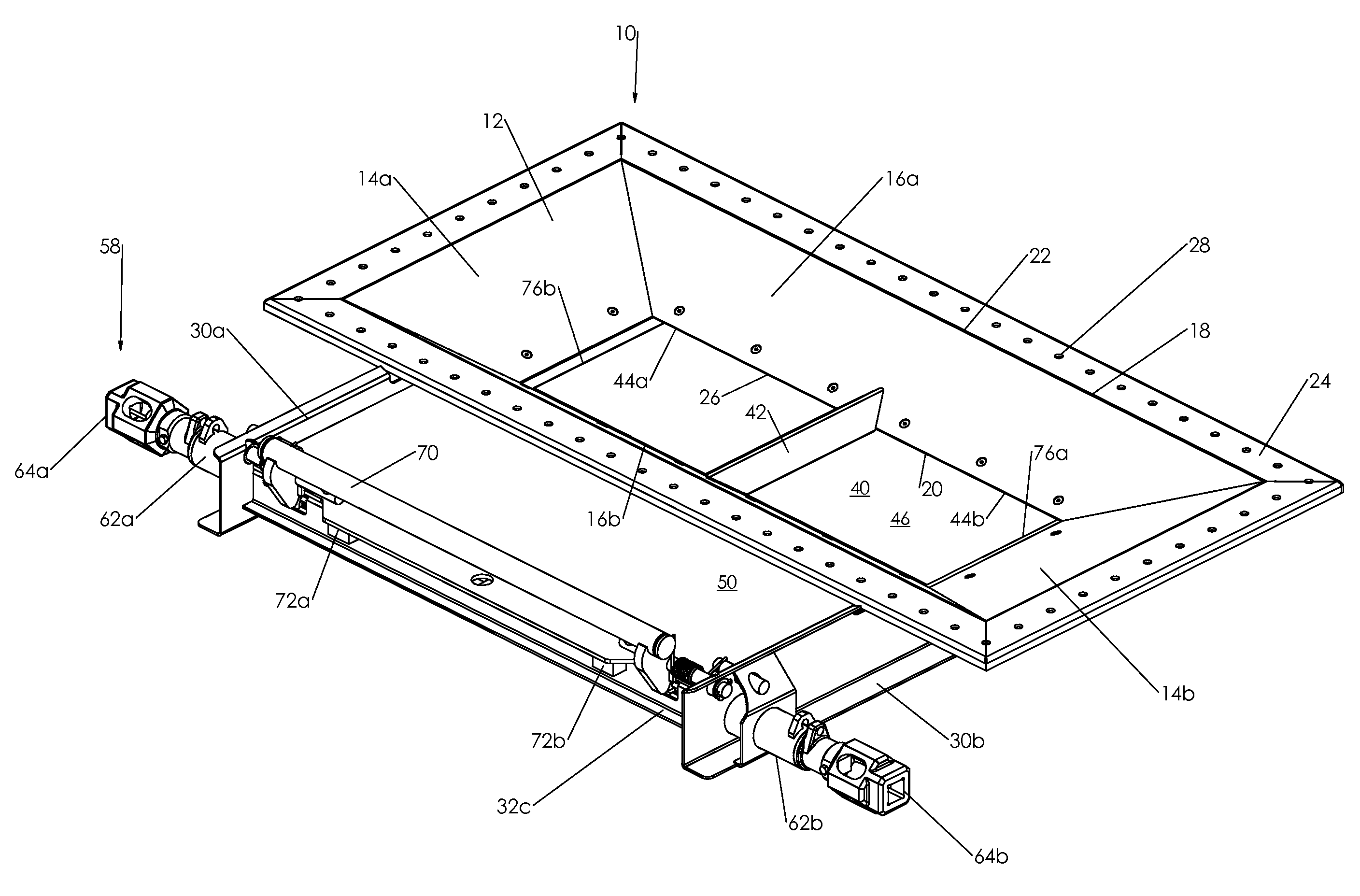

A hopper car gate assembly having a frame with opposed side walls, opposed end walls, and top and bottom openings. The gate assembly has a door with a lower section that is supported by the frame and an upper section that is vertically spaced from the lower section. The door is moveable between a closed position, in which the lower section blocks the bottom opening, and an open position, in which cargo can exit through the bottom opening. A drive mechanism engages the upper section of the door to move the door between its closed and open positions. Preferably, the door has a middle section that is joined to and extends upward from the lower section, and the upper section is joined to and extends away from the middle section.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B61D Class
- 103 Applications Filed
- 84 Patents Issued To-Date
- 81.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B61D Class
- 9.72 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 7, 2026 |
