Thermal compensation system for a milling machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 30, 2014
Grant Date -
Jan 3, 2013
app pub date -
Jun 28, 2011
filing date -
Jun 28, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

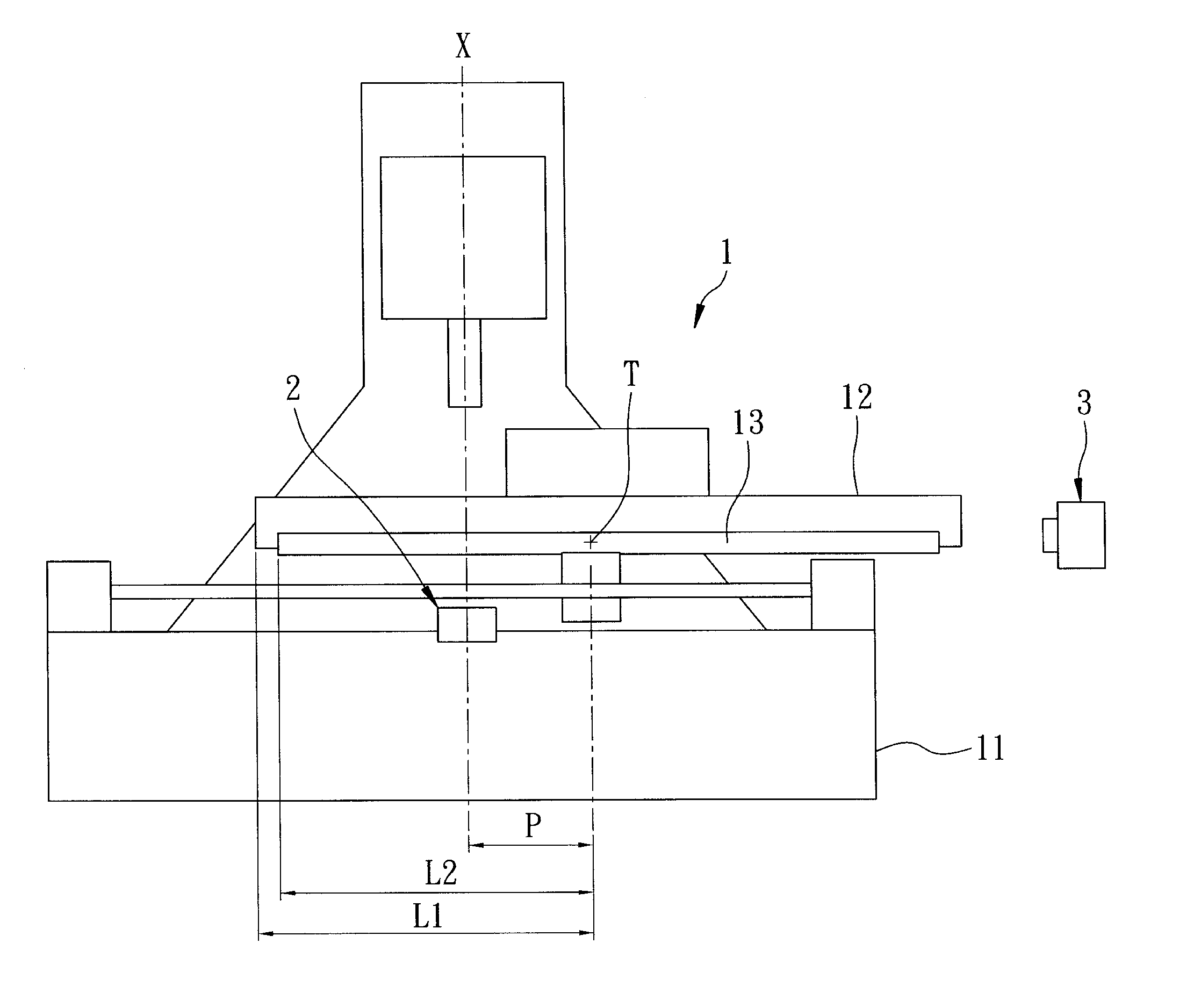

A milling machine has a base, a work platform mounted movably on the base, and a ruler mounted on the work platform. The work platform is movable relative to a base axis. The thermal compensation system includes a sensor and a control unit. The sensor is configured to be mounted on the base for sensing a position of each of the work platform and the ruler relative to the base axis. The control unit is coupled to the sensor, and determines a work platform displacement and a ruler displacement according to the positions sensed by the sensor. The control unit further calculates a compensation value based on the work platform displacement and the ruler displacement. The control unit is configured to correct the position of the work platform relative to the base axis according to the compensation value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B23Q Class
- 534 Applications Filed
- 360 Patents Issued To-Date
- 67.42 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23Q Class
- 11.62 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 30, 2026 |
