Storage device carrier ejection spring
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 23, 2014
Grant Date -
Jul 11, 2013
app pub date -
Jan 11, 2012
filing date -
Jan 11, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

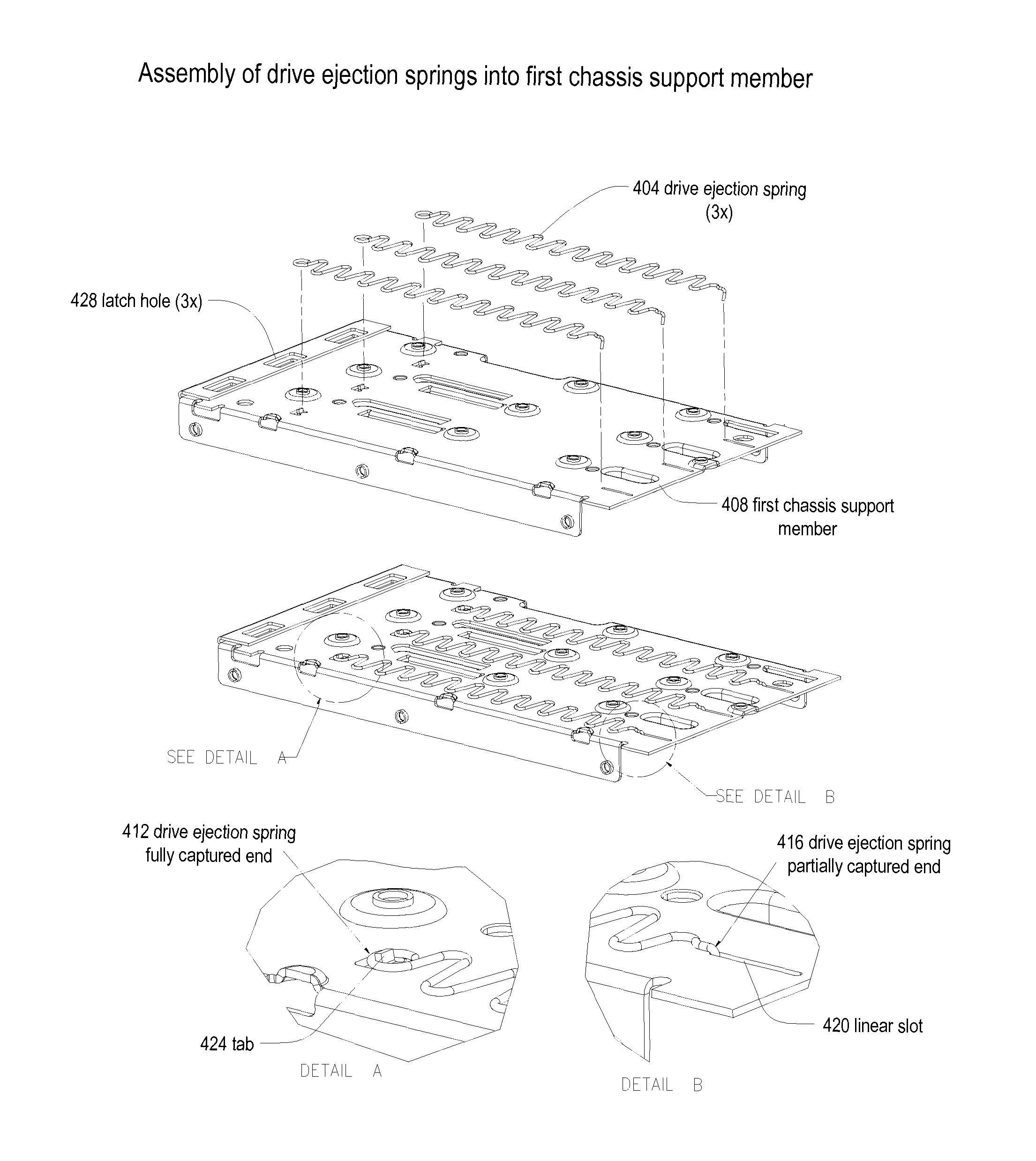

A spring for ejecting a storage device module from a chassis is provided. The spring includes a first end, where the first end is held captive when the spring is installed in the chassis. The spring includes a second end, opposite the first end, and a body between the first and second ends. The body is formed with serpentine bends proceeding linearly between the first and second ends and in a common plane with the first end. The second end is oriented orthogonal to the common plane. The spring is in expansion when the storage device module is inserted into the chassis. The storage device module pushes against the second end when the storage device module is fully inserted into the chassis. The spring exerts force outward from the chassis when expanded.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F16F Class
- 593 Applications Filed
- 491 Patents Issued To-Date
- 82.80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16F Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 23, 2026 |
