Mortise lock assembly and method of assembling
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 23, 2014
Grant Date -
Apr 25, 2013
app pub date -
Oct 24, 2011
filing date -
Oct 24, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

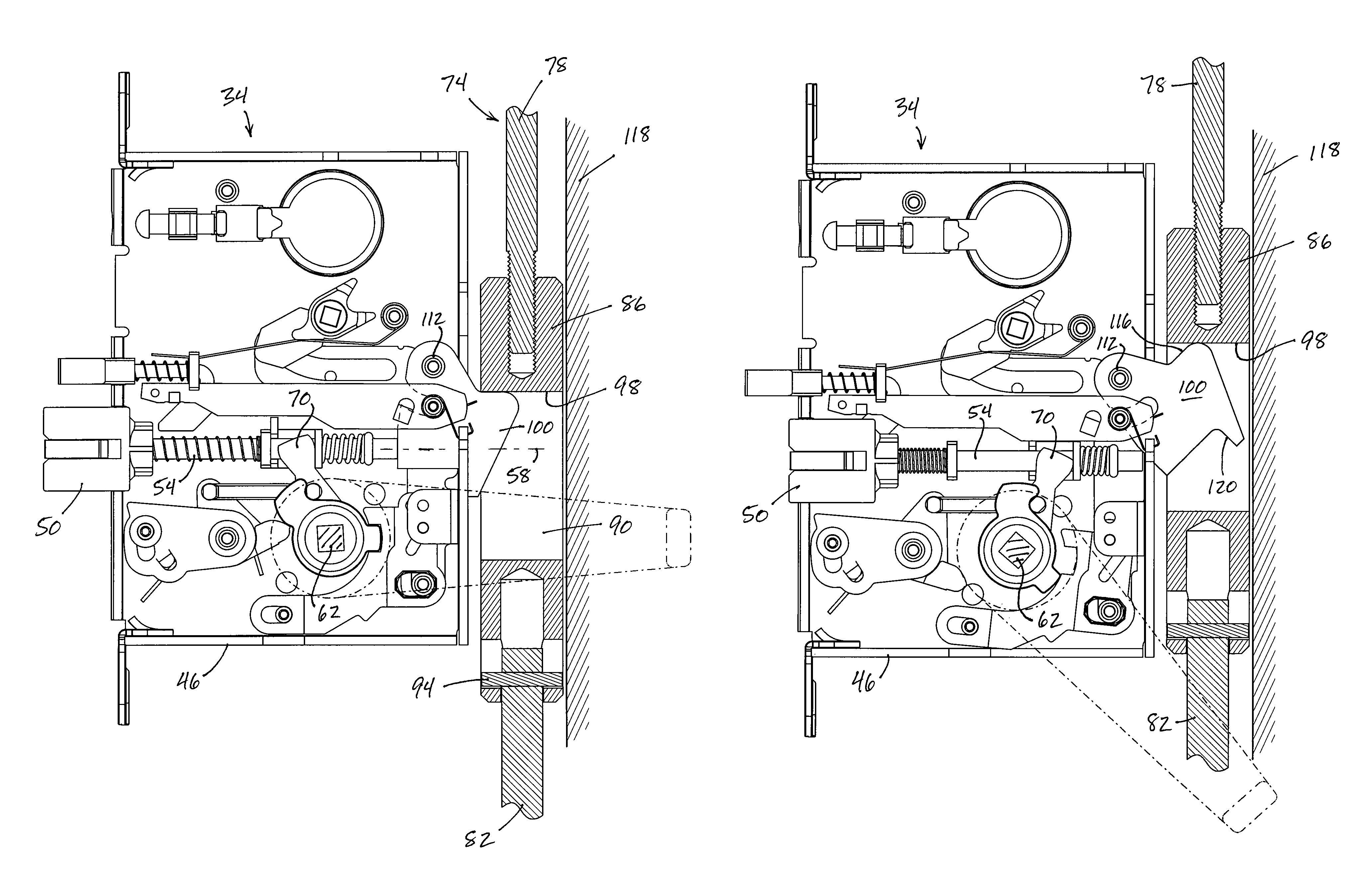

A mortise lock comprising: a case having opposite inner and outer sides which are horizontally spaced when the mortise lock is mounted on a door; a latchbolt supported by the case for movement between extended and retracted positions, the latchbolt extending from the outer side of the case; an element configured to be operably connected to a latch adjacent a top or a bottom of the door, the element being movably supported by the case and partially extending from the inner side of the case; and a latchbolt bar movably supported by the case, the latchbolt bar having an outer end operably connected to the latchbolt for moving the latchbolt between the extended and retracted positions, and the latchbolt bar having an inner end operably connected to the element for moving the element when the latchbolt bar moves the latchbolt.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- E06B Class
- 528 Applications Filed
- 346 Patents Issued To-Date
- 65.54 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 14 Citation Count
- E06B Class
- 77.35 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 23, 2026 |
