Graphite/titanium hammer with wooden handle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 16, 2014
Grant Date -
May 17, 2012
app pub date -
Jan 17, 2012
filing date -
Jan 30, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

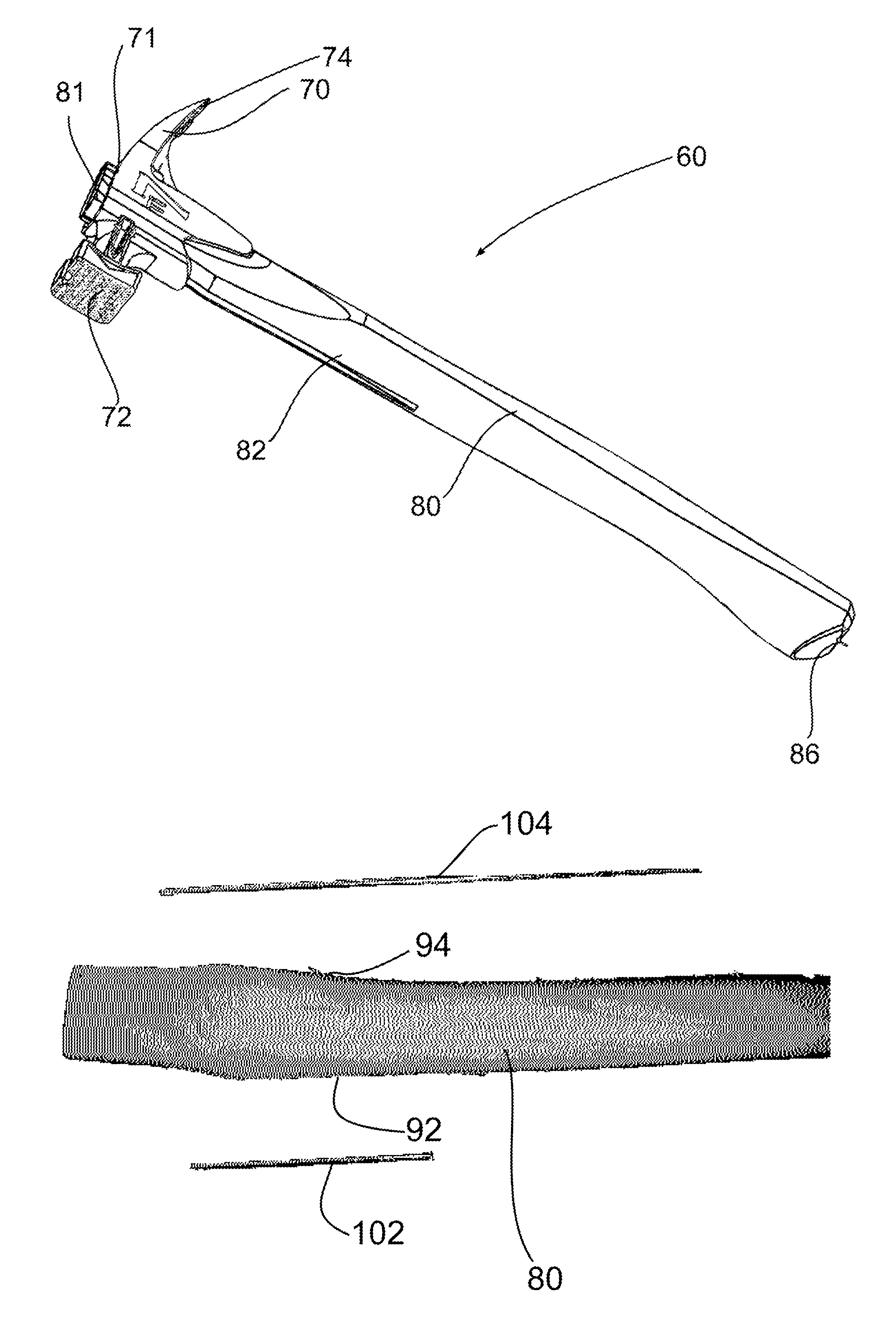

According to disclosure, the hammer has a head made of striking grade steel. The handle comprises a 6-4 titanium hand grip and over strike plate insert in the handle and under the head. The head has an eye for accommodating a handle which in a preferred embodiment is made of a graphite titanium composite comprising from about 60 to 65% graphite by weight and from about 35 to 45% 6-4 titanium. The head of hammer has a claw end and a striking head. Also disclosed is a method of manufacturing the device of the disclosure comprising using one or more bladder compressed carbon fiber processes to anneal the graphite, titanium and steel components of the hammer.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B25D Class
- 86 Applications Filed
- 76 Patents Issued To-Date
- 88.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B25D Class
- 4.48 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 16, 2026 |
