Data center
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 16, 2014
Issued Date -
N/A
app pub date -
Jun 13, 2011
filing date -
Dec 31, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

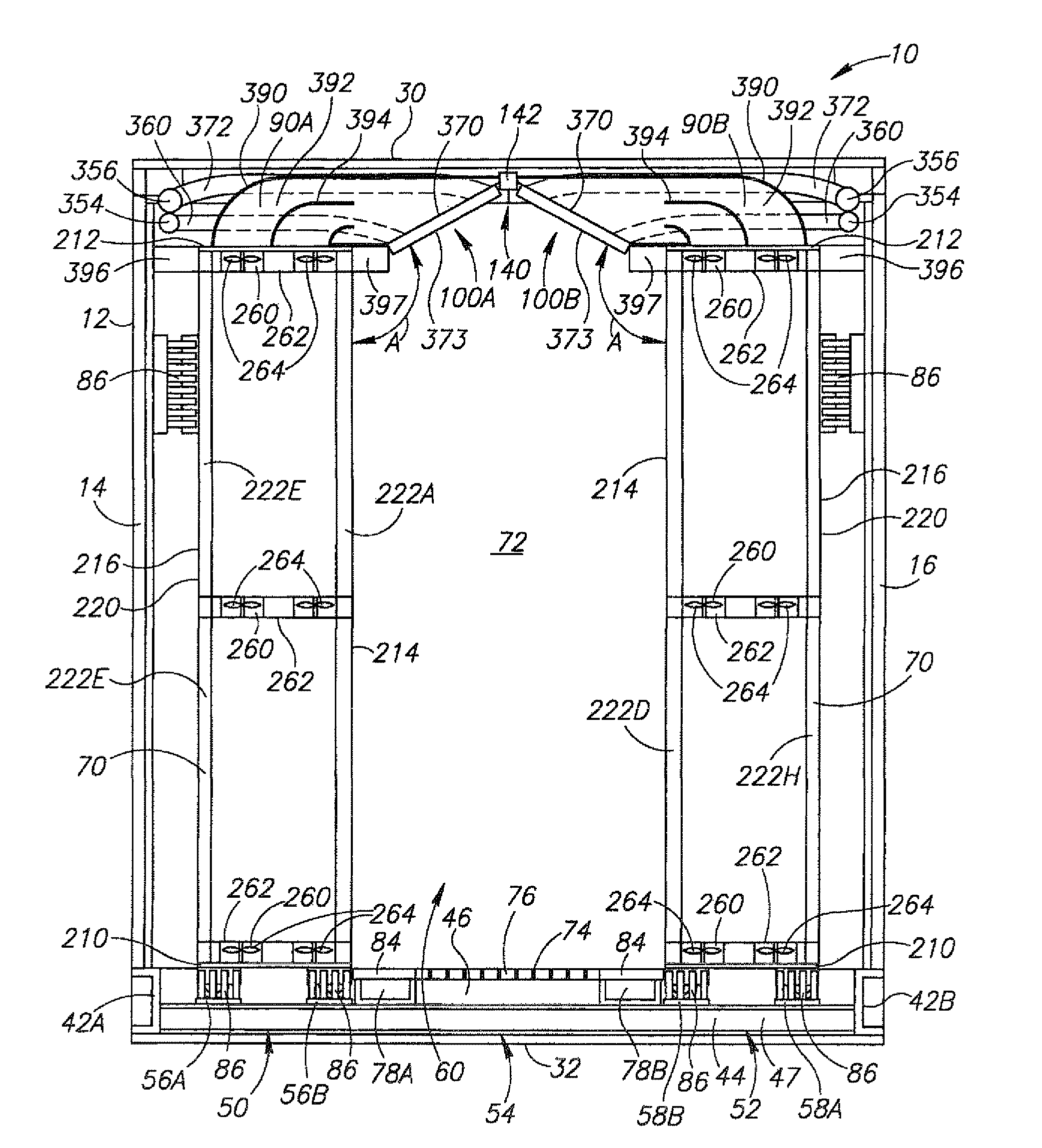

A data center inside a shipping container having a lower plenum and an upper plenum in its interior. Heated air in the upper plenum exits therefrom into a plurality of heat exchangers adjacent thereto. Air cooled by the heat exchangers travels toward and enters the lower plenum. The data center includes a plurality of carriages each having an equipment receiving portion located between an open bottom portion in open communication with the lower plenum, and an open top portion in open communication with the upper plenum. Fans inside each of the carriages draw cooled air up from the lower plenum into the open bottom portion of the carriage, blow the cooled air up through the equipment receiving portion thereby cooling any computing equipment received therein, and vent the cooled air through the open top portion into the upper plenum.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F25D Class
- 471 Applications Filed
- 332 Patents Issued To-Date
- 70.49 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- F25D Class
- 8.94 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 16, 2026 |
