Container auto-lock system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 9, 2014
Grant Date -
Dec 26, 2013
app pub date -
Aug 27, 2013
filing date -
Oct 18, 2010
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

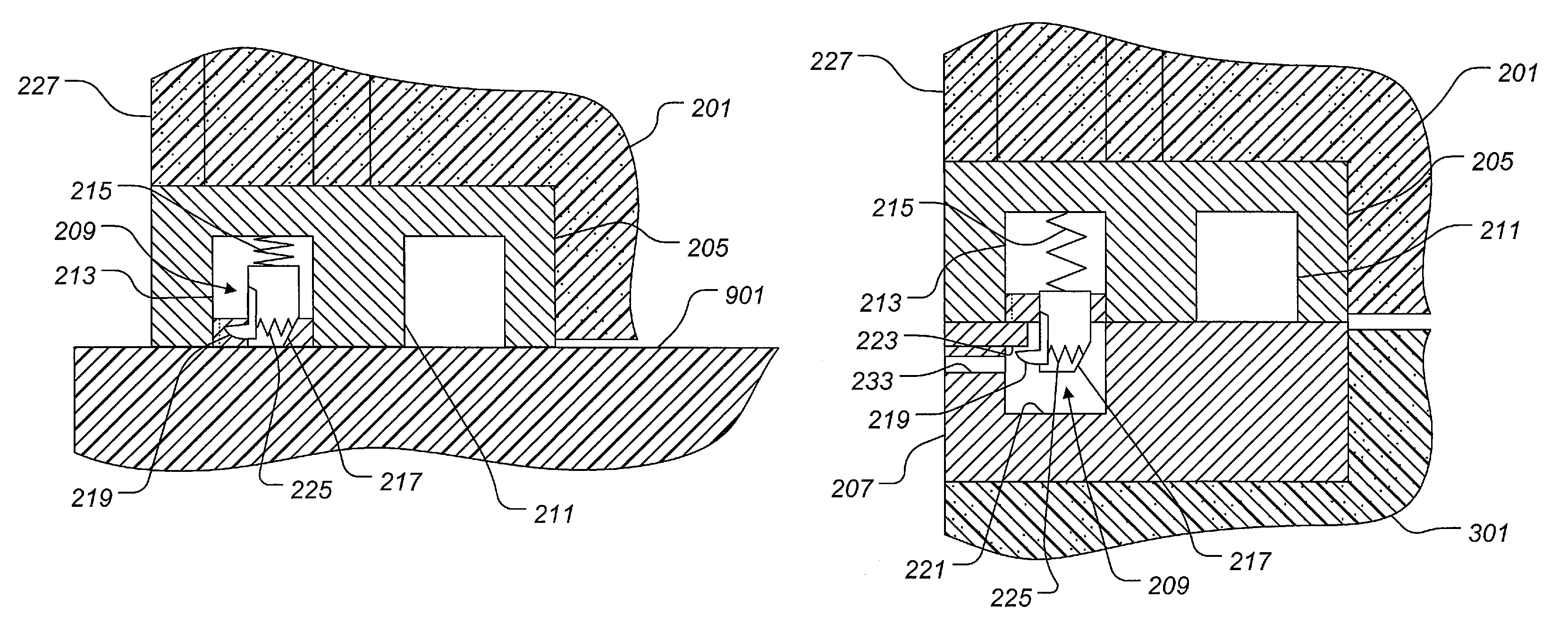

A container according the present application includes a container auto-lock system. The container auto-lock system is integrated into the outboard apertures of the lower castings of a domestic sized container. The container auto-lock system includes a locking mechanism which is configured to recess when the container is lowered onto a surface lacking an acceptable receiving aperture. The locking mechanism is also configured to automatically lock when placed on top of a domestic sized container. The container auto-lock system is configured to be compatible with international sized container by allowing the inboard apertures on each lower casting to be available for attaching the domestic container on top of an international container with a conventional locking device.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
BNSF RAILWAY COMPANY | 2500 LOU MENK DRIVE AOB 3 FORT WORTH TX 76102 |
International Classification(s)

- 2013 Application Filing Year
- B65G Class
- 1183 Applications Filed
- 1045 Patents Issued To-Date
- 88.34 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Kelly, Thomas P | Fort Worth, US | 27 | 416 |
# of filed Patents : 27 Total Citations : 416 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 7 Citation Count
- B65G Class
- 12.50 % this patent is cited more than
- 11 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 9, 2026 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
