Wheel axle assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 2, 2014
Grant Date -
N/A
app pub date -
Mar 25, 2011
filing date -
Mar 25, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

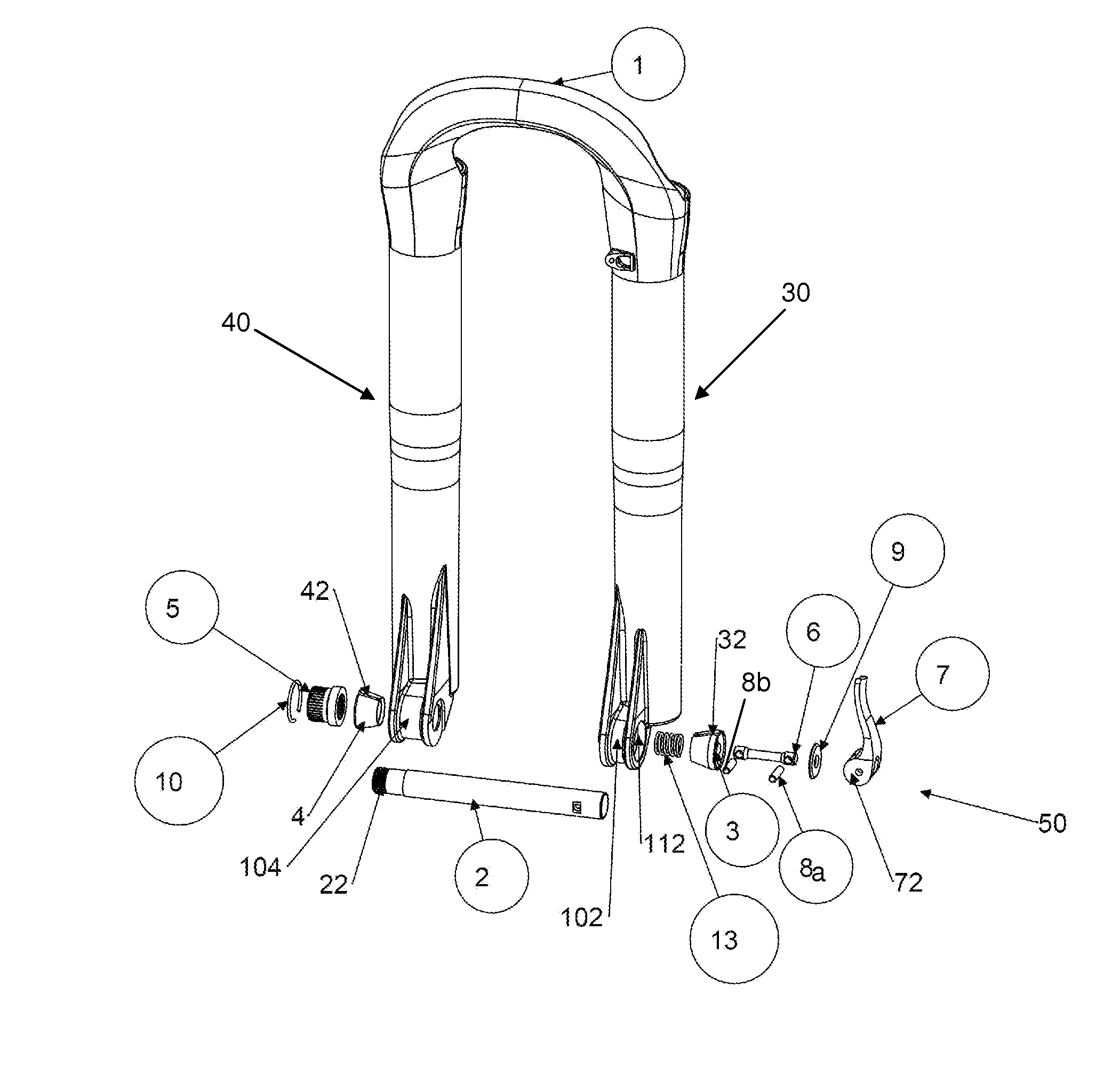

A wheel assembly quick release lever pivots against a thrust washer to apply a force along the length of an axle. The thrust washer is pressed toward a sleeve nut at the opposite end of the axle, which displaces the thrust washer relative to the axle, drawing the sleeve nut and a pair of compression rings toward one another deeper into conical cavities of dropouts. The radially outwardly facing surfaces of the compression rings firmly seat against the tapered cavities of the closed bore dropouts, and the radially inwardly facing surfaces of the compression rings firmly seat against the axle to provide resistance to rotational movement of the axle relative to the dropouts. The inboard surfaces of the dropouts seat against the load-bearing axle faces of the hub, which provides resistance to lateral movement.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B60B Class
- 236 Applications Filed
- 165 Patents Issued To-Date
- 69.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B60B Class
- 9.14 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 2, 2026 |
