Main body vise device in band saw machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 26, 2014
Grant Date -
Jul 19, 2012
app pub date -
Sep 30, 2010
filing date -
Oct 9, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

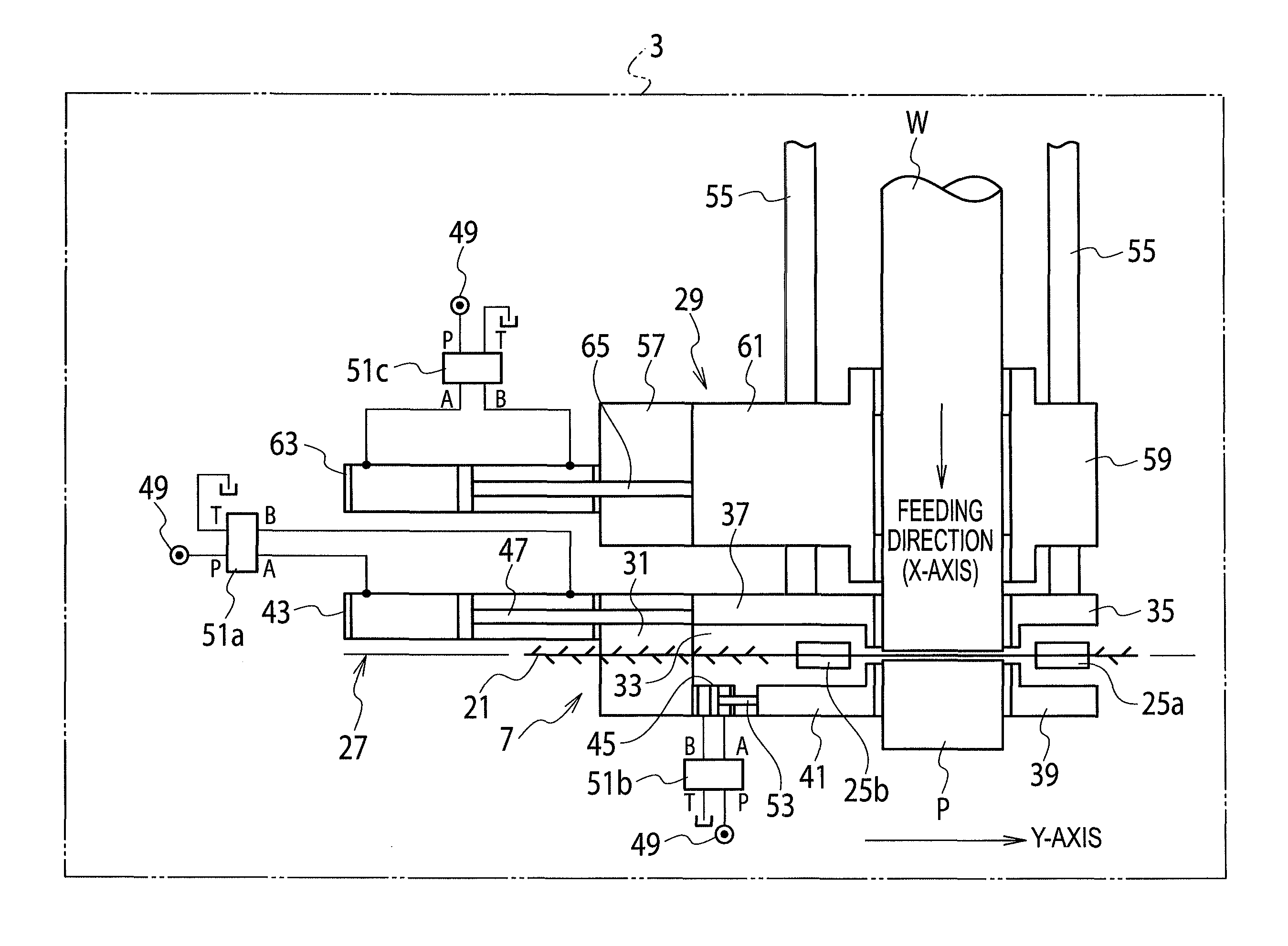

Disclosed is a main body vise device (7) in a band saw machine, characterized in that: a movable main body vise body (33) is provided to a main body vise bed (31); an upstream movable vise jaw (37) is provided integrally to this main body vise body (33), while a downstream movable vise jaw (41) is movably provided on a downstream side of the main body vise body (33); a first pressing/biasing module (43) capable of advancing and retreating the main body vise body (33) is provided; and a second pressing/biasing module (45) capable of advancing and retreating the downstream movable vise jaw (41) independently of the upstream movable vise jaw (37) is provided.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B26D Class
- 407 Applications Filed
- 202 Patents Issued To-Date
- 49.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B26D Class
- 21.05 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 26, 2026 |
