Sealer elements, detonators containing the same, and methods of making
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 5, 2014
Grant Date -
May 9, 2013
app pub date -
Mar 9, 2011
filing date -
Mar 9, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

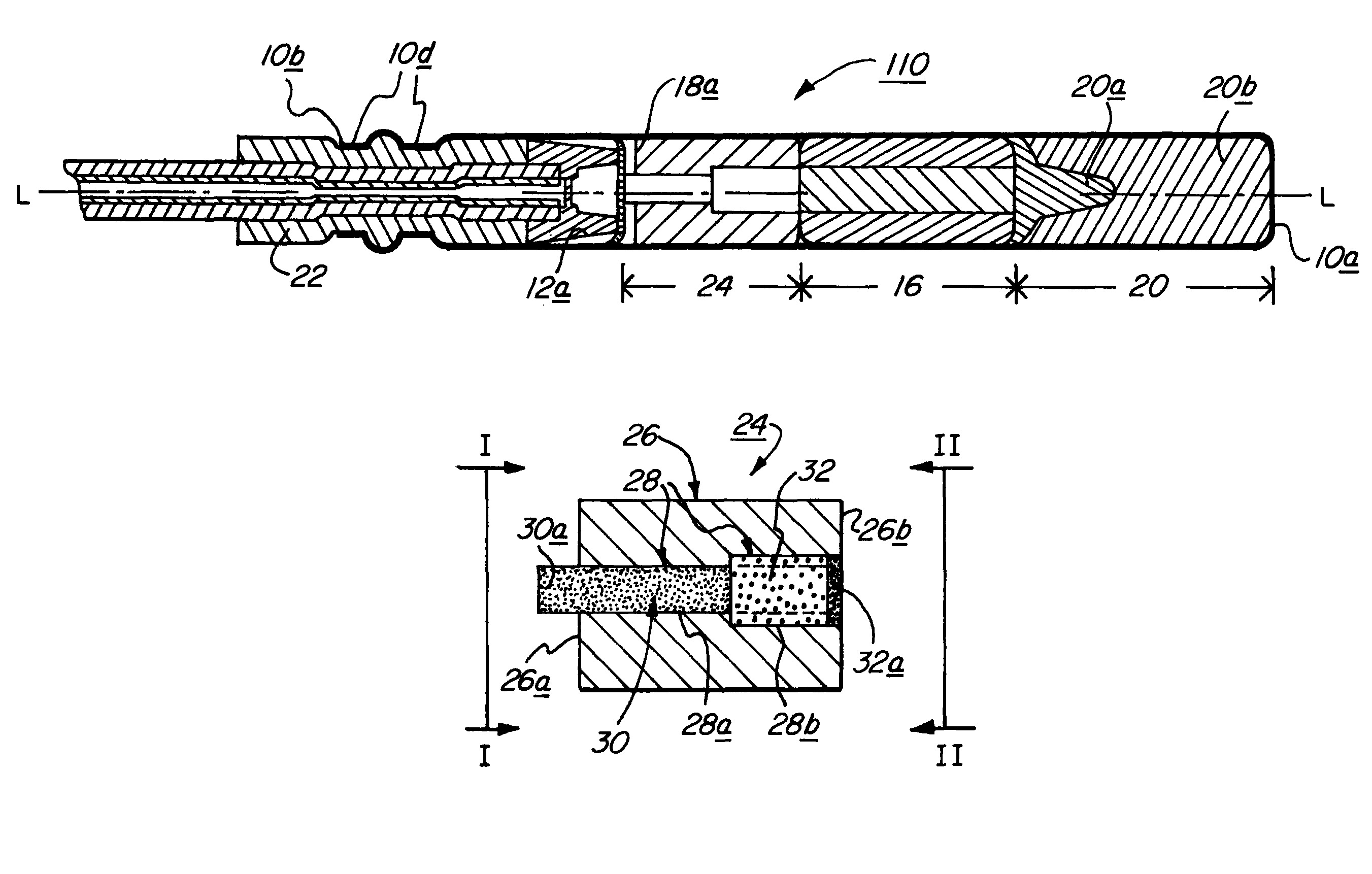

A gas-impermeable sealer element (24, 124) for a detonator or other explosive initiation device includes a non-reactive sleeve (26, 126) having a channel (28, 128) formed therein. A reactive material strip (30, 130) is sealed within the channel for transmission of an explosive's initiation signal through the sealer element (24, 124), either alone or in cooperation with transfer charges located at the input and/or output end of the non-reactive sleeve (26, 126). The reactive material strip (30, 130) comprises a reactive metal wire or other substrate (34) having on one or both sides thereof a layer of reactive material (30, 130, 36), either reactive metal foils which react exothermically when ignited, or a deposited fuel-oxidizer reactive material. The reactive materials, upon being energized, react exothermically in the absence of atmospheric oxygen or other extraneous oxidizer and so may be encapsulated, sealed or otherwise isolated from the atmosphere in use.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- C06C Class
- 6 Applications Filed
- 5 Patents Issued To-Date
- 83.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C06C Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 5, 2026 |
