Method for wireless data transmission between a measurement module and a transmission unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 29, 2014
Grant Date -
May 26, 2011
app pub date -
May 14, 2009
filing date -
May 14, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

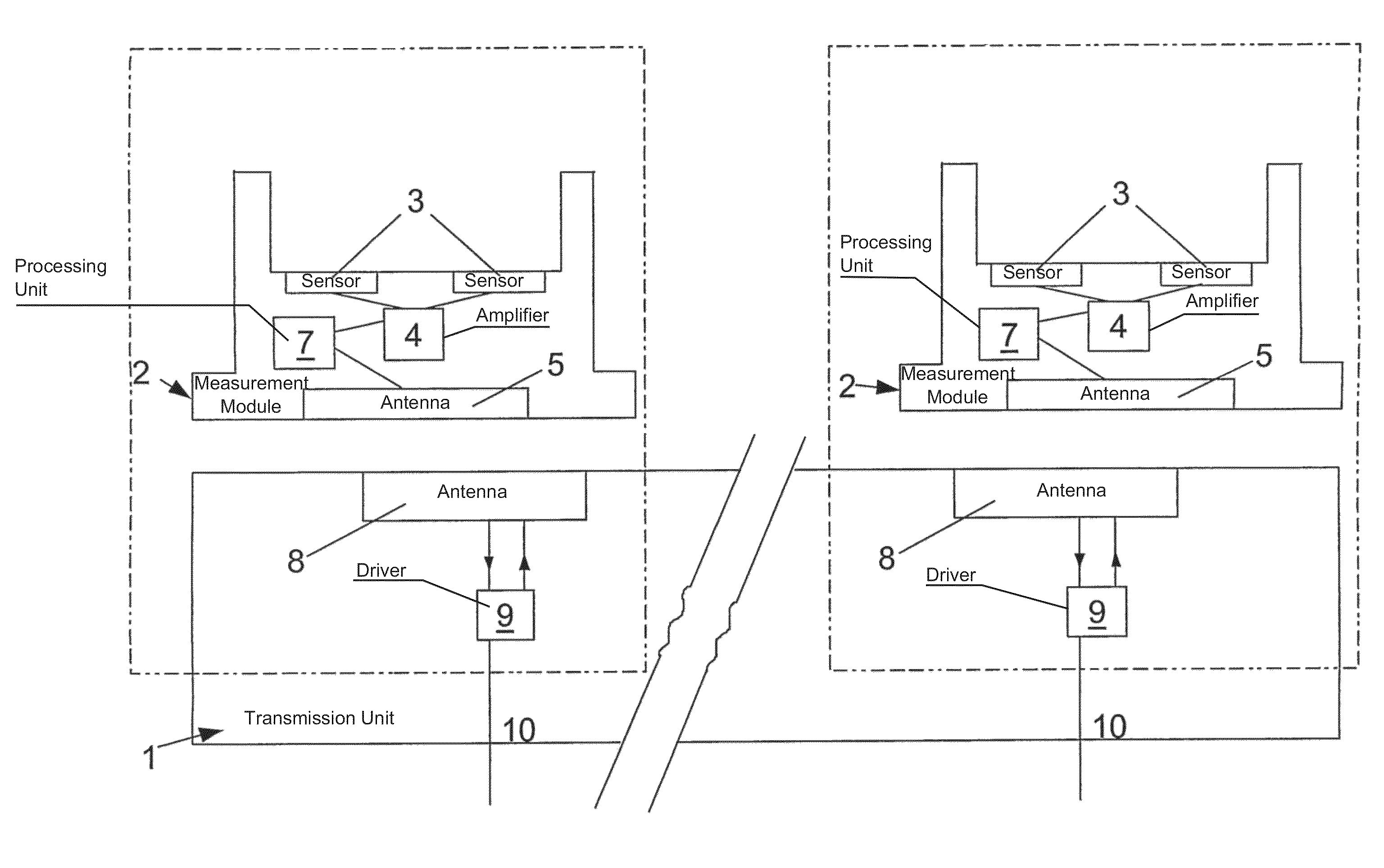

A method records and transmits data between a transmission unit that has a first antenna and a measurement module which has a sensor for recording measured variables and converts the measured variables into electric signals. Data is bi-directionally transmitted between the measurement module and the transmission unit located within the near field of the measurement module by use of a second antenna that is arranged on the measurement module. The electromagnetic energy of the signal that is applied to the second antenna is transformed and temporarily stored by a reception unit which is arranged downstream of the second antenna. The first antenna of the transmission unit is put in an inactive state at least during the time the measured variables are sensed by the measurement module or the sensors.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01R Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 29, 2026 |
