Light guide with diffusive light input interface
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 29, 2014
Issued Date -
May 17, 2012
app pub date -
Oct 21, 2011
filing date -
Oct 21, 2011
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

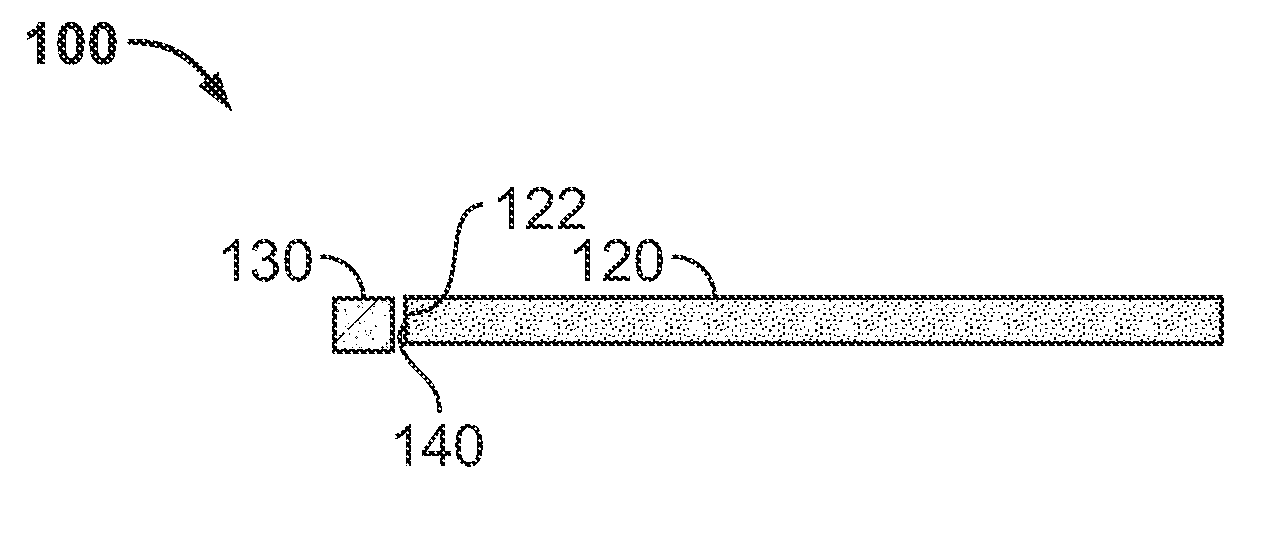

This disclosure provides systems, methods and apparatus for providing illumination by using a light guide to distribute light. In one aspect, the light guide has a surface, such as an edge, into which light is injected. The surface is treated to create a diffusive interface with a light source. For example, the surface may be subjected to abrasion to form a frosted surface that acts as the diffusive interface, or a diffusive structure may be attached to the edge, with the attached diffusive structure functioning as the diffusive interface. The diffusive interface diffuses light entering into the light guide, and can thereby increase the uniformity of light propagating within the light guide. The light guide may be provided with light turning features that redirect light out of the light guide. In some implementations, the redirected light may be applied to illuminate a display.
